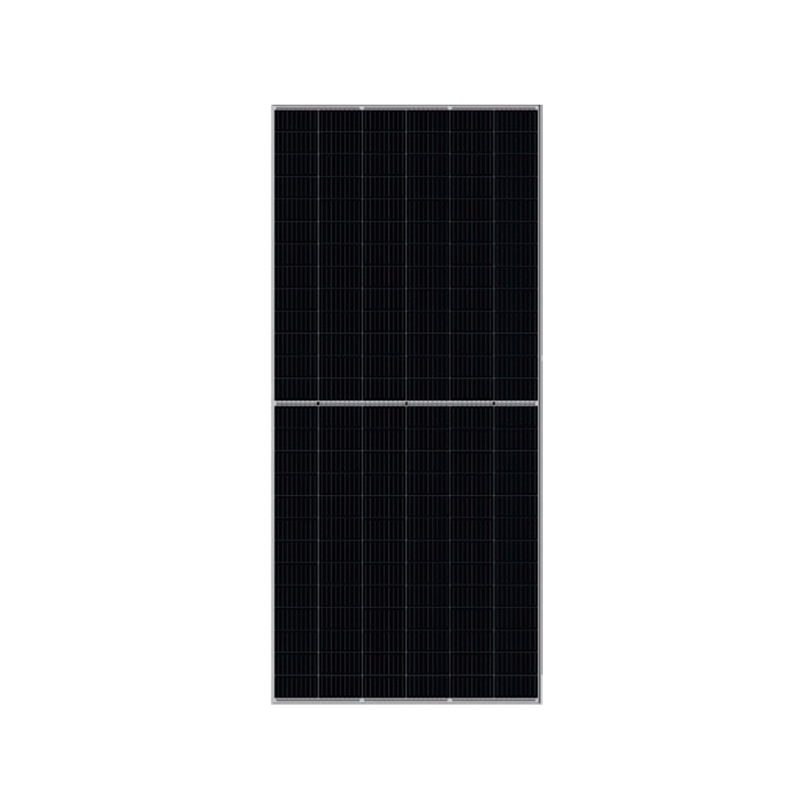

425 - 445 W 9BB half-cut mono perc 156 half-cell

  1. Home
  2. OEM Solar Panels

425 - 445 W 9BB half-cut mono perc 156 half-cell

  • Category: OEM Solar Panels
  • Parameter
    •

Product Description

POWER RANGE: 425 - 445 W

MAXIMUM EFFICIENCY:  20.4%

POSITIVE POWER TOLERANCE: 0~+3%

Performance at STC (Power Tolerance 0 ~ +3%)

Maximum Power (Pmax/W)

425
430
435
440
445

Operating Voltage (Vmpp/V)

43.4

43.5

43.6

43.7

43.9

Operating Current (Impp/A)

9.80

9.89

9.98

10.07

10.14

Open-Circuit Voltage (Voc/V)

53.0

53.1

53.2

53.3

53.5

Short-Circuit Current (Isc/A)

10.37

10.43

10.50

10.56

10.63

Module Efficiency ηm(%)

19.5

19.7

19.9

20.2

20.4

Performance at NMOT

Maximum Power (Pmax/W)

317
320
324
328
332

Operating Voltage (Vmpp/V)

40.4

40.6

40.7

40.9

41.1

Operating Current (Impp/A)

7.86

7.91

7.97

8.03

8.09

Open-Circuit Voltage (Voc/V)

49.3

49.4

49.5

49.6

49.8

Short-Circuit Current (Isc/A)

8.37

8.42

8.48

8.52

8.58

MECHANICAL SPECIFICATION

Cell Type

Monocrystalline

Cell Dimensions

158.75*158.75mm

Cell Arrangement

156 (6*26)

Weight

25kg (55.0Ibs)

Module Dimensions

2172*1002*35mm (85.51*39.45*1.38inches)

Cable Length

Portrait 300mm/Landscape 1200mm/Customized

Cable Cross Section Size

TUV: 4mm2 (0.006inches2 )/UL: 12AWG

Front Glass

3.2mm (0.13inches) AR Coating Tempered Glass

No. of Bypass Diodes

3/6

Packing Configuration (1)

30pcs/carton, 600pcs/40hq

Packing Configuration (2)

30+4pcs/carton, 640pcs/40hq

Frame

Anodized Aluminium Alloy

Junction Box

IP68

OPERATING CONDITIONS

Maximun System Voltage

1000V/1500V/DC(IEC)

Operating Temperature

-40°C ~ +85°C

Maximun Series Fuse

20A

Static Loading

5400pa

Conductivity at Ground

≤0.1Ω

Safety Class

II

Resistance

≥100MΩ

Connector

MC4 Compatible

TEMPERATURE COEFFICIENT

Temperature Coefficient Pmax

-0.36%/°C

Temperature Coefficient Voc

-0.26%/°C

Temperature Coefficient Isc

+0.043%/°C

NMOT

43±2°C
