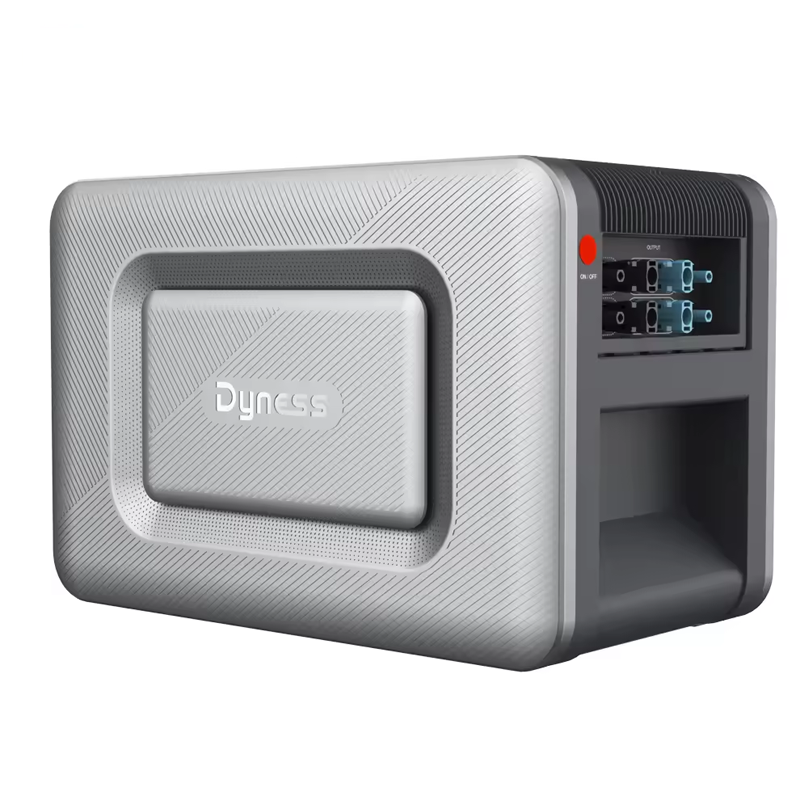

Dyness Junior Box-DE 1.6-6.4kWh LiFePO4 Battery for Balcony Solar System
- Category: Dyness
- Parameter
Product Description
Home Energy Storage Systems - Low voltage
Popular items
Junior Box - DE

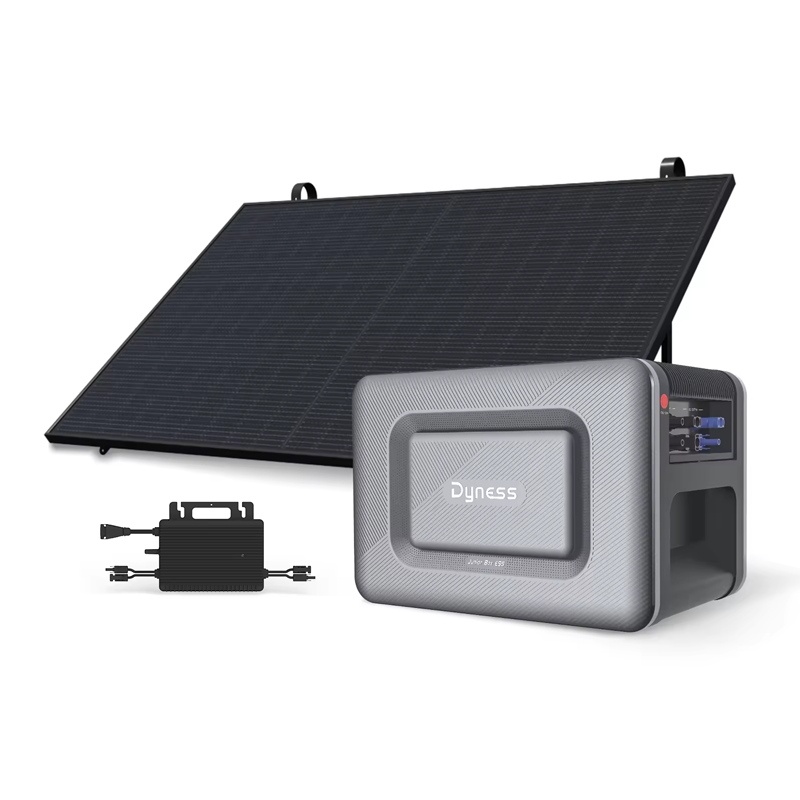

Balcony Solar System - LiFePO4 Battery+Micro Inverter+Solar Panel kit

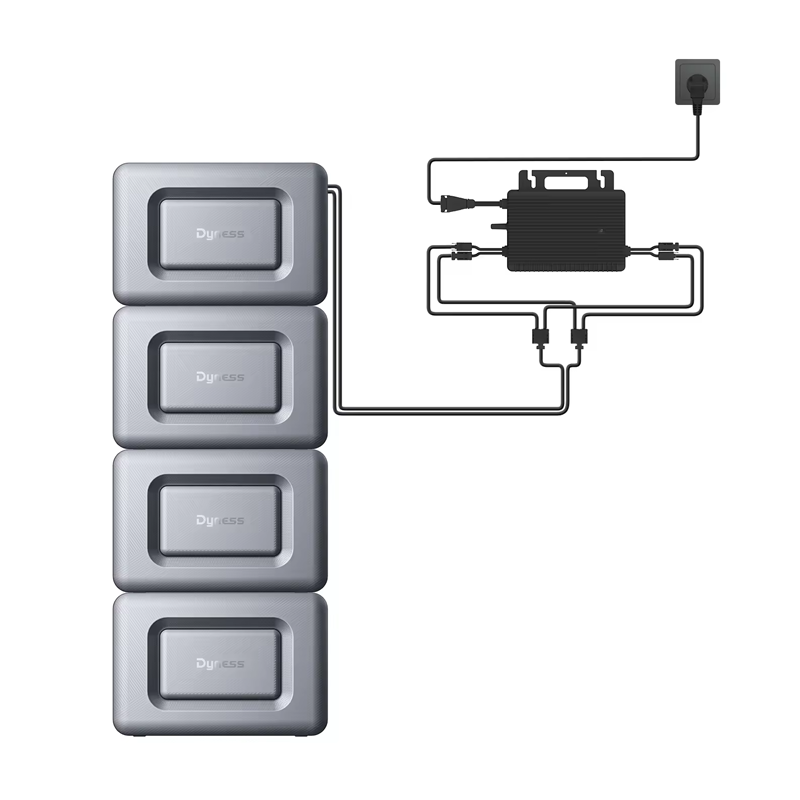

Junior Box has 1.6 kWh capacity per unit,Stackable module (Up to 4 batteries for 6.4 kWh) ensures continuous power supply to the home day and night for familiesof 3-5 members. 8000 charge cycles LiFePO4 batteries 15 years design life, 10 years warranty,and with an intelligent BMS (Battery Management System), it ensures balanced charging cycles
| Battery Type | LiFePO4 |
|---|---|
| System Energy | 1.6kWh |
| Dimensions | 420mm*283.5mm*245mm |
| Weight | 18kg |
| Protection Level | IP55 |
| Cycle Life | ≥8000 Cycles |
| Warranty | 10 Years |
| Charging Temp.Range | 0℃ to 55℃ |
| Discharging Temp.Range | -20℃ to 55℃ |
| APP | Yes |
| Communication | RS485 |
| Max.PV Input Power(W) | 1200W |
| Max.Input Voltage(V) | 65Vd.c. |
| MPPT Range(V) | 18-60Vd.c. |
| Max.Input/Output Currrent(A) | 30A |
| Max.Output(W) | 800W |

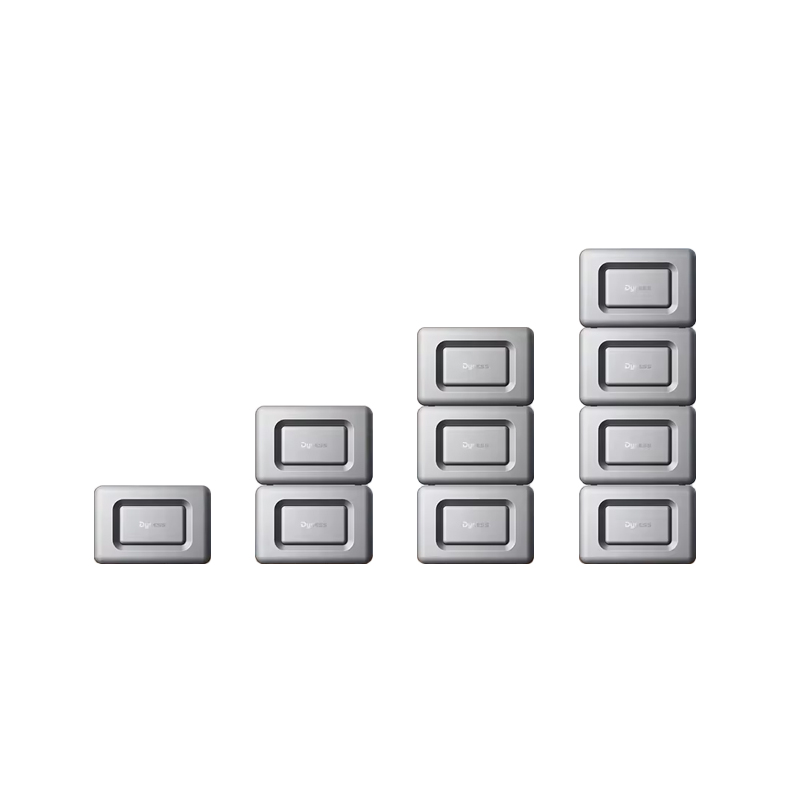

| Expansion Method | Stackable |
| Maximum Expansion Modules | 4 |
| Maximum expansion energy | 6.4kWh |
[1]：These data are based on average user scenarios of a balcony solar system in Germany: The electricity price is currently 0.40€/kWh, The annual electricity generation of Junior Box ESS is 876 kWh. 876 kWh × 90% self-consumption rate × 0.4€* per kWh = 315€
