Dyness Tower Series 7-21kWh High Voltage Stackable LiFePO4 Battery

  • Category: Dyness
  • Parameter
    •

Product Description

Home Energy Storage Systems - High voltage

Tower

The updated Tower Series is tailor-made for larger residential applications. Stackable design with self-adaptive modules, five energy choices of up to 21.31kWh with parallel connection available, advanced LiFePO4 technologies, over-the-air updates, high water proof level and good heat sink... Whatever you need, DYNESS Tower Series is there to meet more of your requirements.

ModelTower T7Tower T10Tower T14Tower T17Tower T21
Battery Module TypeLiFePO4LiFePO4LiFePO4LiFePO4LiFePO4
Battery Module Quantity23456

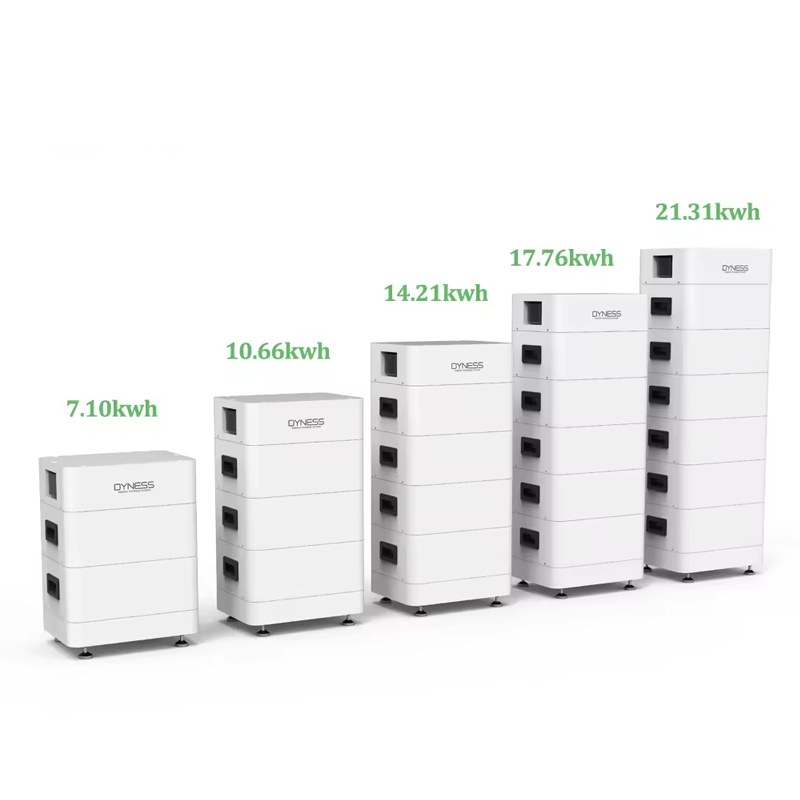

Usable Energy7.10 kWh10.66 kWh14.21 kWh17.76 kWh21.31 kWh
Operating Voltage168 ~219V252 ~ 328V336 ~ 438V420 ~ 547V504 ~ 657V
Nominal Voltage192V288V384V480V576V
Nominal Capacity37Ah37Ah37Ah37Ah37Ah
Max. Continuous Charge/Discharge Power [1]4.26 kW6.39 kW8.52 kW10.65 kW12.78 kW
Recommended Depth of Discharge (DOD)95%95%95%95%95%
Dimensions [W*D*H]504*380*700 mm504*380*900 mm504*380*1100 mm504*380*1300 mm504*380*1500 mm
Net Weight [kg]105 kg146 kg187 kg228 kg269 kg
Charging Temperature Range0~50℃
Discharging Temperature Range-10~50℃
CommunicationCAN/RS485/RS232
Cycle life [2]≥6000 Cycles
Protection LevelIP54
ColorWhite
AlarmsOvercharge/Over discharge/Overcurrent/Over temperature/Short Circuit
ProsCan be used in both off-grid and hybrid setups, compact design, modular expansion
Battery Module NameHV9637
ExpansionMax. 12 towers can be connected in parallel
CertificationUN38.3/CE-EMC/IEC62040/IEC62619/IEC62477/IEC60730/IEC63056/UKCA/CEC Accredited/UL1973/VDE2510-50 undergoing

[1] Maximum Continuous Discharge/Charge Power when communicating with inverter is 0.6C

[2] Test conditions: 0.2C Charging & Discharging. @25℃, 95% DOD
