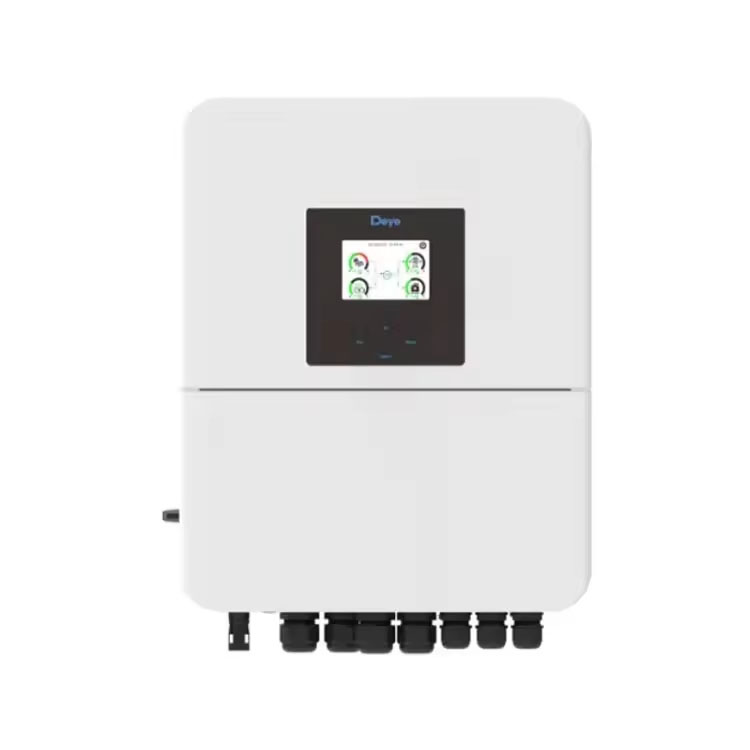

Deye SUN-3/3.6/5/6K-SG04LP1-EU-SM1/2 Hybrid Inverter

  • Category: Deye
  • Parameter
    •

Product Description

SUN-3/3.6/5/6K-SG04LP1-EU-SM1/2 | 3-6kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

  • Colorful touch LCD, IP65 protection degree

  • AC couple to retrofifit existing solar system

  • Max. 16 pcs parallel for on-grid and off-grid

    operation; Support multiple batteries parallel

  • Max. charging/discharging current of 140A

  • 6 time periods for battery charging/discharging

  • Support storing energy from diesel generator

ModelSUN-3K-SG04LP1-24-EU-SM1
SUN-3K-SG04LP1-EU-SM1SUN-3.6K-SG04LP1-EU-SM2SUN-5K-SG04LP1-EU-SM2SUN-6K-SG04LP1-EU-SM2
Battery Input Data
Battery TypeLead-acid or Lithium-ion
Battery Voltage Range(V)20-3040-60
Max.Charging Current(A)1407090120135
Max.Discharging Current(A)1407090120135
Charging Strategy for Li-ion BatterySelf-adaption to BMS
Number of battery input1
PV String Input Data

Max. PV Access Power (W)

6000600072001000012000
Max PV Input Power（W）45004500540075009000
Max PV Input Voltage（V）500
Start-up Voltage（V）125
MPPT Voltage Range（V）150-425
Rated PV Input Voltage(V)370
Max Input Short-Circuit Current（A）2727+27
Max Operating PV Input Current（A）1818+18
No.of MPP Trackers/No.of String Per MPP Tracker1/12/1+1
AC Input/Output Data
Rated AC Input/Output Active Power（W）3000360050006000
Max AC Input/Output Apparent Power （VA）3300396055006600
Peak Power (off-grid)（W）2 times of rated power,10s
Rated AC Input/Output Current（A）13.7/13.116.4/15.722.8/21.827.3/26.1
Max AC Input/Output Current（A）15/14.418/17.325/2430/28.7
Max Continuous AC Passthrough (grid to load)（A）3540
Rated Input/Output Voltage/Range(V)220V/230 0.85Un-1.1Un
Grid Connection FormL+N+PE
Rated Input/Output Grid Frequency/Range50Hz/45Hz-55Hz     60Hz/55Hz-65Hz
Power Factor Adjustment Range0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi<3% (of nominal power)
DC Injection Current<0.5%ln
Efficiency
Max Efficiency97.6%
Euro Efficiency96.5%
MPPT Efficiency＞99%
Equipment Protection
Integrated

DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,

AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,

Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),

Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,

DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level

Surge Protection LevelTYPE II(DC),TYPE II(AC)
Interface
Communication InterfaceRS485/RS232/CAN

Monitor Mode

GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range-40 to+60℃,＞45℃ Derating
Permissible Ambient Humidity0~100%
Permissible Altitude2000m
Noise＜30
Ingress Protection(IP) RatingIP 65
Inverter TopologyNon-Isolated
Over Voltage CategoryOVC II(DC),OVC III(AC)
Cabinet size（W*H*D）[mm]376*470*241.5（Excluding connectors and brackets）
Weight[kg]17.6
19
Warranty5 Years/10 Years

the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy

Type Of Coolingnatural cooling
Grid RegulationIEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105
Safety EMC/StandardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
