Product Description

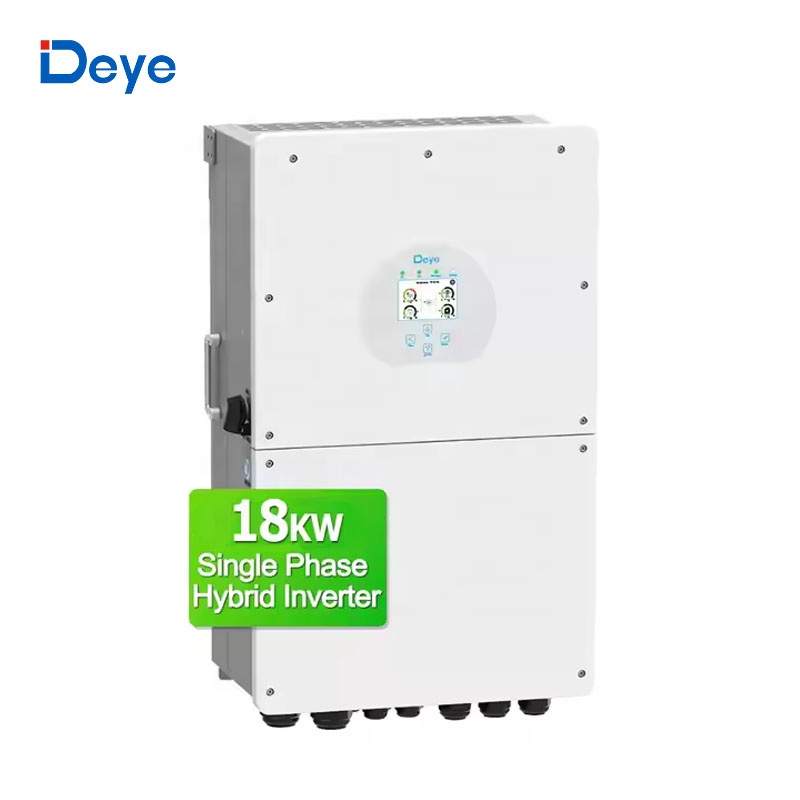

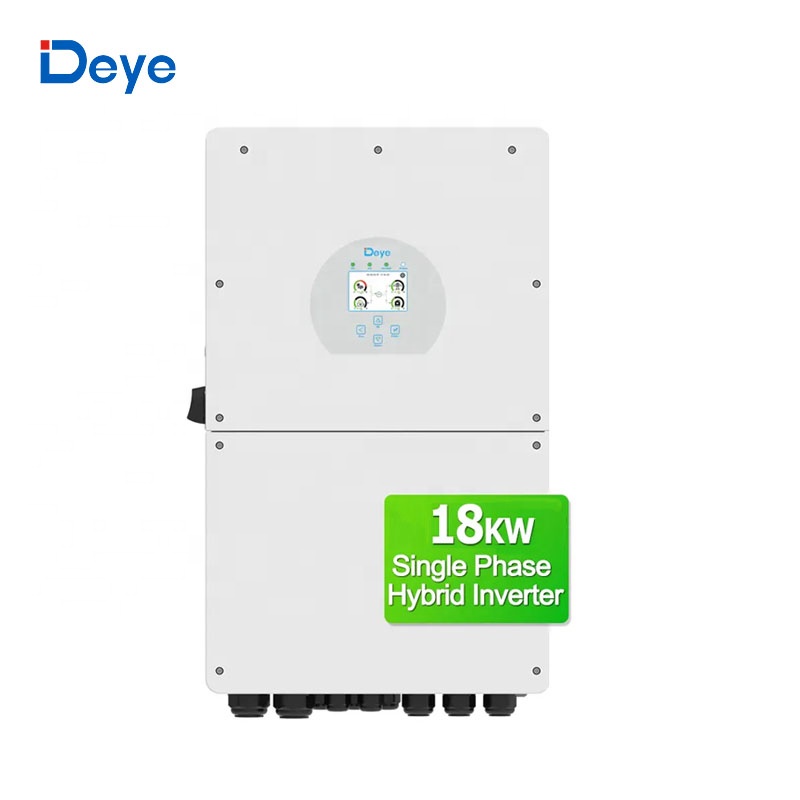

SUN-18K-SG01LP1-EU | 18KW | Single Phase | 2 MPPT | Hybrid Inverter

Biggest Power Single Phase Hybrid Inverter in the Market !

Higher yields / Safe & Reliable / Smart / User-friendly

SUN-18K-SG01LP1-EU, hybrid inverter, is suitable for residential and light commercial use, maximizing the self-consumption rate of solar energy and increasing your energy impendence.   During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 12/14/16K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.

It is equipped with RS485 / CAN port for battery communication

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shut down immediately when the accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.

• Colorful touch LCD, IP65 protection degree
• 6 time periods for battery charging/discharging
• Max. charging/discharging current of 290A
• Max.16pcs parallel
• DC couple and AC couple to retrofit existing solar system
• Support storing energy from diesel generator
• 48V low voltage battery, safe and reliable
• Unique Smart Load application and Grid peak shaving function
• 4ms fast transfer from on-grid to off-grid mode, ensuing the Non-inverter type air conditioner works well
