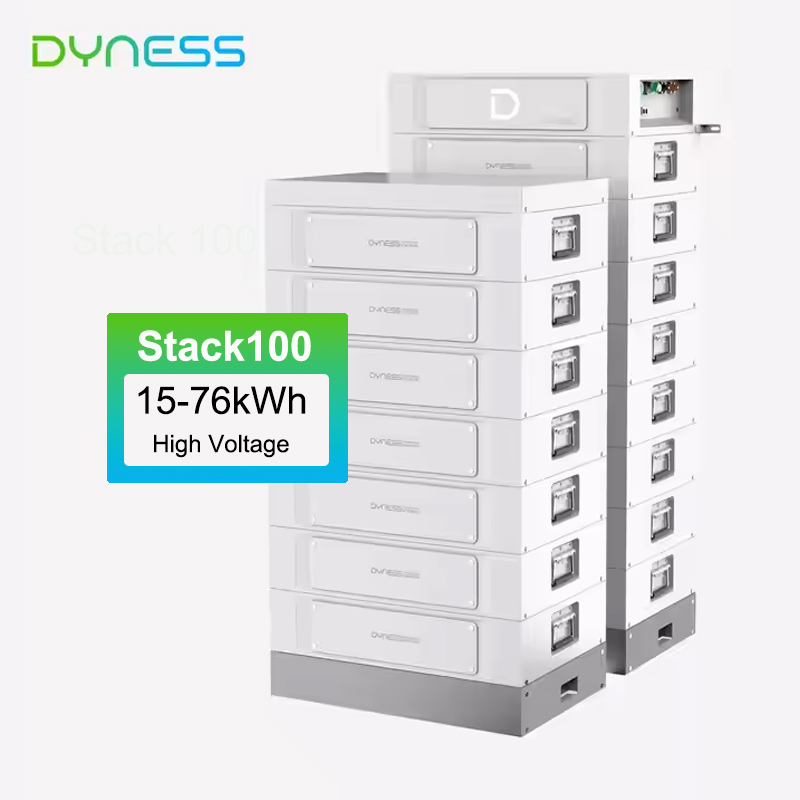

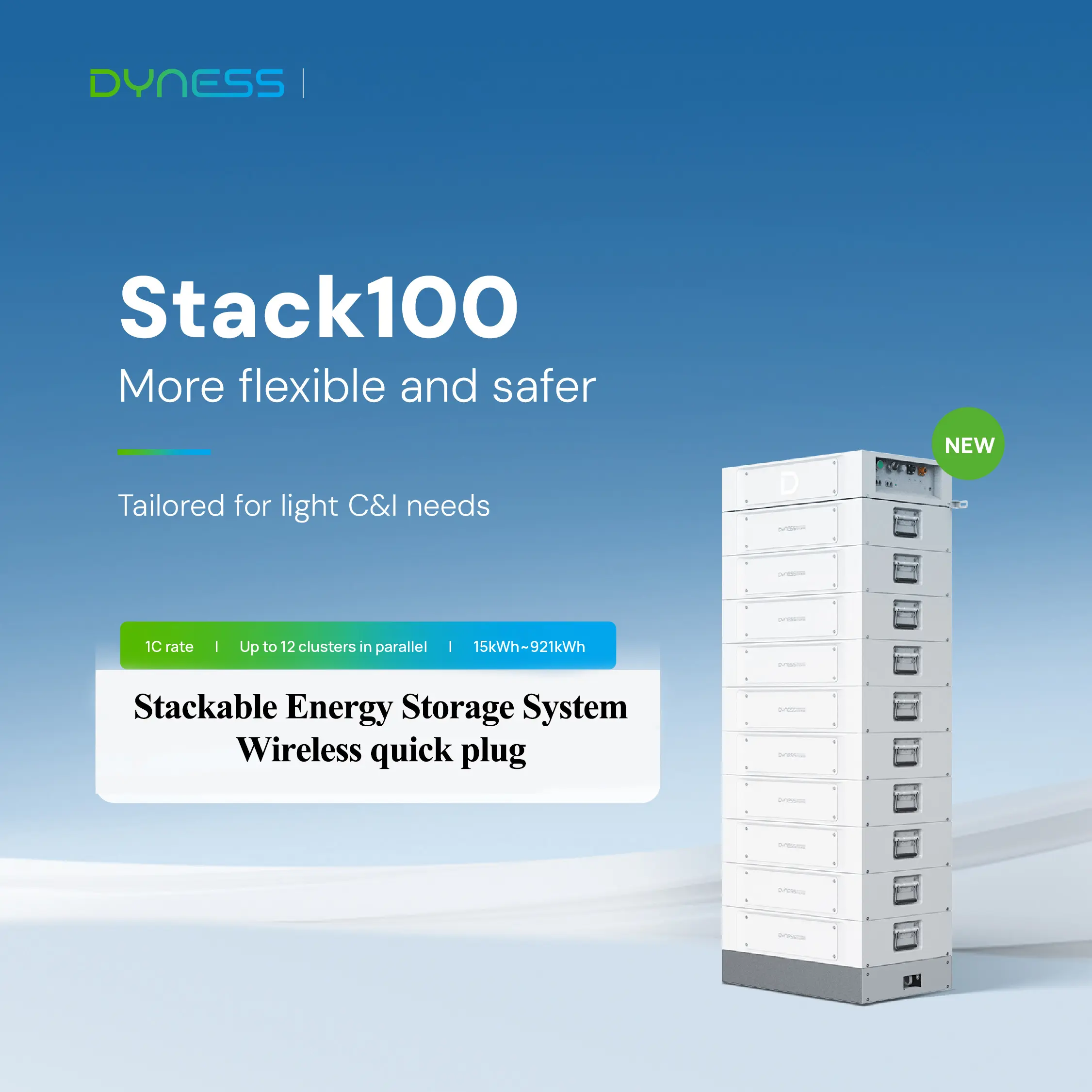

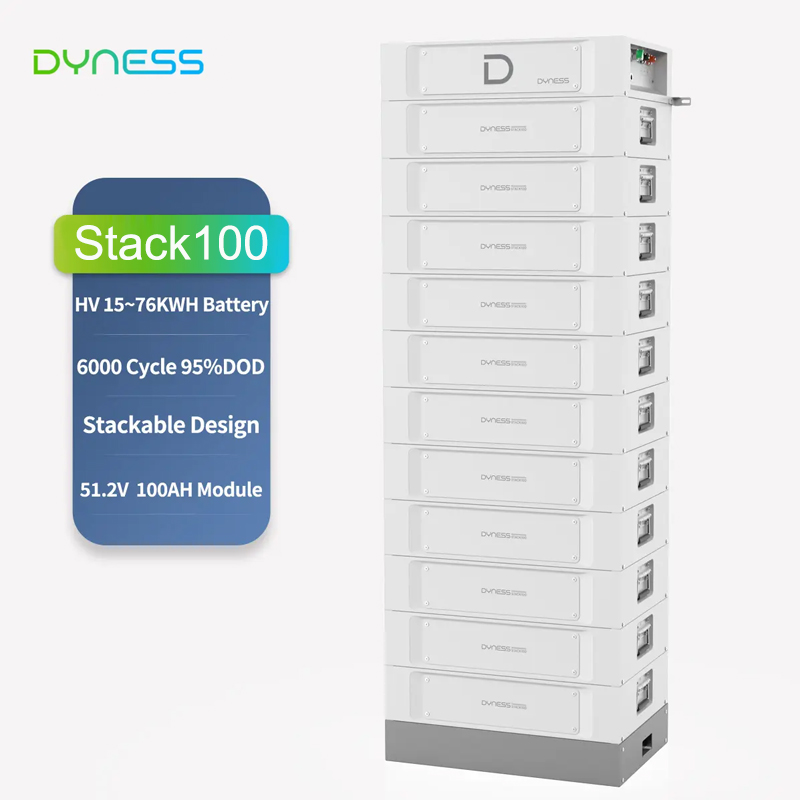

Dyness Stack100 High Voltage Lithium Ion Battery C&I Energy Storage System
- Category: Dyness
- Parameter
Product Description
Stack100
- 15.36-76.8kWh
- Max expandable to 921.6kWh
The Dyness STACK100 energy storage system is widely used in energy storage sector. It adopts modular design and can be used for residential and C&I applications. The reliable LiFeP04 technology ensures maximum safety and a longer life cycle.
Flexible Expansion
Up to 12 clusters in parallel, 15KWh--921KWh capacityUltra Safe
Intelligent fire extinguishing system, react within 5 seconds.1C Rate
Suitable for grid frequency regulation, charging stations and other scenarios, cost saving.Easy Installation
0 wiring, rackless free stacking, plug-and-play, one cluster installation in 30min.
| Product Model | STACK100 |
| Battery Module Type | LiFePO4 |
| Module Voltage/Capacity | 51.2V/100Ah |
| System Energy Range | 15.36-76.8kWh |
| Cycle Life | ≥8000 cycles / 10 Years |
| Signal Module Weight | 47Kg |
| Max. Single Cluster Dimension | 591*390*1700mm |
Modular Design, Plug-and-Play
Frameless stacking cuts space & costs.
47kg module, 30-min quick install.
Built-in square steel frame ensures stable load-bearing.
Scalable, Multi-scenario
Supports 12-cluster parallel.
15kWh-921kWh energy range.
restaurants, warehouses, farms, and more.
3-year modular flexibility, scalable for cost savings.
