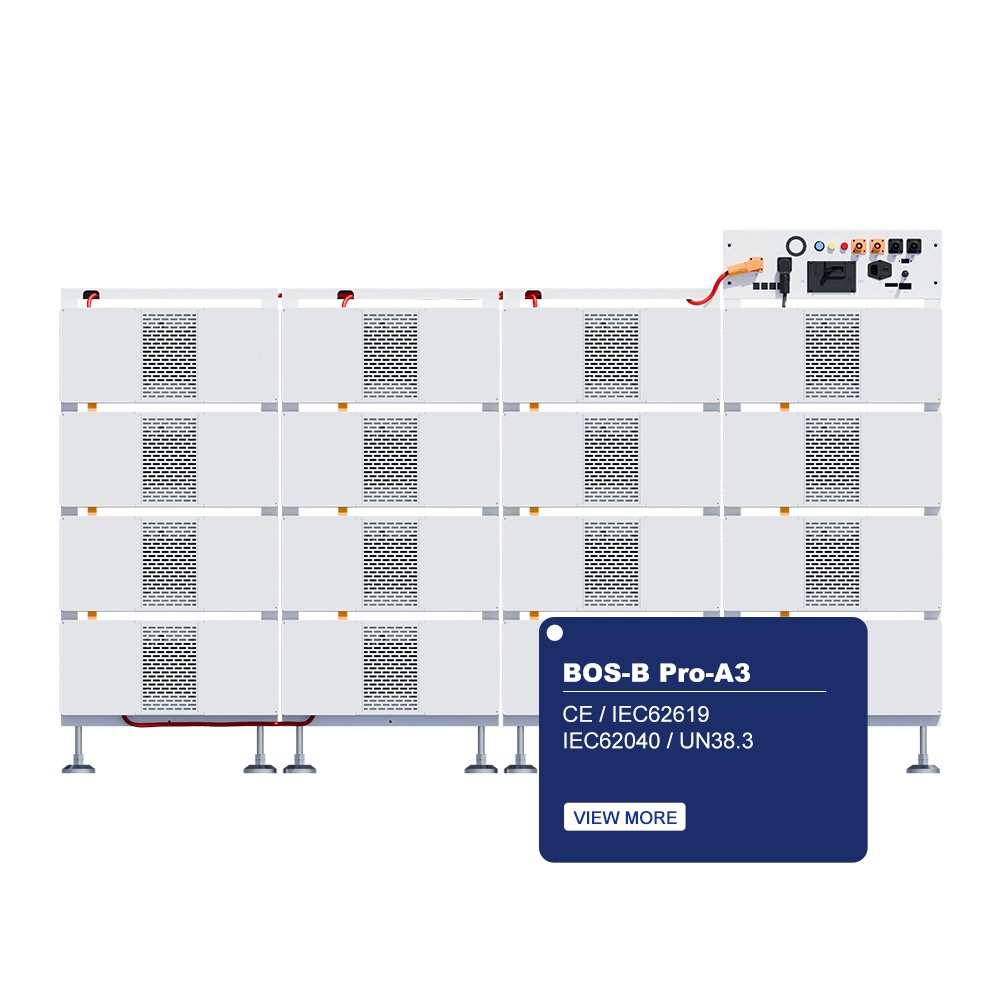

Commercial&Industrial Use Deye High Voltage BOS-B Pro-A3 (AS, AF, LATAM, EU, AU)

  • Category: Deye
  • Parameter
    •

Product Description

  • Modular & Scalable: 5–16 battery modules in series; PCS scalable from 100 kW/125 kW up to 2.5 MW
  • High Energy: 257.23 kWh nominal / 231.51 kWh usable (recommended 90% DoD)
  • Fast Switching: STS seamless transfer ≤20 ms; independent high‑power paths for grid, diesel and load
  • High Efficiency: PCS ≈ 98.5% efficiency; MPPT performance >99%
  • Robust Battery Module: 16.08 kWh per module, 51.2 V, 314 Ah

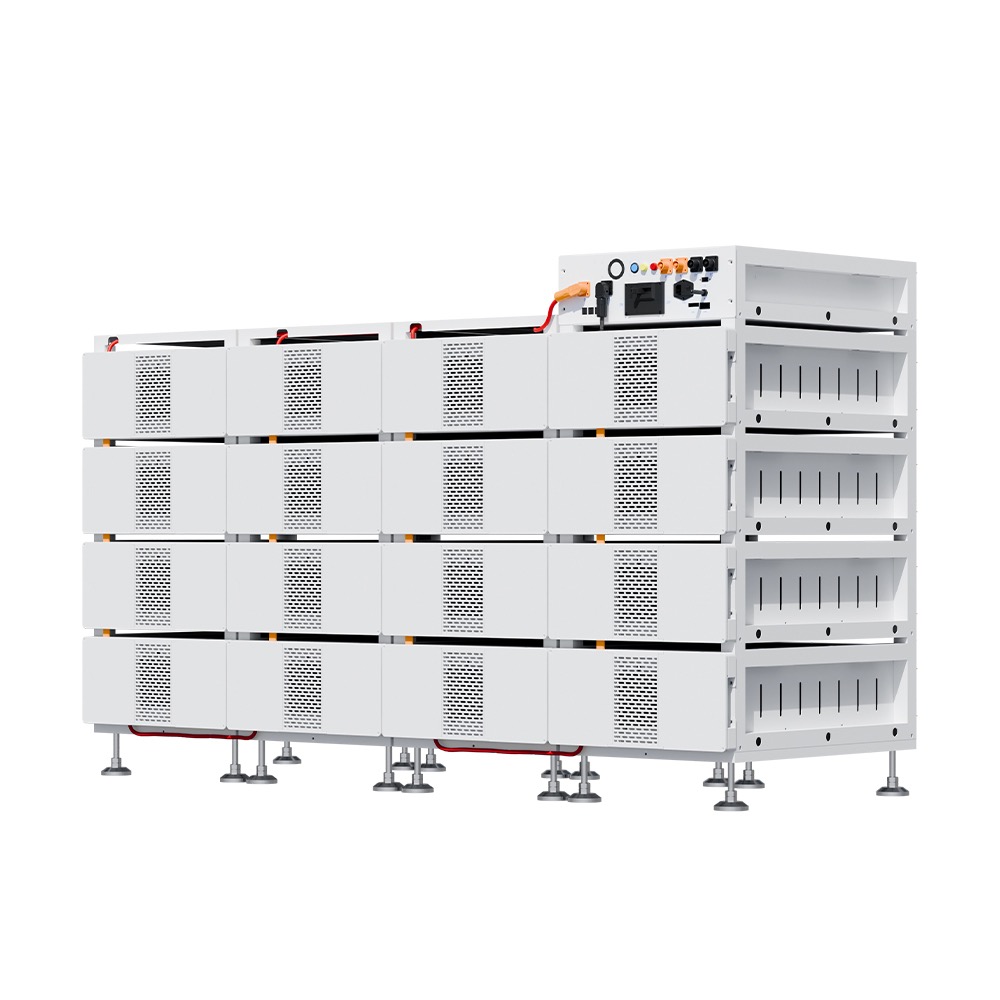

  • Rack-Mounted Design: Compact footprint (2150 × 1305 × 800 mm), system weight ≈2240 kg

  • Description



    Intelligent Control

    • Peak-valley mgmt, anti-backflow,
    • overload protection
    • Load tracking, demand control, backup power, phase separation

    Reliable

    • Operating temp: -20℃ to 55℃
    • Operate up to 3000m altitude
    • 1.1x overload capacity
    • Balancing solutions extend battery life
    • Triple auxiliary power design for stable supply

    Easy Maintenance

    • 5U Standard Chassis
    • User Interface & Bluetooth App
    • USB & Cloud Upgrades
    • TCP Protocol for BMS
    • Fault Signal Input Support

    Scalable

    • Support up to 16 units in parallel, maximum 2.3MW/4.1MWh

    Multi-Fusion

    • Integrated EMS, PCS, and BMS
    • Support expansion of MPPT module
    • Support off-grid backup

    Safer

    • LFP batteries
    • Support aerosol fire extinguishing
    ModelBOS-B Pro-A3
    Battery Module Energy(kWh)16.08
    Battery Module Nominal Voltage(V)51.2
    Battery Module Capacity(Ah)314
    Module Weight Approximate(kg)126
    Battery Module Q’ty in Series (Optional)5~16
    Matching ModePCS or Hybrid Inverter14-15 units for PCS on-grid applications, 15 units for PCS off-grid applications, 5-15 units for hybrid inverter systems
    PCS+MPPT16 units (off-grid) for MPPT Open-Circuit Voltage ≤880V;15 units (off-grid) for MPPT Open-Circuit Voltage ≤750V
    14 units (off-grid) for MPPT Open-Circuit Voltage ≤700V
    Battery Model NumberBOS-B80 Pro-A3BOS-B96 Pro-A3BOS-B112 Pro-A3BOS-B128 Pro-A3BOS-B144 Pro-A3BOS-B160 Pro-A3BOS-B176 Pro-A3BOS-B192 Pro-A3BOS-B208 Pro-A3BOS-B224 Pro-A3BOS-B240 Pro-A3BOS-B256 Pro-A3
    Battery Module Q’ty in Series (Optional)5678910111213141516
    System Nominal Voltage(V)256307.2358.4409.6460.8512563.2614.4665.6716.8768819.2
    System Operating Voltage(V)208-292.9249.6-350.4291.2-408.8332.8-467.2374.4-525.6416-584457.6-642.4499.2-700.8540.8-759.2582.4-817.6624-876665.6-934.4
    System Energy(kWh)80.396.4112.5128.6144.6160.7176.8192.9208.9225241.1257.2
    System Usable Energy(kWh)72.2786.76101.25115.74130.14144.63159.12173.61188.01202.5216.99231.48
    Max DC Power(kW)46.0855.29664.51273.72882.94492.16101.376110.592119.808129.024138.24147.456
    Max.Charge/Discharge Current(A)180
    Other Parameter
    Operating Temperature (°C)Charge：0 ~ 55           Discharge：-20 ~ 55
    Storage Temperature (°C)0 ~ 35
    Thermal ManagementSmart fan cooling
    LCD DisplaySOC / Fault Code
    Status IndicatorYellow：Battery High Voltage Power On Red：Battery System Alarm
    Communication PortTCP / RS485 / CAN
    Communication With BMSCAN
    Humidity5% ~ 85%
    Altitude≤3000m
    IP Rating of EnclosureIP20
    Noise (dB)TBD
    System Dimension (W × H × D, mm)1067 × 1305 × 8001608 × 1305 × 8002150 × 1305 × 800
    System Weight Approximate (kg)7588841010113613101436156216881862198821142240
    Installation LocationRack Mounted
    Recommend Depth of Discharge90%
    Cycle Life25±2°C, 0.5C / 0.5C, EOL70%≥6000
    Warranty Period10 years
    CertificationCE / IEC62619 / IEC62040 / UN38.3
