Jinko 425-445W MONO-FACIAL MODULE Tiger Neo N-type 54HL4R-(V) Solar Panel
- Category: Jinko Solar Panels
- Features
Product Description

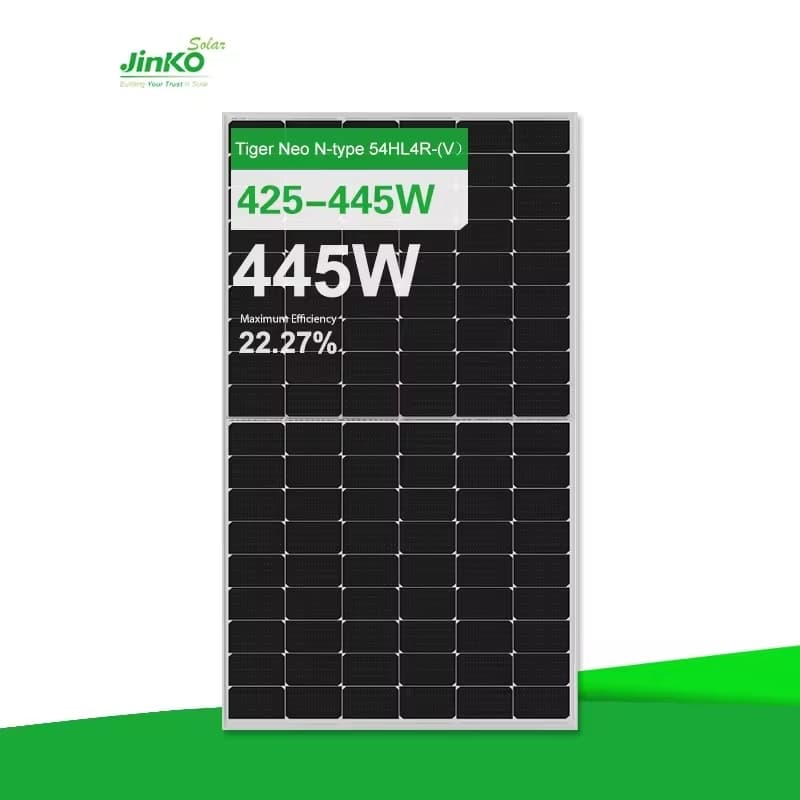

425-445W MONO-FACIAL MODULE Tiger Neo N-type 54HL4R-(V) Solar Panel
The Jinko Solar Tiger Neo N-type 54HL4R-B 425-445W Mono-Facial Solar Panel adopts advanced N-type TOPCon cell technology and high-efficiency 108-cell design, delivering excellent power output, reliability, and long-term energy yield. With module efficiency up to 22.27%, this solar panel provides stable performance for residential, commercial, and distributed solar applications.
Featuring SMBB (Super Multi Busbar) technology and Hot 2.0 technology, the Tiger Neo module improves light utilization, current collection, and resistance against LID/LETID degradation. Its enhanced mechanical strength, PID resistance, and excellent environmental durability make it suitable for various climate conditions.
Product Features
● Advanced N-Type TOPCon Technology
N-type cell technology offers higher efficiency, lower degradation, and improved long-term power generation performance compared with conventional P-type modules.
● High Power Output up to 445W
The module delivers a power range of 425W-445W with module efficiency up to 22.27%, maximizing energy production within limited installation areas.
● SMBB Technology
Super Multi Busbar technology improves current collection capability, reduces internal resistance, and enhances module reliability and power output.
● Hot 2.0 Technology
Optimized N-type cell technology provides better reliability and lower LID (Light Induced Degradation) and LETID (Light and Elevated Temperature Induced Degradation) performance.
● Excellent Durability
The module is certified to withstand harsh environmental conditions, supporting up to 4000Pa wind load and 6000Pa snow load. It also features strong PID resistance and salt mist/ammonia resistance.
● Long-Term Warranty
25-year product warranty
30-year linear power warranty
Annual degradation rate: 0.40%
Specifications
Electrical Characteristics (STC)
| Model | JKM425N-54HL4R-B | JKM430N-54HL4R-B | JKM435N-54HL4R-B | JKM440N-54HL4R-B | JKM445N-54HL4R-B |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 425W | 430W | 435W | 440W | 445W |
| Module Efficiency | 21.27% | 21.52% | 21.77% | 22.02% | 22.27% |
| Maximum Power Voltage (Vmp) | 32.37V | 32.58V | 32.78V | 32.99V | 33.19V |
| Maximum Power Current (Imp) | 13.13A | 13.20A | 13.27A | 13.34A | 13.41A |
| Open Circuit Voltage (Voc) | 38.95V | 39.16V | 39.36V | 39.57V | 39.77V |
| Short Circuit Current (Isc) | 13.58A | 13.65A | 13.72A | 13.80A | 13.87A |
Mechanical Characteristics
| Item | Specification |
|---|---|
| Cell Type | N-type Monocrystalline |
| Cell Arrangement | 108 Cells (6×18) |
| Module Dimensions | 1762 × 1134 × 30 mm |
| Weight | 22 kg |
| Front Glass | 3.2mm Tempered Glass with Anti-Reflection Coating |
| Frame | Anodized Aluminium Alloy |

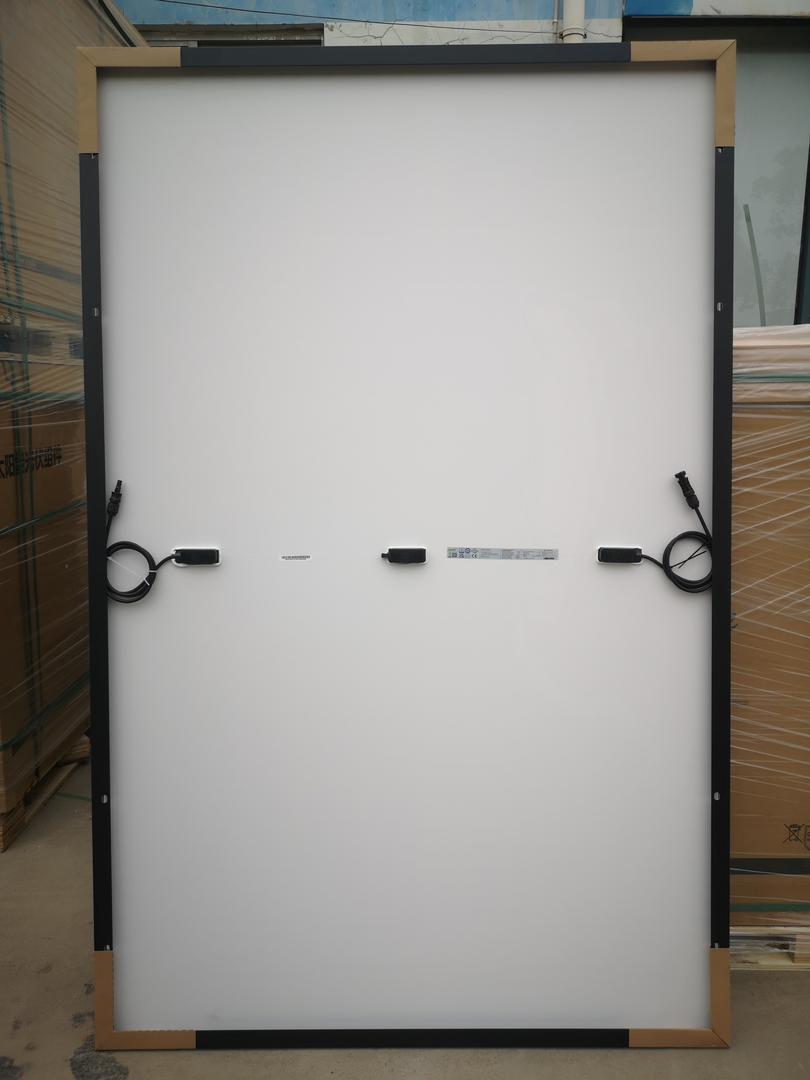

| Junction Box | IP68 Rated |
| Cable | 4.0 mm² Output Cable |
| Operating Temperature | -40℃ ~ +85℃ |
Operating Parameters
| Parameter | Value |
|---|---|
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 25A |
| Power Tolerance | 0 ~ +3% |
| Temperature Coefficient of Pmax | -0.29%/℃ |
| Temperature Coefficient of Voc | -0.25%/℃ |
| Temperature Coefficient of Isc | 0.045%/℃ |
| NOCT | 45 ± 2℃ |
