Deye ESS MS-MPPT200-2 PV Cabinet Commercial Industrial Energy Storage Solution
- Category: C&I ESS Solution
- Features
Product Description

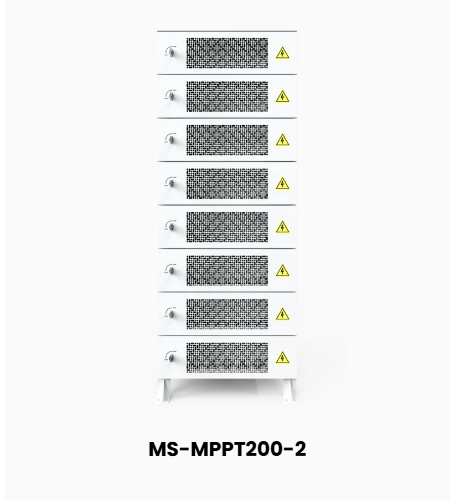

Deye MS-MPPT200-2 200kW MPPT Solar Charge Controller for C&I Energy Storage Systems
The Deye MS-MPPT200-2 is a high-performance 200kW MPPT solar charge controller designed for commercial and industrial (C&I) energy storage applications.
As a key component in Deye’s modular energy storage solution, the MS-MPPT200-2 is designed to optimize photovoltaic energy conversion by efficiently managing solar power input and delivering stable DC energy to high-voltage battery systems.
The device supports integration with large-scale PV systems and energy storage platforms, providing efficient solar energy harvesting, intelligent power management, and reliable operation for commercial solar storage projects.
The MS-MPPT200-2 is suitable for applications requiring high-capacity solar charging management, including:
Commercial and industrial solar storage systems
PV + battery energy storage projects
Microgrid energy solutions
Renewable energy management systems
With advanced MPPT control technology and intelligent monitoring functions, the MS-MPPT200-2 helps maximize solar generation efficiency while improving the overall performance and reliability of energy storage systems.
Key Highlights
high-power MPPT solar controller
Designed for commercial & industrial ESS applications
Supports efficient PV energy harvesting
Compatible with Deye modular energy storage solutions
Intelligent monitoring and protection functions
Optimized for high-voltage battery storage systems
Technical Specifications
| Model | MS-MPPT200-2 |
|---|---|
| PV String Input Data | |
| MAX.PV Access Power (kW) | 200 |
| Max. PV Input Power (kW) | 160 |
| Max. PV Input Voltage (V) | 800 |
| Start-up Voltage (V) | 200 |
| MPPT Voltage Range (V) | 180-750 |
| Full Load MPPT Voltage Range (V) | 450-750 |
| Rated PV Input Voltage (V) | 600 |
| Max. Operating PV Input Current (A) | 40+40+40+40+40+40+40+40 |
| Max. Input Short-Circuit Current (A) | 60+60+60+60+60+60+60+60 |
| No. of MPPT Trackers | 8 |
| Efficiency | |
| Max. Efficiency | >99% |
| MPPT Efficiency | >99.9% |
| Equipment Protection | |
| DC input reverse protection | YES |
| DC ARC protection | Optional |
| Anti-PID (Potential Induced Degradation) | Optional |
| DC Switch | YES |
| Surge Protection Level | TYPE II |
| General Data | |
| Ingress Protection (IP) Rating | IP20 (MPPT IP65) |
| Cabinet Size (W×H×D) (mm) | 543×198×700 |
| Weight (kg) | 70 |
| Type of Cooling | Intelligent air cooling |
| Safety EMC/Standard | IEC/EN 62109-1 |
| DC Output Data | |
| DC Output Voltage Range (V) | 630-1000 |
| Max. DC Output Current (A) | 200 |
