Deye Ess SE-F16 Stackable /Wall-Mounted 16kwh 51.2v 300ah Lifepo4 Battery
- Category: LiFePO4 Battery
- Features
Product Description

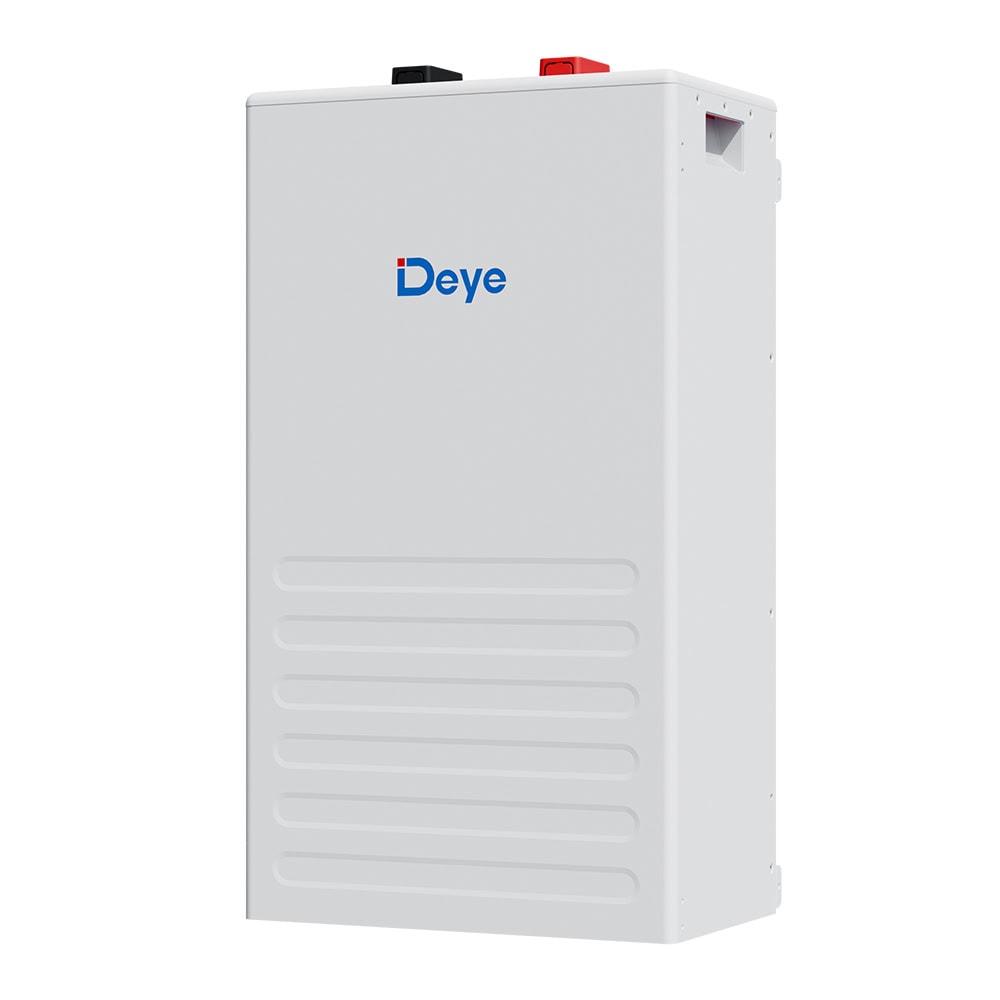

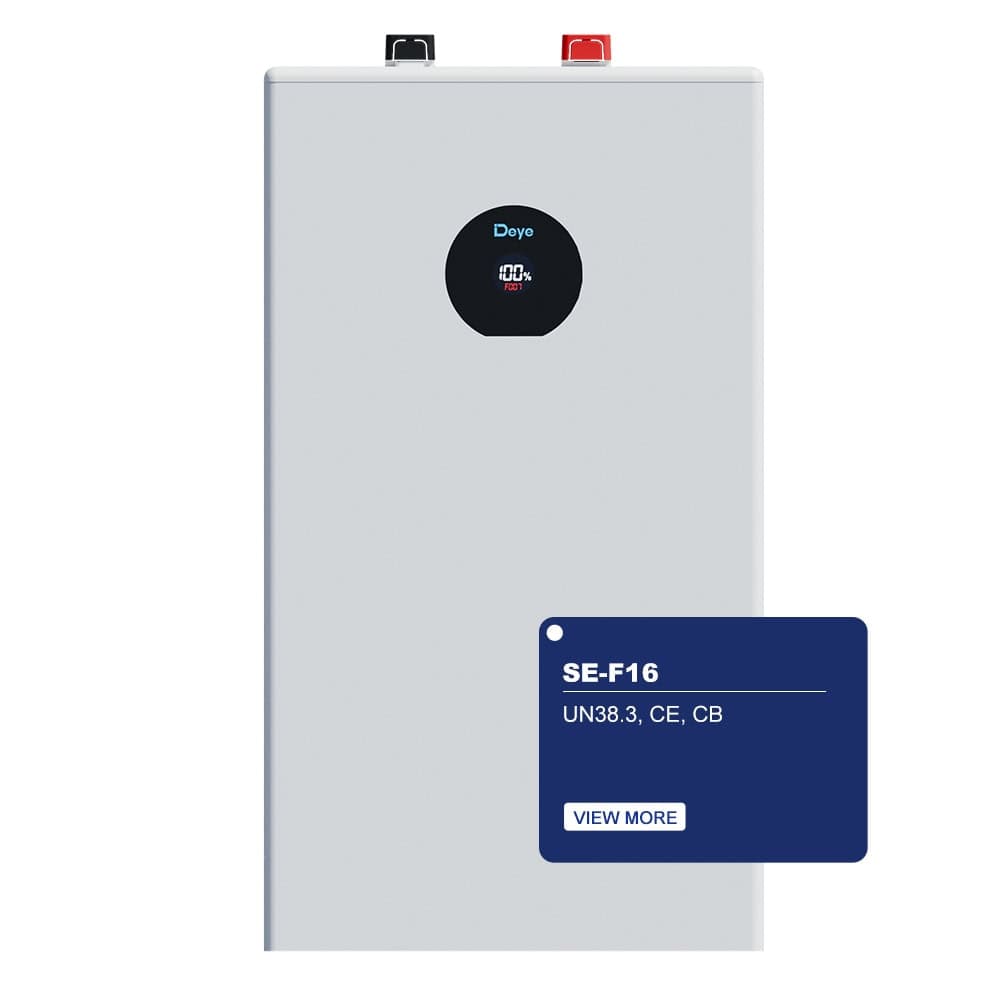

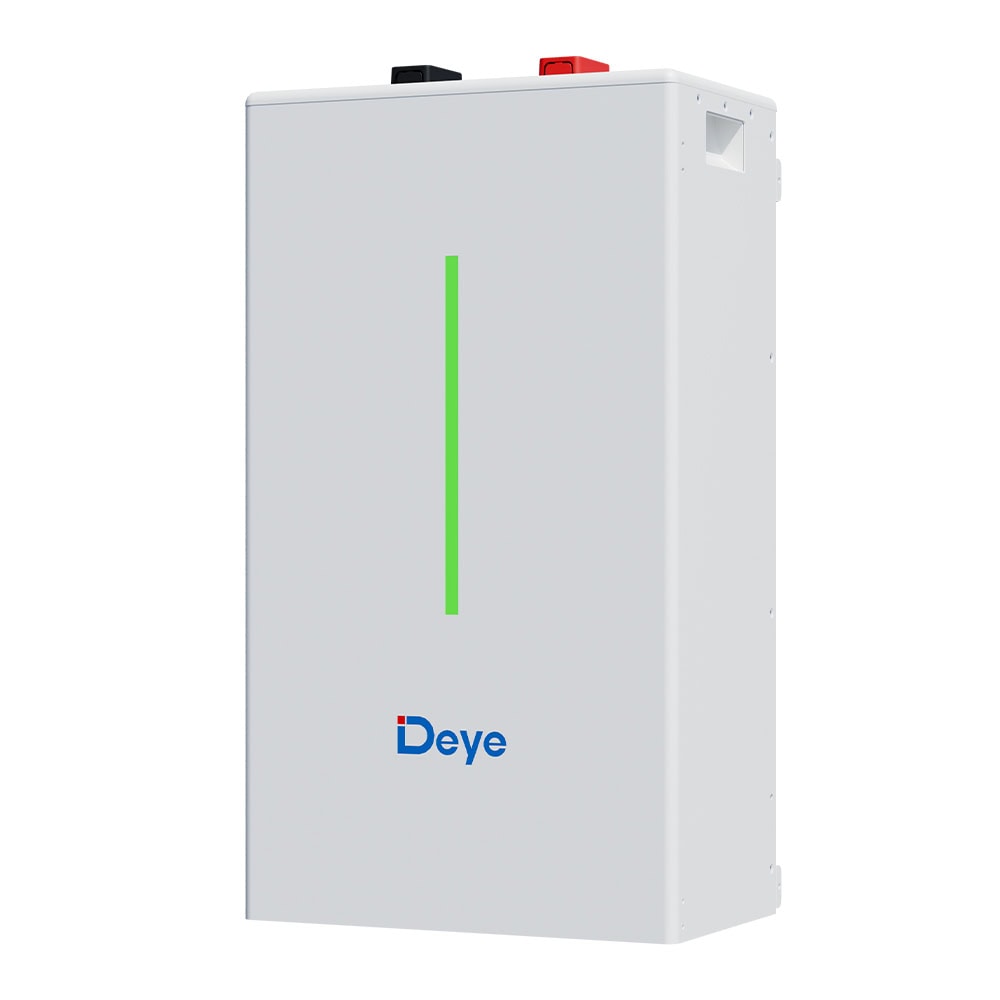

The Deye ESS SE-F16 is a high-performance 16kWh LiFePO₄ battery storage system designed for residential and commercial energy storage applications. With a 51.2V 300Ah capacity, it provides reliable and efficient energy storage to support daily power needs and renewable energy systems.
High Performance & Long Lifespan
Equipped with advanced lithium iron phosphate (LiFePO₄) battery technology, the SE-F16 delivers excellent durability with over 6000 charge cycles, ensuring a long operational lifespan and stable performance. It supports a high continuous discharge current of up to 230A, providing powerful and consistent energy output for various applications.
Advanced Safety Protection
The battery integrates an intelligent Battery Management System (BMS) with an active fuse, offering multiple layers of protection including battery monitoring, safety control, and system optimization. This advanced protection design ensures reliable operation and enhances overall system security.
Flexible Expansion & Installation
Designed for scalability, the Deye SE-F16 supports up to 64 units connected in parallel, making it suitable for both small residential systems and larger energy storage projects. Its versatile installation options, including wall-mounted, floor-mounted, and stackable configurations, allow flexible deployment in different spaces.
Smart Monitoring & Easy Management
With multiple communication options including Bluetooth app, CAN 2.0, and RS485, users can conveniently monitor battery status, performance, and system information in real time. The intelligent monitoring capability makes energy management simpler, smarter, and more efficient.
Key Advantages
1. Comprehensive Safety Protection
The SE-F16 is equipped with an advanced Battery Management System (BMS) featuring an active fuse and MOSFET protection technology. This intelligent safety design helps reduce energy loss by up to 50%, improves high-temperature resistance, and ensures reliable, stable, and secure battery operation.
2. High Performance & Efficient Energy Utilization
Supporting up to 1C charging and 1.2C discharging, the battery delivers strong power output and improved energy efficiency. It is designed to maintain excellent performance even in demanding operating conditions.
3. High Energy Density Design
The integrated PACK design optimizes the internal structure, significantly reducing line losses while increasing energy density. It enables more energy storage capacity within a compact and space-saving design.
4. Flexible System Expansion
The SE-F16 supports up to 64 units connected in parallel, allowing users to easily expand their energy storage capacity according to increasing power requirements.
5. Smart Monitoring & Easy Maintenance
With automatic networking and dual monitoring modes, users can conveniently manage battery status through local monitoring and remotely monitor the entire ESS system, simplifying operation and maintenance.
6. Reliable Performance in Various Environments
Designed for durability, the battery operates efficiently in a wide temperature range from -20°C to 55°C with a natural cooling system. This ensures long-term reliability without requiring complex cooling solutions.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SE-F16 |
| Scalability | Max 32 pcs in parallel (Max. 64 pcs can parallel with CAN-Bridge) |
| Battery Chemistry | LiFePO4 |
| Nominal Capacity | 314 Ah |
| Nominal Energy | 16 kWh |
| Nominal Voltage | 51.2 V |
| Operating Voltage | 44.8 V – 57.6 V |
| Max. Cont. Charge Current | 160 A |
| Max. Cont. Discharge Current | 230 A |
| Peak Discharge Current | 280 A (10 sec) |
| Dimensions (W×H×D) | 400 × 708 × 233 mm (Without hanging board) |
| Weight Approximate | 109 kg |
| Recommended DoD | 90% |
| Cycle Life | >6000 cycles (25℃±2℃, 70%EOL) |
| IP Rating | IP21 |
| Operating Temperature | Charge: 0~55℃ / Discharge: -20℃~55℃ |
| Communication | CAN2.0, RS485, Bluetooth+APP |
| Warranty | 5 years / 10 years (extended) |
