Product Description

High Voltage Battery System | LiFePO₄ Technology | Intelligent Safety Management

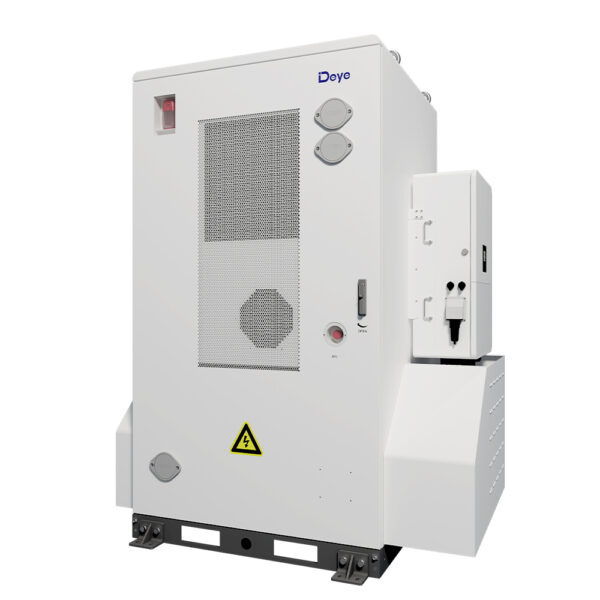

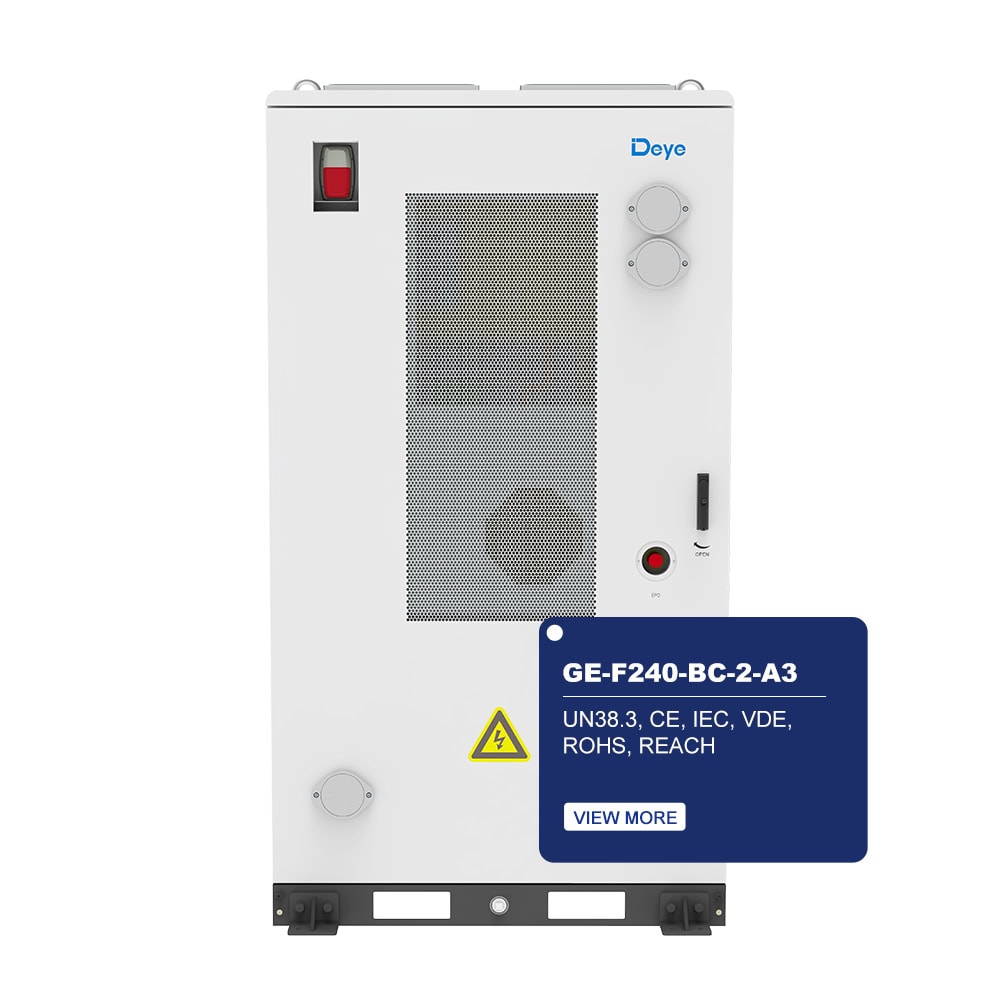

The Deye GE-F240-BC-A3 is a high-voltage outdoor lithium battery energy storage system designed for commercial and industrial (C&I) solar storage applications.
With a 241kWh energy capacity, LiFePO₄ battery technology, integrated BMS, intelligent thermal management, and advanced fire protection system, the GE-F240-BC-A3 provides a reliable energy storage solution for solar self-consumption, peak shaving, backup power, and microgrid applications.

Key Features
1. High-Capacity Energy Storage Solution
The GE-F240-BC-A3 provides large-scale energy storage within a compact outdoor cabinet.
Key parameters:
Battery Capacity: 241.15kWh
Usable Energy: 241.15kWh
Battery Chemistry: LiFePO₄
Battery Modules: 15 modules connected in series
Module Energy: 16.08kWh

2. Advanced LiFePO₄ Battery Technology
The system uses lithium iron phosphate battery cells, providing:
High thermal stability
Long cycle life
Improved operational safety
Lower maintenance requirements
Battery performance:
Cycle Life: ≥8000 cycles
End of Life Capacity: 70%
Warranty: 10 years

3. High Voltage Architecture
The GE-F240-BC-A3 adopts a high-voltage battery design to improve system efficiency.
Electrical characteristics:
Nominal Voltage: 768V
Operating Voltage Range: 600-876V
Rated DC Power: 121kW

4. Intelligent Battery Management System
The integrated BMS continuously monitors battery operating conditions.
Management functions include:
Cell voltage monitoring
Temperature monitoring
Charge/discharge control
SOC management
Fault detection
Communication with EMS and inverter

5. Multi-Layer Safety Protection
The GE-F240-BC-A3 integrates multiple safety technologies.
Safety features:
Aerosol fire suppression
Water fire protection interface
CO gas detection
Active exhaust system
Explosion venting design
Temperature monitoring

6. Outdoor Cabinet Design
The integrated cabinet structure simplifies transportation and installation.
Design advantages:
Outdoor installation capability
Floor-mounted structure
Integrated battery management
Smart air cooling system
Anti-corrosion protection
Protection and environmental specifications:
Protection Degree: IP55
Anti-corrosion Level: C4-M
Operating Temperature: -30℃ to 55℃

7. Flexible Integration With Solar Systems
The GE-F240-BC-A3 can be combined with:
Hybrid inverters
Solar PV systems
Grid systems
Diesel generators
Microgrid solutions

FAQ
Q1: What is the capacity of Deye GE-F240-BC-A3?
The GE-F240-BC-A3 provides approximately 241kWh energy capacity for commercial and industrial energy storage applications.

Q2: What battery technology does GE-F240-BC-A3 use?
It uses LiFePO₄ lithium battery technology, providing high safety, long cycle life, and stable performance.

Q3: Is GE-F240-BC-A3 suitable for outdoor installation?
Yes. The cabinet features IP55 protection and outdoor installation design for commercial energy storage projects.

Q4: Can GE-F240-BC-A3 work with solar inverters?
Yes. It is designed to integrate with hybrid inverter systems for solar-plus-storage applications.

Q5: What is the expected service life of this battery system?
The system supports ≥8000 cycles and comes with a 10-year warranty under specified operating conditions.
