Product Description

Deye SUN-100/125K-SG02HP3-EU-GM8/GM10 Hybrid Inverter

100kW / 125kW Three Phase High Voltage Hybrid Inverter
High Voltage Battery Support | 10 MPPT | Commercial & Industrial Energy Storage Solution

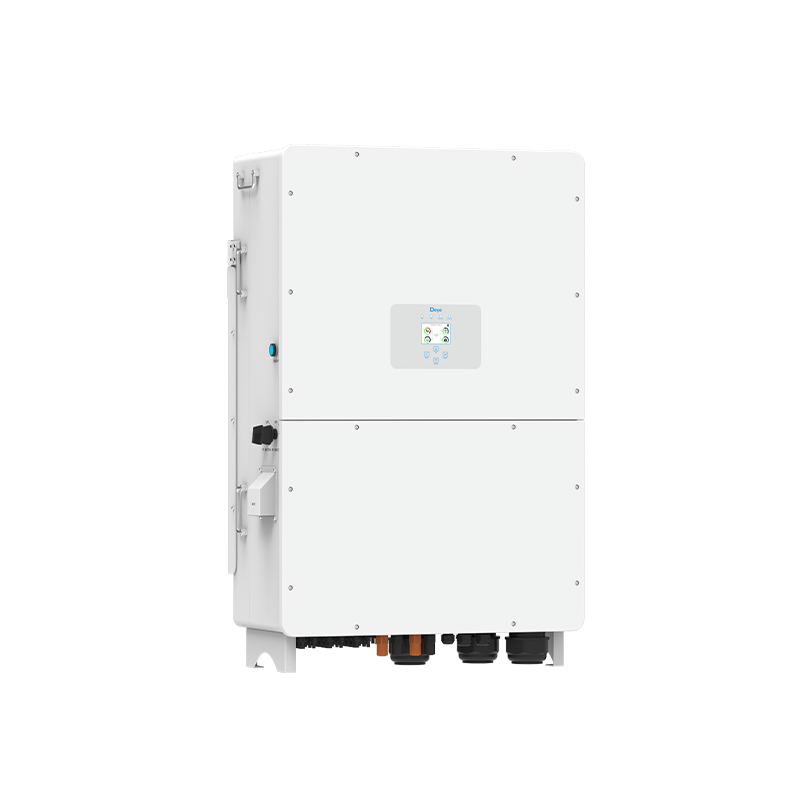

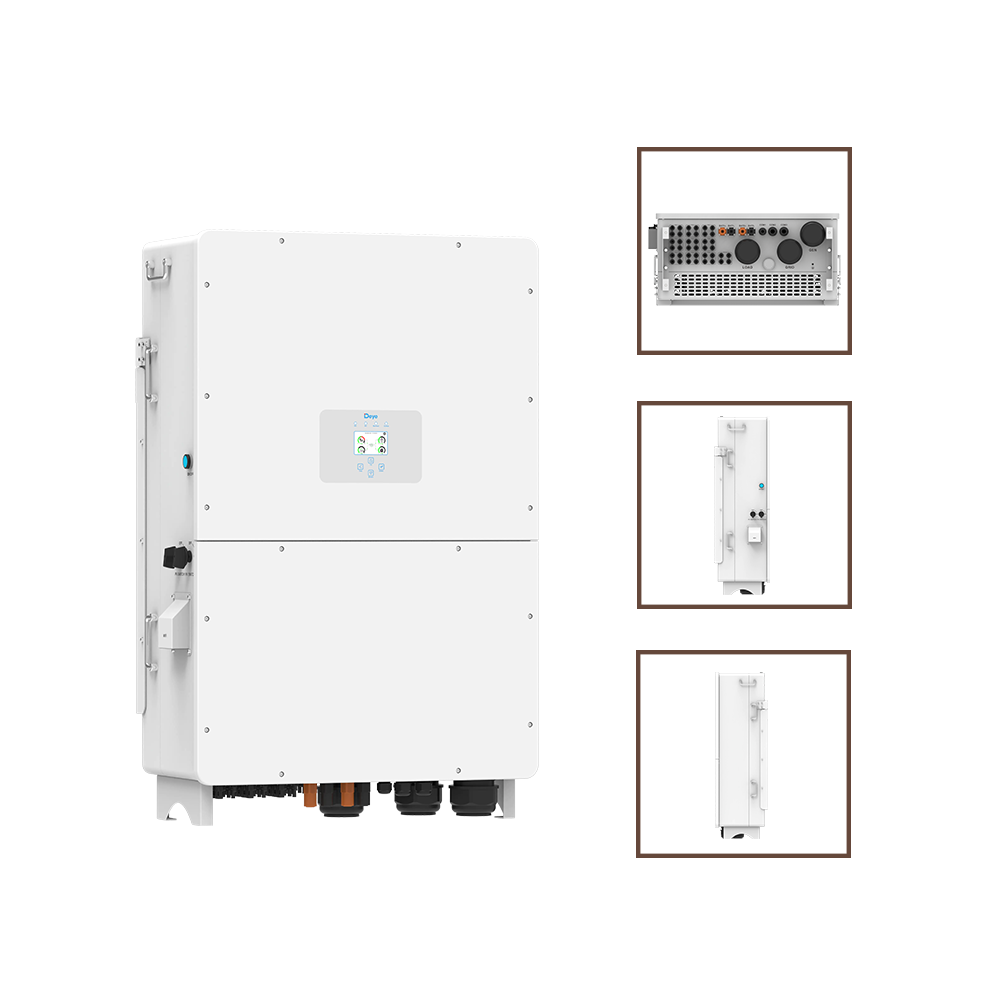

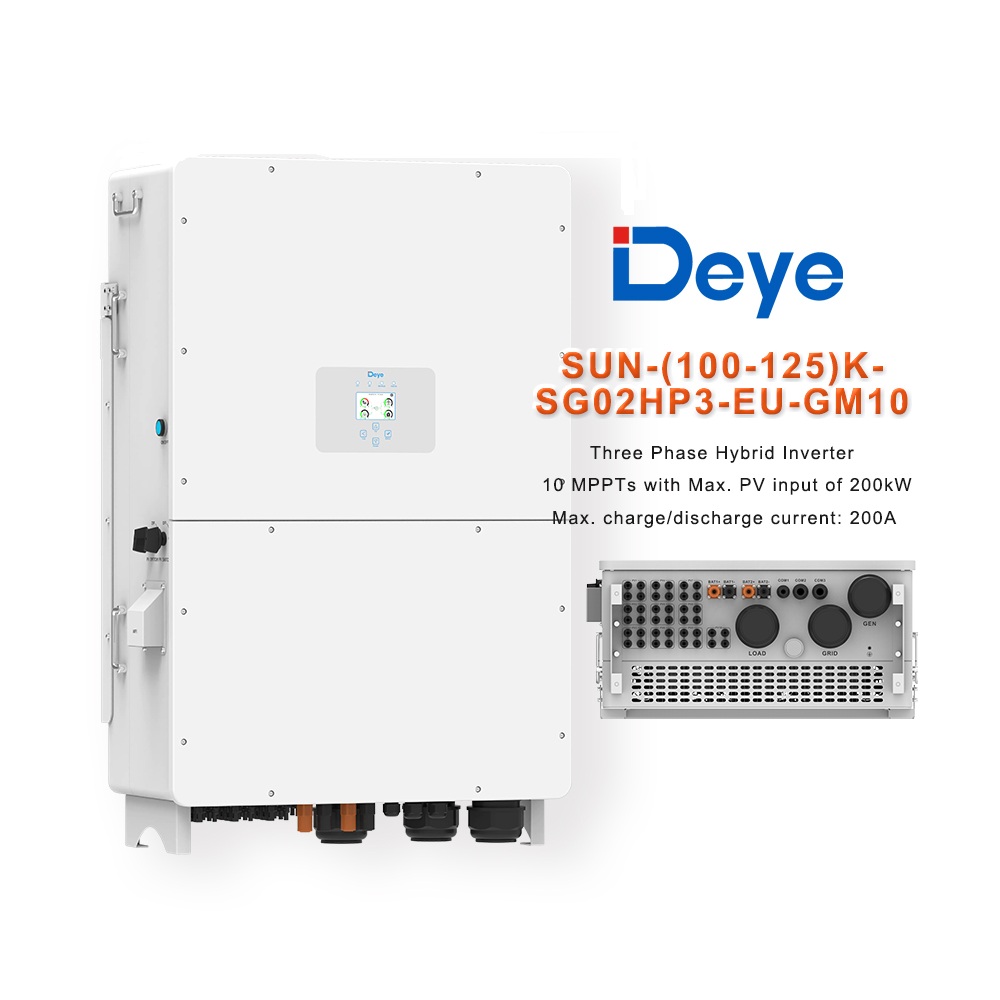

The Deye SUN-100/125K-SG02HP3-EU-GM10 is a high-performance three-phase hybrid inverter designed for commercial and industrial solar energy storage systems.
Available in 100kW and 125kW power ratings, this inverter integrates solar PV generation, high-voltage battery storage, grid connection, and backup power management into one intelligent energy solution.
With support for high-voltage lithium batteries, up to 10 MPPT trackers, 200A charging/discharging current, and parallel operation, it is suitable for large-scale C&I photovoltaic projects requiring high efficiency and flexible energy management.

Product Overview

The Deye SUN-100/125K-SG02HP3-EU-GM10 hybrid inverter is designed for large commercial and industrial solar storage applications.

The inverter supports:
Solar PV input
High-voltage battery storage
Grid-connected operation
Off-grid backup operation
Diesel generator energy integration

The high-voltage battery architecture improves system efficiency while reducing current losses, making it ideal for large-scale energy storage systems.

Technical Specifications

PV Input Data

AC Output Data

Key Features
High Power Output for Commercial Applications
Available models:
Model Rated Power
SUN-100K-SG02HP3-EU-GM10 100kW
SUN-125K-SG02HP3-EU-GM10 125kW
Suitable for:
Commercial buildings
Industrial facilities
Large solar farms
Energy storage projects

High Voltage Battery Energy Storage
The inverter supports high-voltage lithium battery systems.
Battery specifications:
Battery Type: Lithium-ion
Battery Voltage Range: 160-1000V
Battery Input: 2 channels
Maximum Charging Current: 100A + 100A
Maximum Discharging Current: 100A + 100A

Up to 10 MPPT for Flexible PV Design
The SUN-100/125K-SG02HP3-EU-GM10 supports multiple PV inputs to maximize solar generation efficiency.
PV input features:
Maximum PV Voltage: 1000V
MPPT Voltage Range: 150-850V
Rated PV Input Voltage: 650V
Number of MPPT: 10
Maximum PV Input Power:
100kW model: 160kW
125kW model: 200kW

Strong Parallel Expansion Capability
The inverter supports large-scale system expansion.
Features:
Up to 10 units parallel operation
Supports multiple batteries connected in parallel
Supports both on-grid and off-grid operation

Intelligent Energy Management
The inverter provides flexible power scheduling functions:
Six charging/discharging time periods
Battery charging strategy optimization
Intelligent BMS communication
Energy management based on electricity demand

AC Coupling & Generator Integration
The SUN-100/125K-SG02HP3-EU-GM10 supports AC coupling, allowing integration with existing solar systems.
Additional functions:
Retrofit existing PV systems
Support diesel generator energy storage
Flexible hybrid energy configuration

Reliable Safety Protection
Built-in protection functions include:
DC reverse polarity protection
AC overcurrent protection
AC overvoltage protection
Short circuit protection
Anti-islanding protection
Insulation monitoring
Residual current detection
Surge protection Type II (DC & AC)
AFCI protection (optional)
Protection rating:
IP65 outdoor protection
Smart cooling system

Application Scenarios

Commercial & Industrial Solar Storage
Factories,Warehouses,Office buildings,Commercial complexes
Large-Scale Energy Storage Projects
Solar power plants,Utility-scale storage systems,Renewable energy projects
Existing PV System Retrofit
Add battery storage,Improve energy independence,Optimize electricity usage
Microgrid & Backup Power Systems
Remote industrial sites,Critical facilities,Areas with unstable grid supply

FAQ
Q1: What is the power range of Deye SUN-100/125K-SG02HP3-EU-GM10?
The series includes 100kW and 125kW three-phase hybrid inverter models designed for commercial and industrial applications.

Q2: What battery type does this inverter support?
It supports high-voltage lithium-ion battery systems with a voltage range of 160-1000V.

Q3: How many MPPT trackers does this inverter have?
The SUN-100/125K-SG02HP3-EU-GM10 supports 10 MPPT trackers, allowing flexible PV system design.

Q4: Can multiple inverters work together?
Yes. Up to 10 units can operate in parallel for larger energy storage systems.

Q5: Can this inverter work with diesel generators?
Yes. The inverter supports storing energy generated from diesel generators for hybrid energy applications.
