Deye MC-LC480-2H2 High Voltage 200kW+480kWh All-in-One Battery C&I BESS Cabinet
- Category: C&I ESS Solution
- Features
Product Description

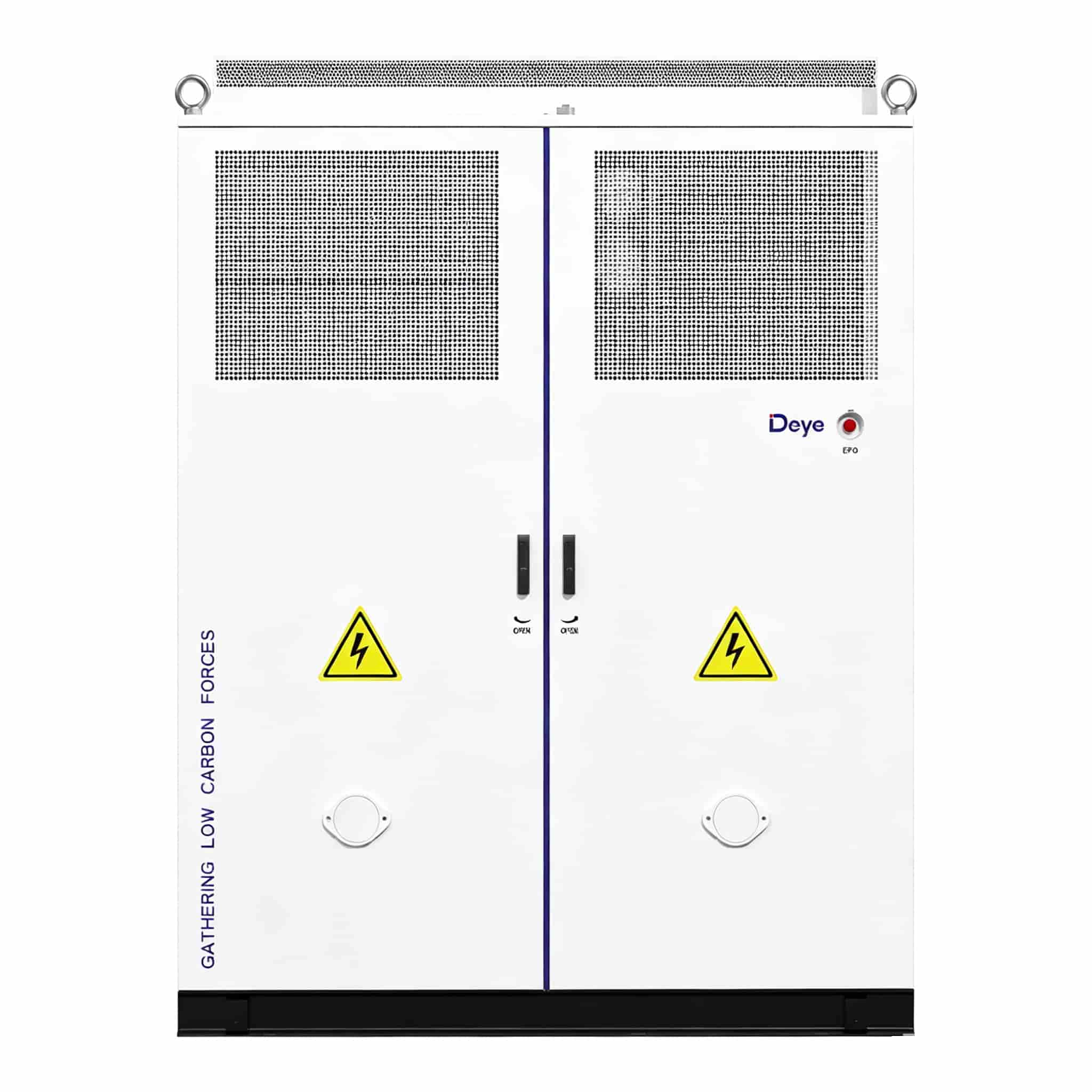

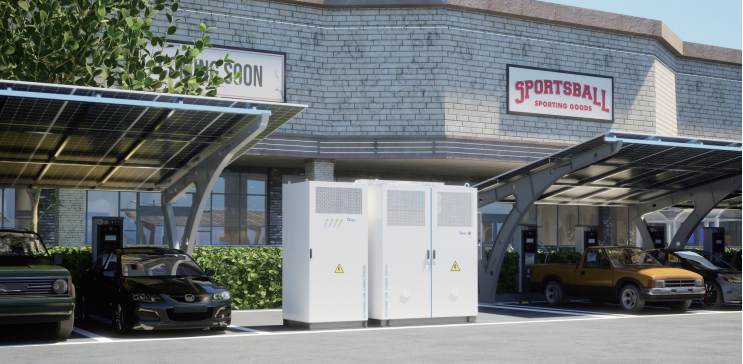

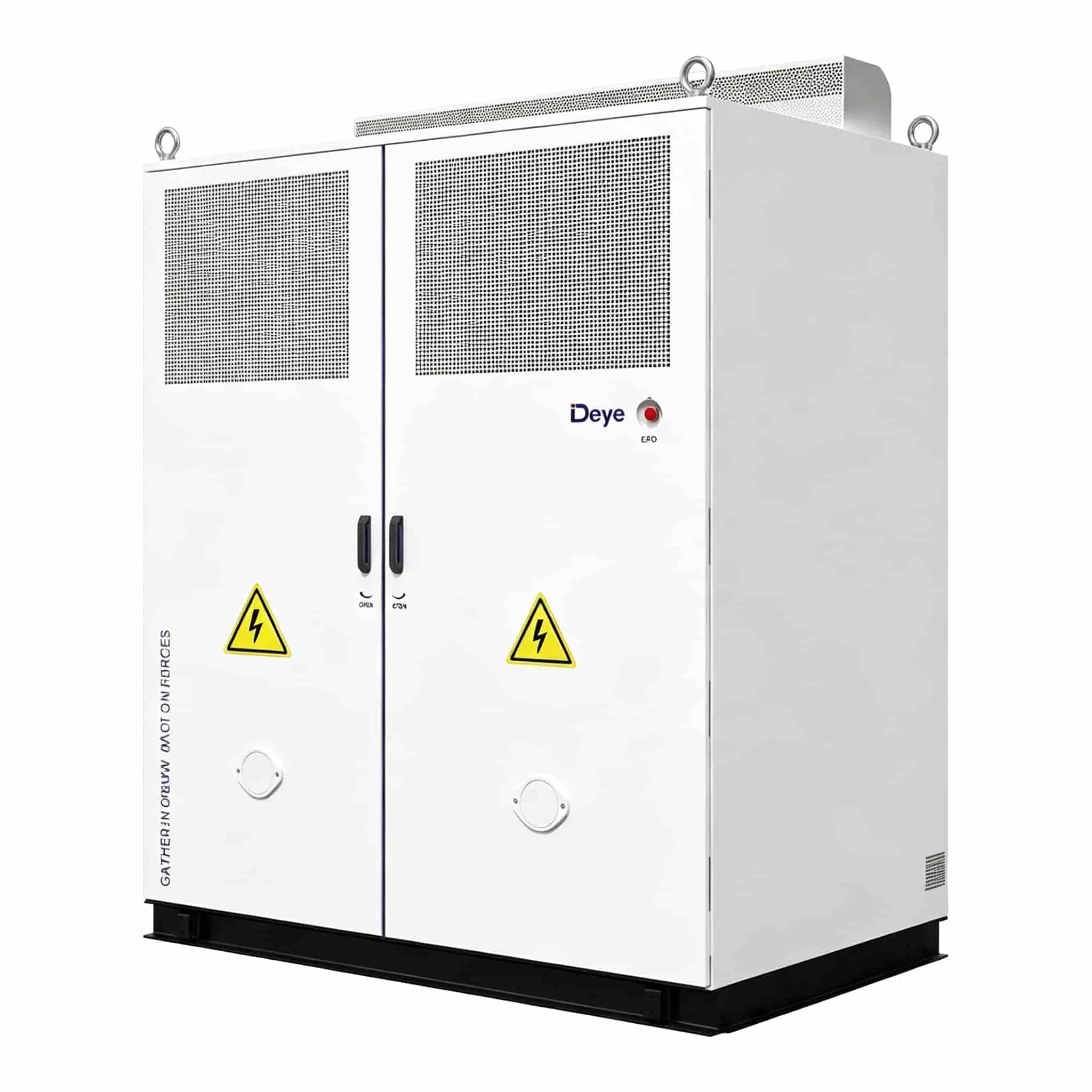

The Deye MC-LC430-2H2 serves as an all-in-one integrated system tailored for commercial & industrial scenarios, unifying PV power generation, battery energy storage (BESS), and EV charging functions. This unit is equipped with a 482.304 kWh lithium iron phosphate battery pack, alongside built-in PCS, BMS and EMS modules. Adopting liquid cooling technology and a compact modular layout, the system delivers smart whole-site energy management. It accommodates both grid-tied and off-grid working modes, supports PV DC direct coupling, seamlessly integrates EV charging piles, and enables remote cloud monitoring. It stands as a premium energy storage choice for diverse commercial and industrial facilities.

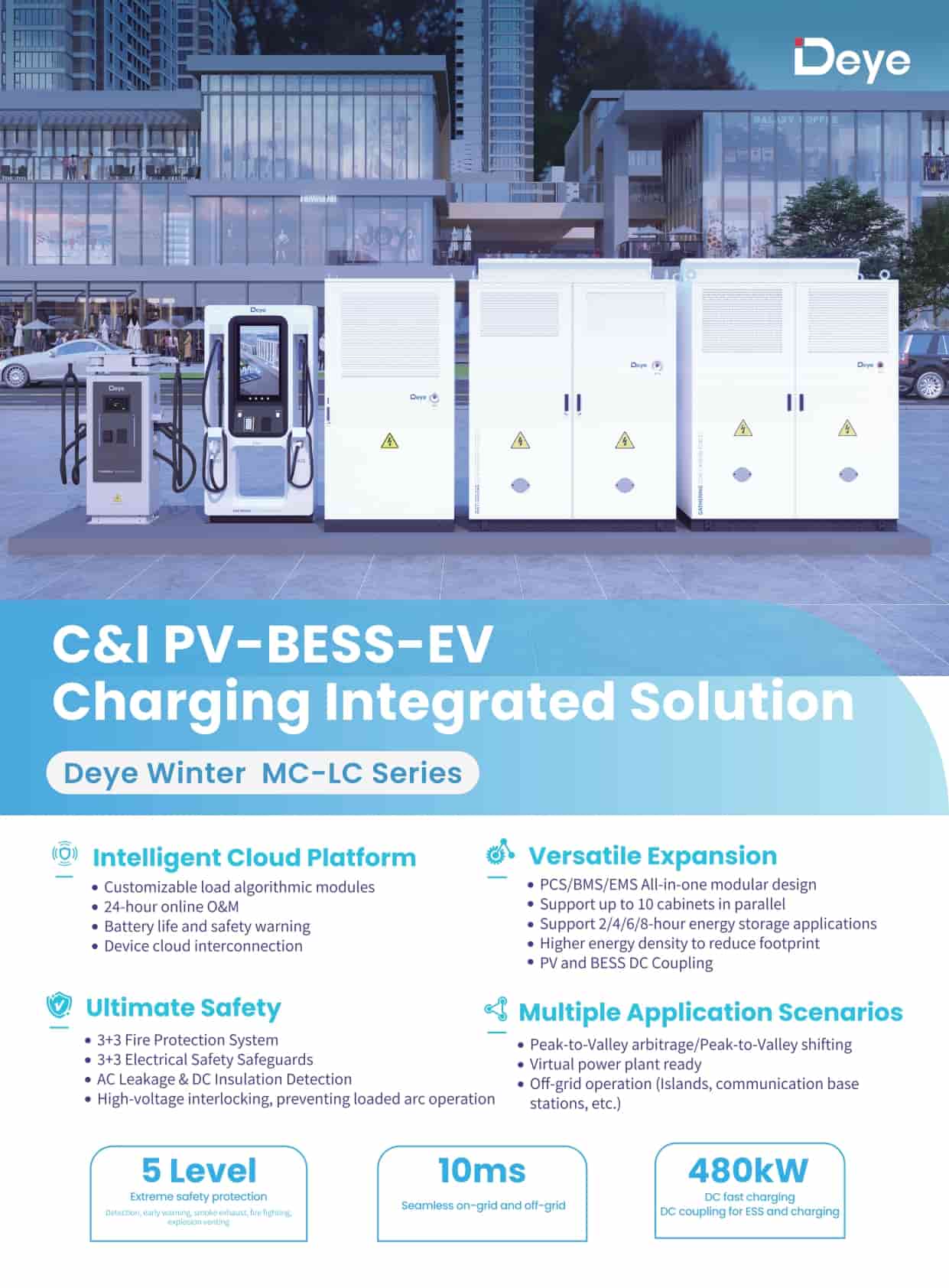

Key Features
Ultimate Safety
Equipped with a dual 3+3 protection architecture: a 3+3 fire suppression system paired with 3+3 electrical safety safeguards. It features AC leakage monitoring, DC insulation detection, high-voltage interlock protection and explosion relief vents for comprehensive hazard prevention.
Flexible Expandability
Boasts an all-in-one modular structure integrating PCS, BMS and EMS, supporting energy storage configurations for 2/4/6/8-hour discharge durations. Delivers superior energy density and enables direct DC coupling between photovoltaic systems and battery energy storage units.
Outstanding performance
Adopts a 482.304 kWh lithium iron phosphate battery pack with a 200 kW rated output and peak power up to 220 kW. It achieves seamless switching between grid-tied and off-grid modes within only 10 milliseconds.
Smart Energy Management
Backed by an intelligent cloud management platform that supports customizable load algorithm modules. It provides round-the-clock online operation and maintenance services, real-time battery lifespan & safety alert reminders, as well as cloud interconnection for all connected equipment.
Technical Specifications

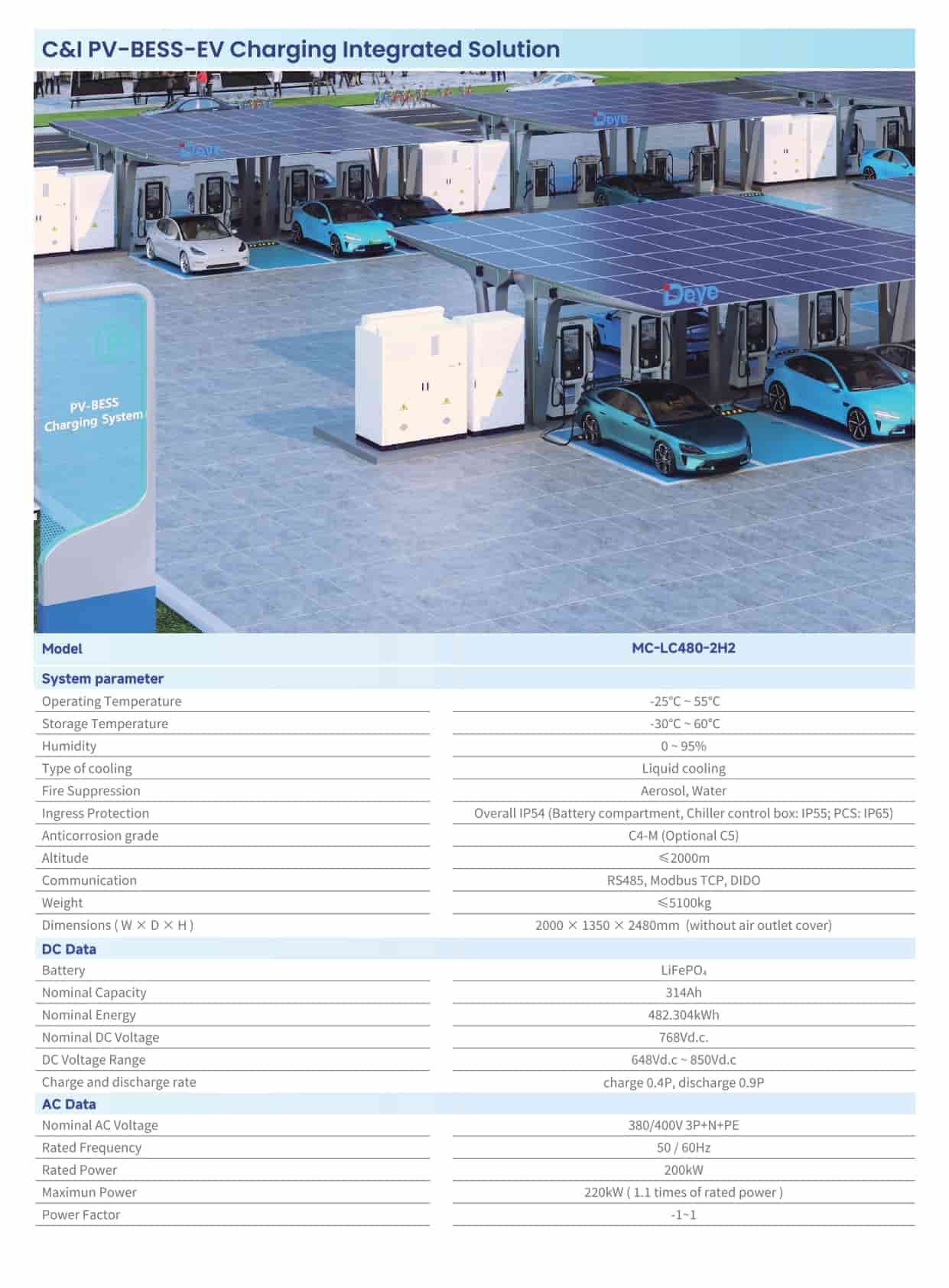

System Parameters
| Parameter Item | Specification |
|---|---|
| Model | MC-LC480-2H2 |
| Operating Temperature | -25°C ~ 55°C |
| Storage Temperature | -30°C ~ 60°C |
| Humidity | 0 ~ 95% |
| Type of cooling | Liquid cooling |
| Fire Suppression | Aerosol, Water |
| Ingress Protection | Overall IP54 (Battery compartment, Chiller control box: IP55; PCS: IP65) |
| Anticorrosion grade | C4-M (Optional C5) |
| Altitude | ≤2000m |
| Communication | RS485, Modbus TCP, DIDO |
| Weight | ≤5100kg |
| Dimensions (W × D × H) | 2000 × 1350 × 2480mm (without air outlet cover) |
DC Data
| Parameter Item | Specification |
|---|---|
| Battery | LiFePO₄ |
| Nominal Capacity | 314Ah |
| Nominal Energy | 482.304kWh |
| Nominal DC Voltage | 768Vd.c. |
| DC Voltage Range | 648Vd.c. ~ 850Vd.c. |
| Charge and discharge rate | charge 0.4P, discharge 0.9P |
AC Data
| Parameter Item | Specification |
|---|---|
| Nominal AC Voltage | 380/400V 3P+N+PE |
| Rated Frequency | 50 / 60Hz |
| Rated Power | 200kW |
| Maximum Power | 220kW (1.1 times of rated power) |
| Power Factor | -1~1 |
