Product Description

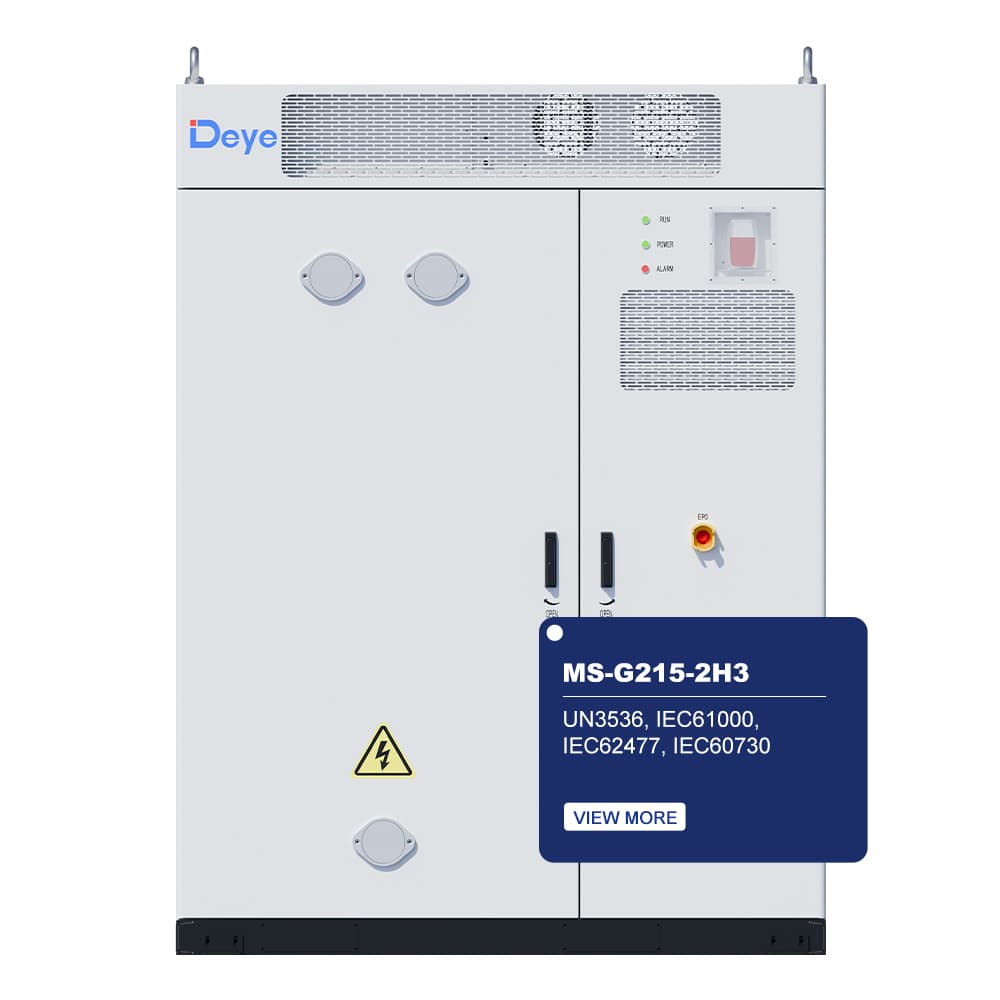

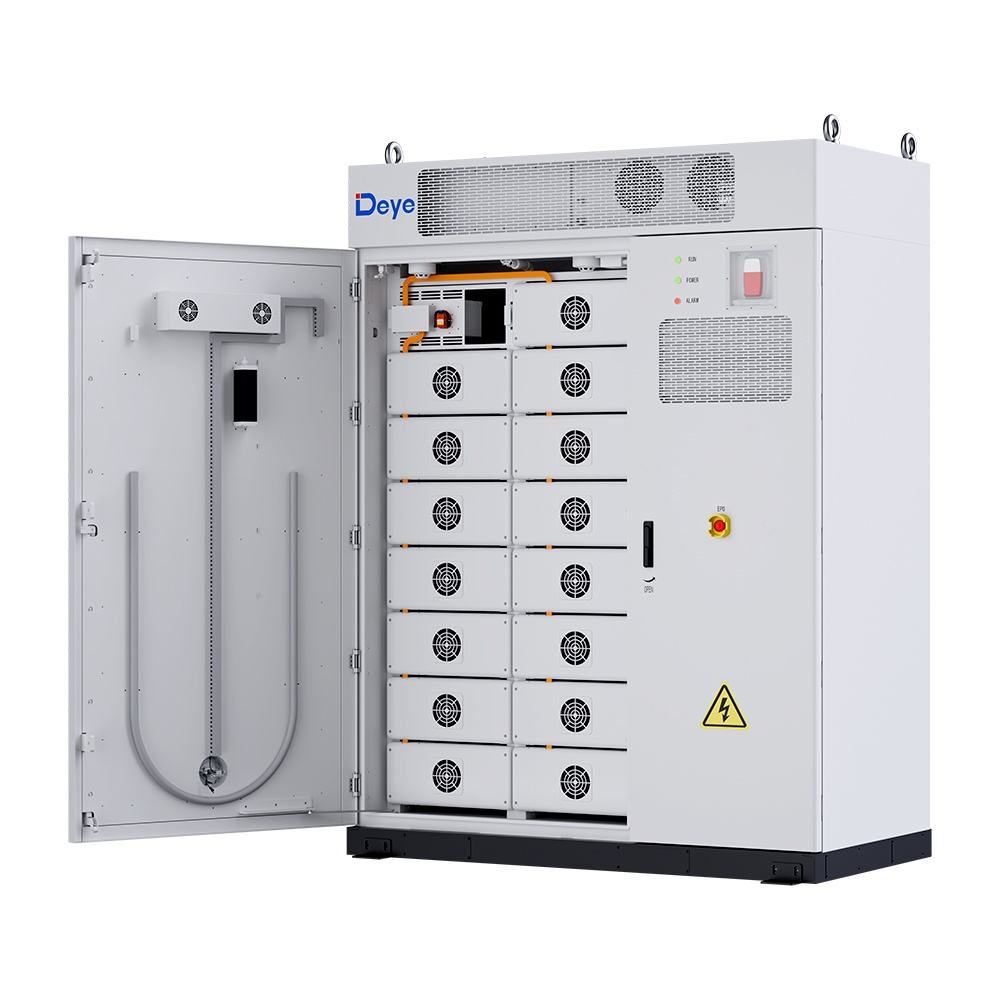

Deye MS-G215-2H3 is an integrated liquid cooling commercial & industrial energy storage system independently developed by Deye Technology, integrating PCS converter, BMS battery management system and EMS energy management system in a single cabinet. The unit delivers rated 100kW AC power and 215kWh usable LFP battery capacity, supporting seamless switching between on-grid peak-valley arbitrage and off-grid emergency backup power modesDeye ESS.

Adopting full liquid cooling thermal design, the system strictly controls battery core temperature below 35°C under full-load operation, with core temperature difference ≤8°C to extend cycle life. Equipped with full set of active safety configurations including LiFePO4 cells, aerosol automatic fire extinguishing, explosion-proof pressure relief compartment and multi-layer electrical protection, it passes global mainstream safety certifications UN3536, IEC61000, IEC62477, IEC60730

With IP54 enclosure & C5 anti-corrosion grade, it stably runs at -20°C~50°C ambient temperature and up to 3000m altitude, adapting to coastal salt fog, desert high temperature, mountain cold and other harsh outdoor working conditions. Strong parallel scalability: max 20 units paralleled on-grid to reach total 2MW/4.3MWh; max 10 units paralleled off-grid to reach total 1MW/2.15MWh. Standard 10-year whole machine warranty and ≥6000 charge-discharge cycles (70% capacity at EOL) provide long-term reliable energy storage solution for global industrial parks, commercial malls, data centers, hospitals, remote mining areas and island microgrid projects.

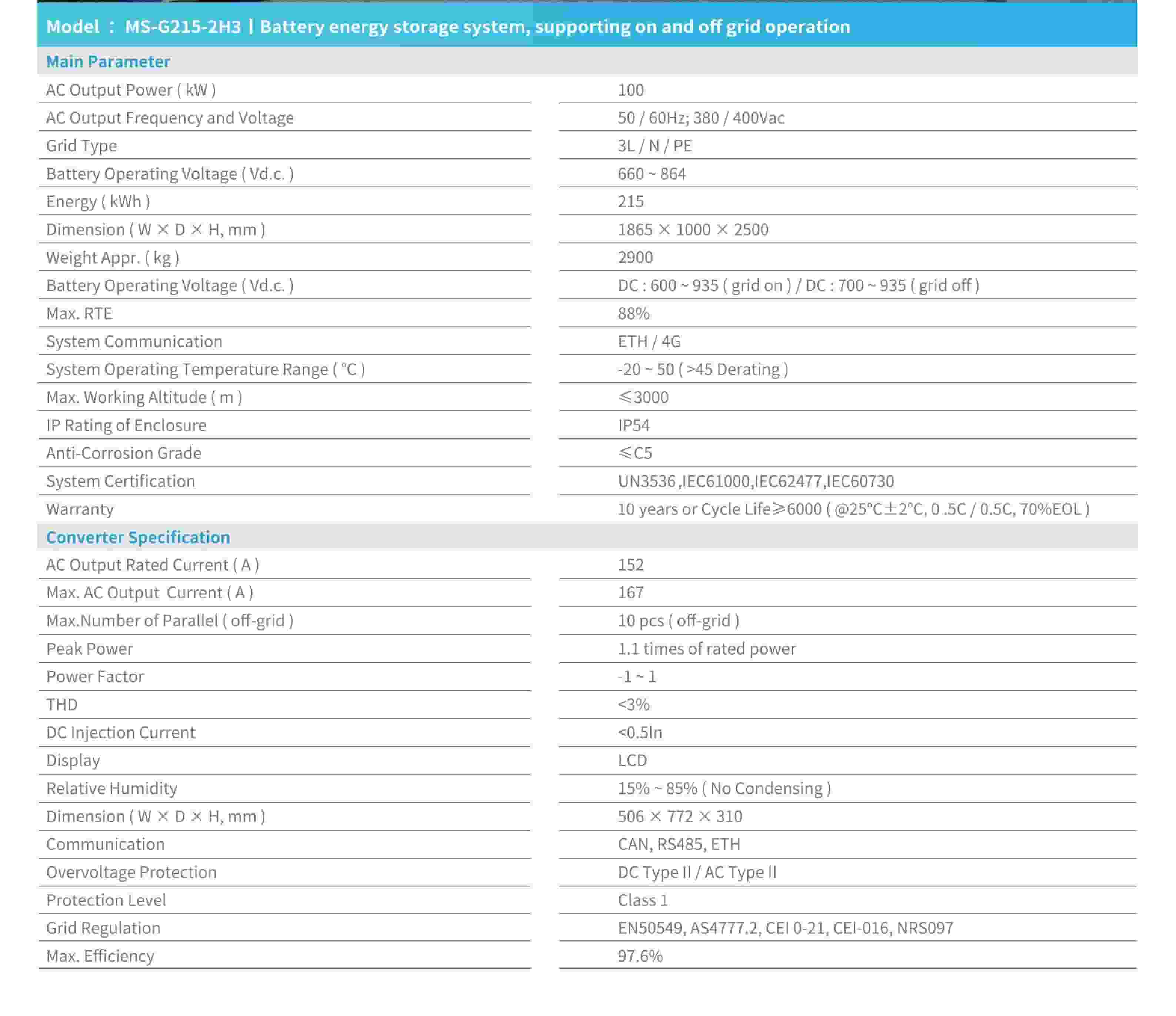

Technical Specifications

Basic System Parameters

Environmental & Mechanical Parameters

Safety & Communication

FAQ:

Q1: What scenarios is Deye MS-G215-2H3 suitable for?
A: It covers on-grid commercial industrial peak-valley arbitrage, factory demand charge reduction, data center/hospital critical load backup power, PV+ESS microgrid, remote island & mine off-grid independent power supply, and outdoor energy storage projects in high temperature, low temperature and coastal salt fog areas.

Q2: What is the maximum parallel capacity of this unit?

A: On-grid mode supports up to 20 units parallel, total capacity 2MW/4.3MWh; off-grid backup mode supports up to 10 units parallel, total capacity 1MW/2.15MWh, flexible expansion for small and medium or large energy storage stations.

Q3: How about the safety configuration of MS-G215-2H3?
A: Full set of multi-layer safety design: LiFePO4 safe cells, built-in aerosol fire extinguishing, explosion-proof pressure relief cabin, auto venting, complete overcharge/over-discharge/short-circuit/lightning protection, and full global safety transport & electrical certifications.

Q4: What is the service life and warranty policy?
A: The battery supports ≥6000 cycles with 70% capacity retention at end of life; the whole machine comes with a standard 10-year warranty, and we provide global localized after-sales technical support.

Q5: Can the system work in high temperature, cold or coastal salt fog environment?
A: Yes. Operating temperature range -20°C to 50°C; IP54 enclosure + C5 anti-corrosion grade adapts to coastal salt fog; it can operate stably at altitudes up to 3000m for plateau mining projects.

Q6: Does it support remote monitoring?
A: Equipped with Ethernet and 4G communication modules, support local LCD touch screen operation, PC web management platform and mobile APP real-time remote monitoring, data viewing, fault alarm and remote parameter adjustment.

Q7: Does the unit support off-grid black start without mains power?
A: Yes, built-in black start function, can independently supply power to loads without grid access, ideal for emergency backup and off-grid microgrid projects.

Q8: What cooling method does this ESS adopt?
A: Adopts integrated liquid cooling thermal management system, independent heat dissipation for PCS and battery compartment, battery temperature controlled below 35°C under full load, effectively slow down battery attenuation and extend service life.
