Product Description

100kW Solar + 215kWh Battery All-in-One C&I ESS Solution

Integrated PCS | LiFePO₄ Battery | Intelligent EMS | Outdoor Energy Storage Cabinet
The Deye MS-GS215-2H3 is an advanced all-in-one commercial and industrial energy storage system integrating a 100kW power conversion system (PCS), 215kWh lithium battery storage, BMS, EMS, and intelligent safety management system.
Designed for commercial buildings, factories, renewable energy projects, and microgrid applications, the system provides an efficient solution for solar self-consumption, peak shaving, backup power, and energy management optimization.

Product Overview

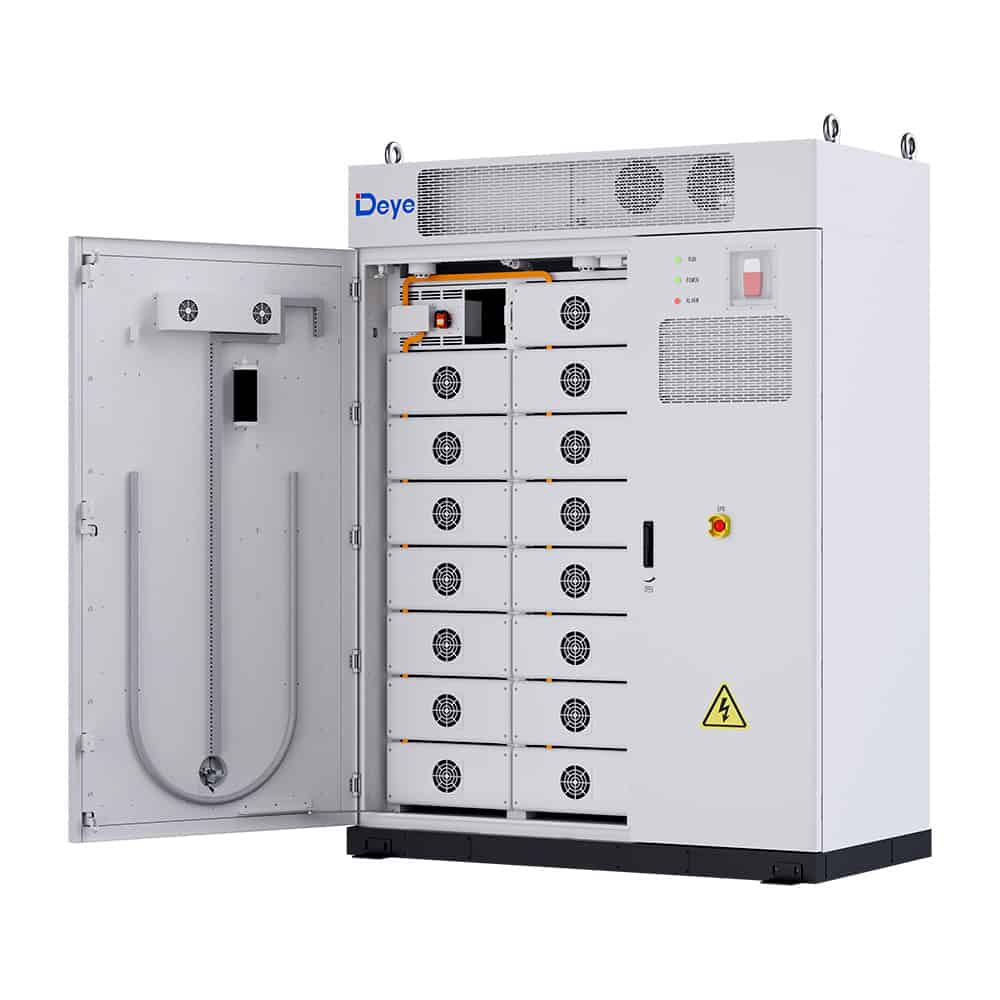

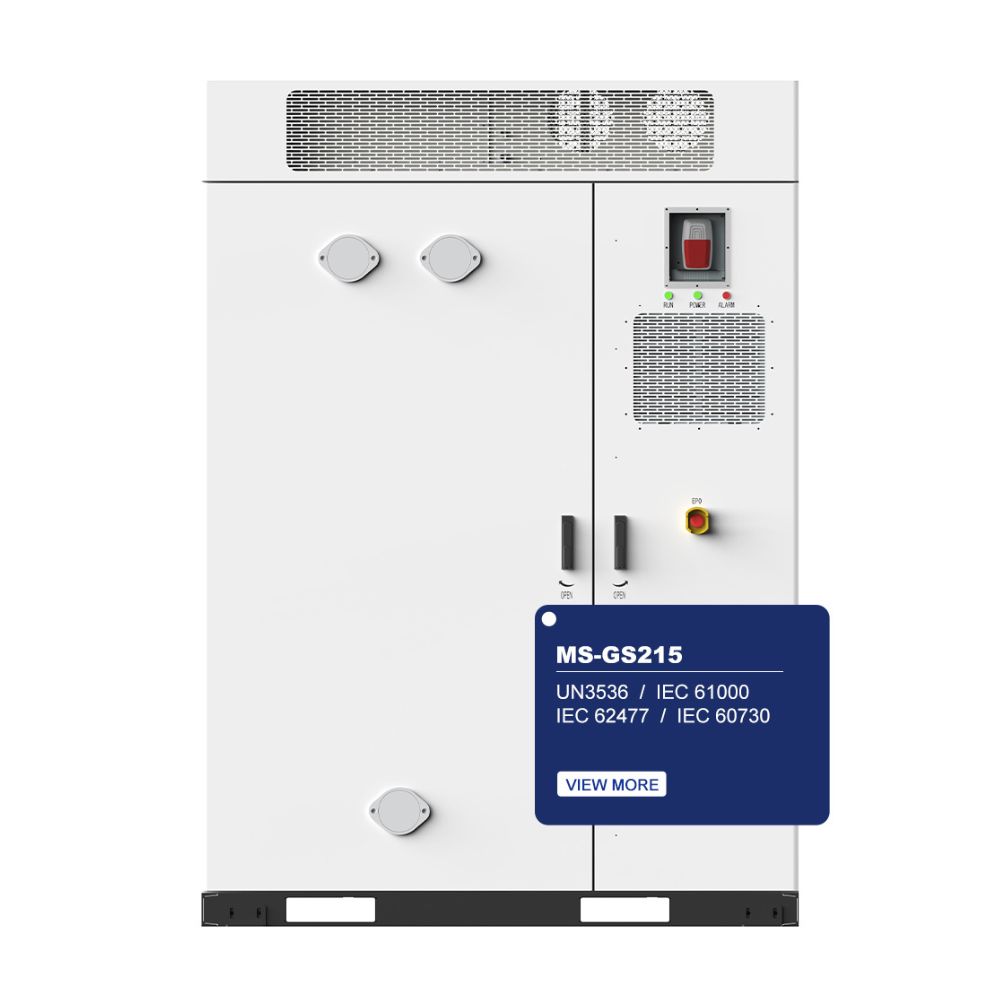

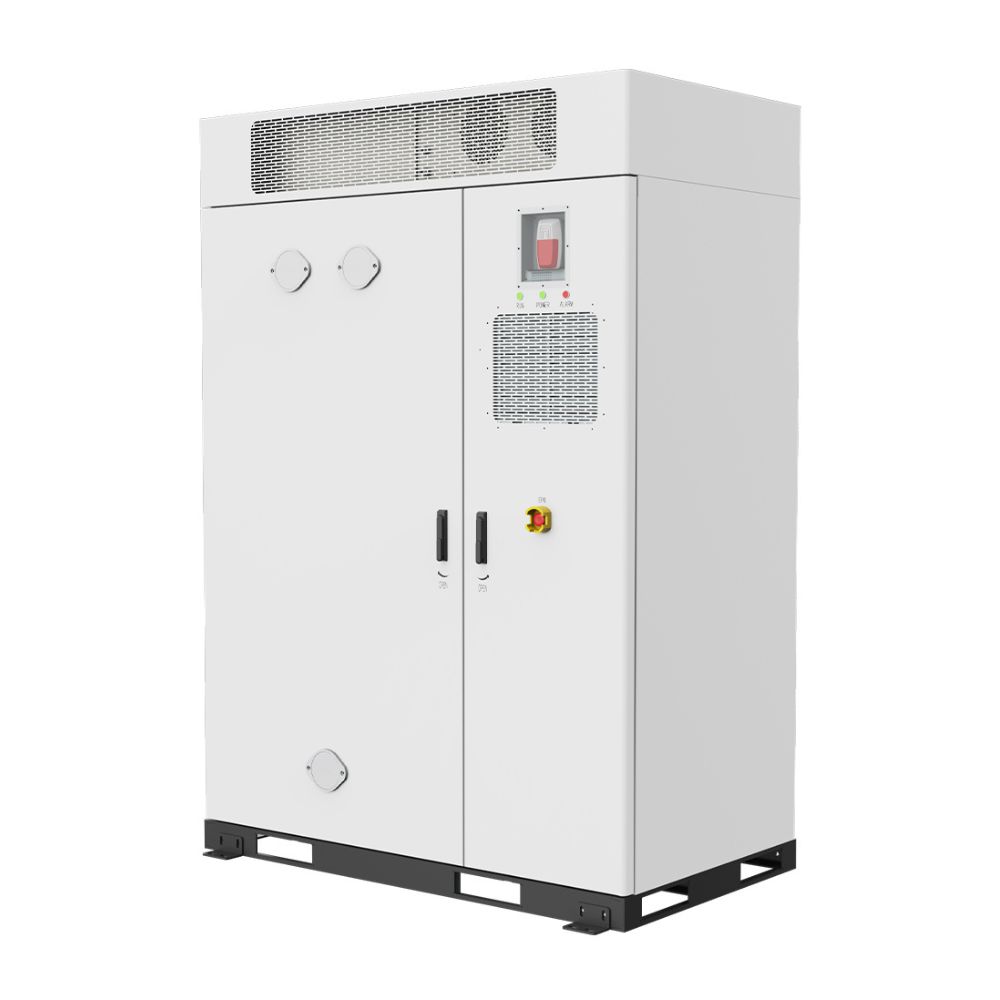

The Deye MS-GS215-2H3 is a modular outdoor energy storage system designed for medium and large-scale C&I applications.

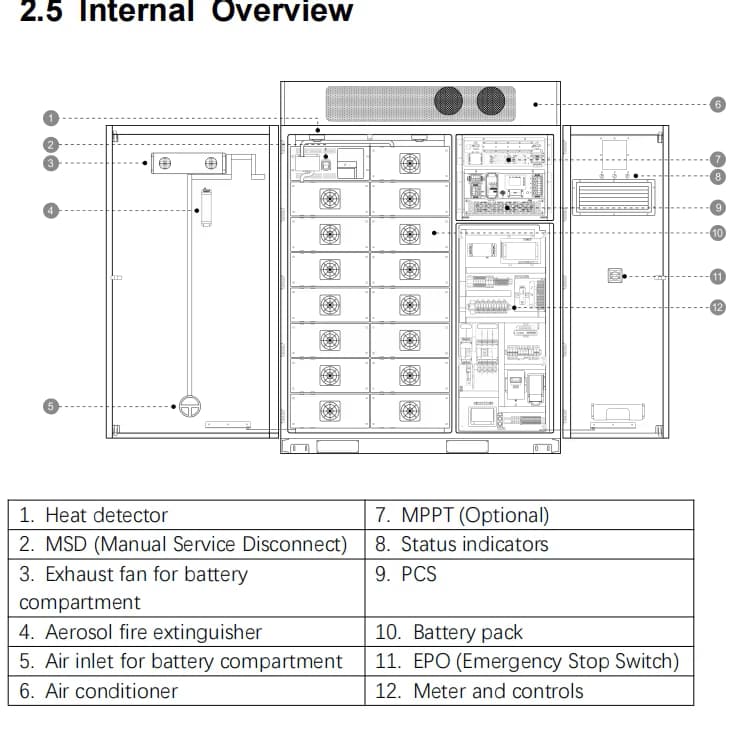

The integrated cabinet combines multiple components into one standardized solution:

100kW PCS power conversion system
215kWh LiFePO₄ battery pack
Battery Management System (BMS)
Energy Management System (EMS)
Thermal management system
Fire protection system

The system supports direct integration with photovoltaic systems, grid power, and backup applications, enabling intelligent energy control and flexible operation modes.
With a high-voltage battery architecture of 660-864Vdc, the MS-GS215-2H3 improves energy conversion efficiency while reducing system complexity and installation requirements.

Technical Specifications

System Data

Battery Parameters

AC & PV Parameters

Mechanical Data

Key Features
1. Integrated 100kW + 215kWh Energy Storage Design
The MS-GS215-2H3 combines power conversion and battery storage into a single outdoor cabinet.
Core specifications:
Rated AC Output Power: 100kW
Battery Energy Capacity: 215kWh
Battery Chemistry: LiFePO₄
Grid Connection: 3L/N/PE
AC Voltage: 380/400Vac
Frequency: 50/60Hz

2. High Safety LiFePO₄ Battery System
The system adopts lithium iron phosphate battery technology, providing:
High thermal stability
Long service life
Excellent safety performance
Low maintenance requirements
Battery performance:
Cycle Life: ≥6000 cycles
End-of-Life Capacity: 70%
Warranty: 10 Years

3. Intelligent Energy Management System
The built-in EMS enables intelligent energy scheduling and system optimization.
Main functions:
Peak and valley electricity management
Load tracking
Demand control
Anti-backflow control
Backup power management
Battery operation optimization

4. Flexible Solar Integration Capability
The MS-GS215-2H3 supports photovoltaic integration for solar-plus-storage applications.
PV features:
Maximum PV Input Power: 200kWp
Supports MPPT expansion
Compatible with solar PV systems
The system can store excess solar energy and release it during peak demand periods or grid interruptions.

5. Advanced Thermal & Fire Safety Design
The cabinet integrates multiple safety technologies.
Protection features include:
LiFePO₄ battery safety design
Aerosol fire suppression
Explosion-proof battery compartment
Automatic ventilation system
Intelligent temperature control

6. Outdoor Cabinet Design
The MS-GS215-2H3 is designed for outdoor commercial installation.
Environmental features:
IP54 protection rating
C5 anti-corrosion protection
Operating temperature: -20℃ to 50℃
Maximum altitude: ≤3000m
7. Scalable System Expansion

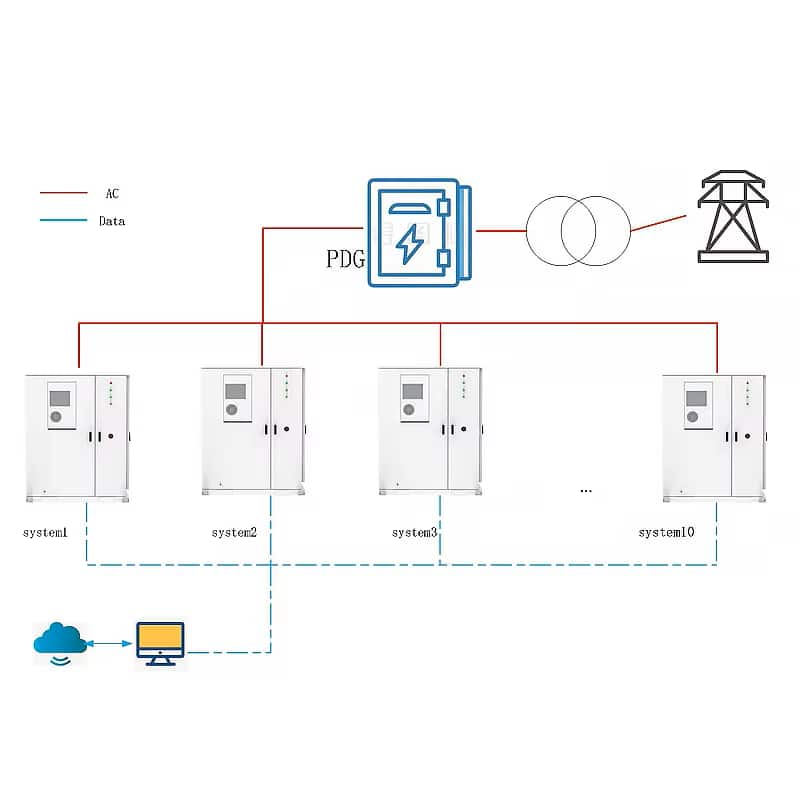

The system supports flexible expansion for larger energy storage requirements.
Parallel capability:
Up to 20 units parallel operation (on-grid)
Maximum system capacity:2MW / 4.3MWh
Additional configurations:
Off-grid operation
Backup power systems
Microgrid applications

FAQ
Q1: What is the capacity of Deye MS-GS215-2H3?
The MS-GS215-2H3 provides 100kW AC output power and 215kWh battery storage capacity for commercial and industrial applications.

Q2: Is MS-GS215-2H3 an integrated energy storage system?
Yes. It integrates PCS, battery system, EMS, BMS, thermal management, and safety systems into one outdoor cabinet.

Q3: What type of battery does this system use?
The system uses LiFePO₄ lithium battery technology, offering high safety and long cycle life.

Q4: Can MS-GS215-2H3 be connected with solar panels?
Yes. The system supports photovoltaic integration with up to 200kWp PV input capacity.

Q5: Can multiple units operate together?
Yes. Multiple units can be connected in parallel, supporting expansion up to 2MW / 4.3MWh for larger projects.

Q6: Is the system suitable for outdoor installation?
Yes. The cabinet features IP54 protection and C5 anti-corrosion design, suitable for outdoor C&I applications.
