Deye Stick Logger GPRS WIFI Ethernet Adapter
- Category: PV Accessories
- Features
Product Description

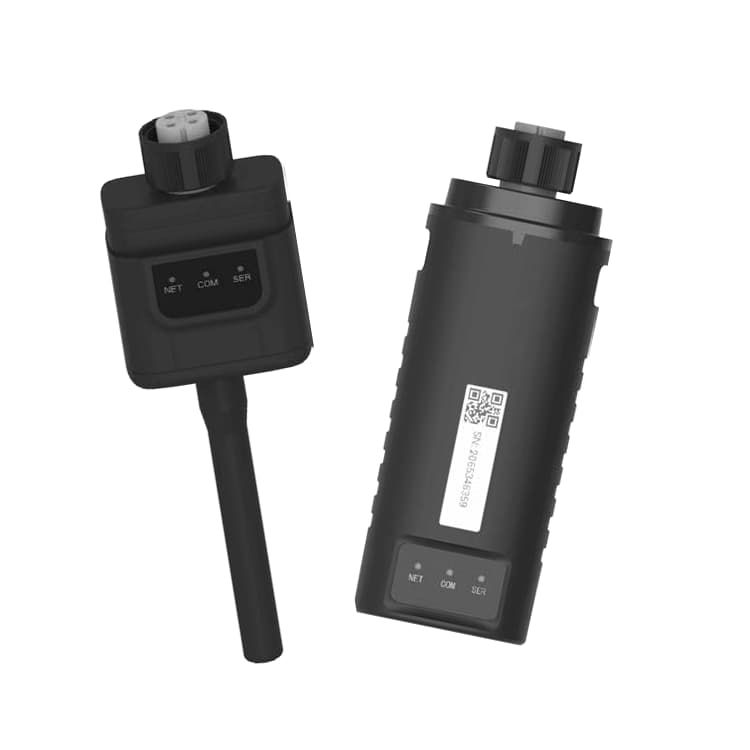

Deye Stick Logger GPRS WIFI Ethernet Adapter
The Deye Stick Logger is a compact solar inverter monitoring adapter designed to collect inverter operating data and PV power generation information for remote monitoring. Supporting multiple communication options, including GPRS, WiFi, 4G, and Ethernet (LAN), it enables flexible connectivity for different solar installations.
Compatible with supported monitoring platforms, the Stick Logger helps users monitor solar system performance, review energy yields, and manage distributed PV installations remotely. Its plug-and-play design, inverter-powered operation, and IP65-rated protection make it a practical solution for residential and commercial solar monitoring.
Available in different communication configurations, the Deye Stick Logger offers a convenient way to improve solar system visibility and simplify PV operation and maintenance.

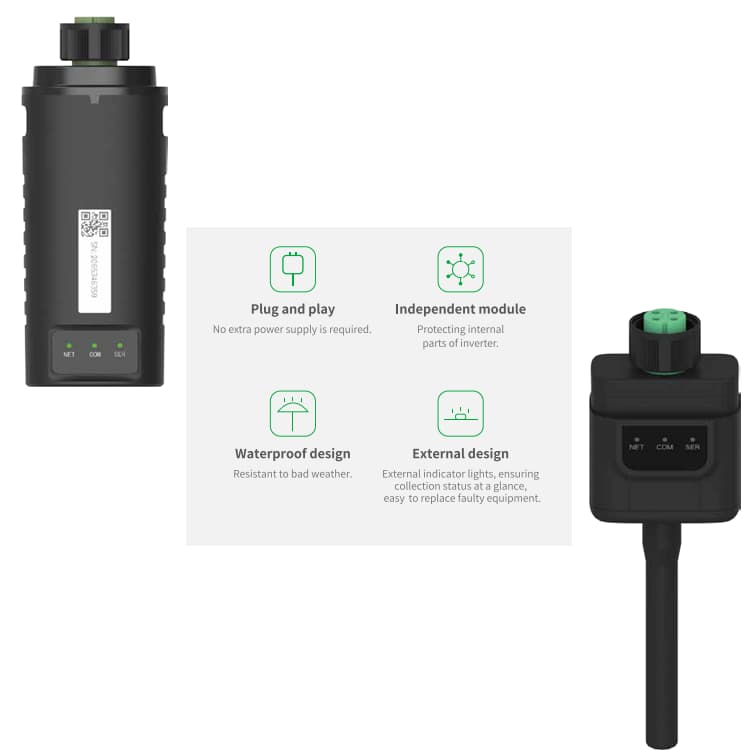

Key Features of Deye Stick Logger
Multiple Communication Options: Available in GPRS, WiFi, 4G, and Ethernet versions for flexible network connectivity.
Plug-and-Play Installation: Designed for convenient installation with power supplied by the inverter, eliminating the need for a separate external power supply where supported.
Remote Solar Monitoring: Collects inverter operating data and power generation information for remote PV system monitoring.
IP65 Protection: The IP65-rated design helps protect the logger against dust and water ingress when installed according to the product requirements.
Status Indicator: An external indicator light allows users to check the logger's operating status more easily.
Easy Maintenance: The external design simplifies replacement and maintenance.
Flexible System Management: Supports remote monitoring and distributed PV system management through compatible monitoring platforms.
Multiple Configuration Methods: Configuration options vary by model and may include Bluetooth, app, web interface, or AT commands.
Technical Specifications
Specification | LSG-3 | LSG-4 | LSW-3 | LS4G-3 | LSE-3 |
|---|---|---|---|---|---|
Product Type | Solar Inverter Data Logger | Solar Inverter Data Logger | Solar Inverter Data Logger | Solar Inverter Data Logger | Solar Inverter Data Logger |
Communication Interface | GPRS | GPRS | Wi-Fi | 4G | Ethernet (LAN) |
Working Frequency | GSM 850/900/1800/1900 MHz | GSM 850/900/1800/1900 MHz | 2.142–2.484 GHz* | 704–960 MHz; 1710–2690 MHz | 10/100 Mbps adaptive |
Antenna | External GPRS antenna | External GPRS antenna | External Wi-Fi antenna | External 4G antenna | Not required in listed specifications |
Data Interface | RS485 / RS232 / TTL | RS485 / RS232 / TTL | RS485 / RS232 / TTL | RS485 / RS232 / TTL | RS485 / RS232 / TTL |
Working Voltage | DC 4.7–15 V | DC 4.7–15 V | DC 4.7–15 V | DC 4.7–15 V | DC 4.7–15 V |
Working Power | 3 W | 3 W | 1.5 W | 5 W | 1 W |
SIM Card | Chip Card / Micro SIM | Chip Card / Micro SIM | Not required | Micro SIM | Not required |
Memory | 2 MB Flash; 2–16 MB optional | 2 MB Flash; 2–16 MB optional | 2 MB Flash; 2–16 MB optional | 2 MB Flash; 2–16 MB optional | 2 MB Flash; 2–16 MB optional |
Working Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
Working Humidity | Below 90%, non-condensing | Below 90%, non-condensing | Below 90%, non-condensing | Below 90%, non-condensing | Below 90%, non-condensing |
Number of Connections | 1 inverter | 1 inverter | 1 inverter | 1 inverter | 1 inverter |
Serial Communication Rate | 1,200–115,200 bps, configurable | 1,200–115,200 bps | 1,200–115,200 bps | 1,200–115,200 bps | 1,200–115,200 bps |
Default Data Acquisition Interval | 5 minutes | 5 minutes | 5 minutes | 5 minutes | 5 minutes |
Configuration | AT commands / Bluetooth | Bluetooth / app / web | AT commands / app / web | AT commands / local serial port | Web interface |
Firmware Upgrade | Remote upgrade | Remote upgrade | Remote upgrade | Remote upgrade | Remote upgrade |
