Deye SUN-100-125K-SG02HP3-EU-GM10 Three Phase Hybrid Inverter

  • Category: Deye Hybrid Inverter
  • Features
    • Deye SUN-125K-SG02HP3-EU-GM10 is a 125kW three-phase high voltage hybrid inverter featuring 10 MPPT, 250kW PV input, 200A battery charging/discharging, and scalable energy storage support for commercial and industrial solar systems.

Product Description

Deye SUN-125K-SG02HP3-EU-GM10

The Deye SUN-125K-SG02HP3-EU-GM10 is a high-performance three-phase hybrid inverter designed for large-scale commercial and industrial energy storage applications. With 125kW rated AC output power, support for high-voltage lithium batteries, and up to 250kW PV access power, it provides an efficient solution for solar-plus-storage systems.

Featuring 10 MPPT trackers, 100% unbalanced output capability, and flexible parallel operation, this inverter maximizes solar energy utilization while supporting scalable energy storage expansion. It is suitable for commercial buildings, industrial facilities, microgrids, and renewable energy projects requiring reliable backup power and intelligent energy management.

Product Features

High Power Output & Flexible System Expansion

  • 125kW rated three-phase AC output for commercial and industrial applications.
  • Supports up to 10 units parallel connection for on-grid and off-grid operation.
  • Compatible with multiple high-voltage battery systems for scalable energy storage solutions.

Advanced PV Input Capability

  • Supports up to 250kW PV access power and 200kW maximum PV input power.

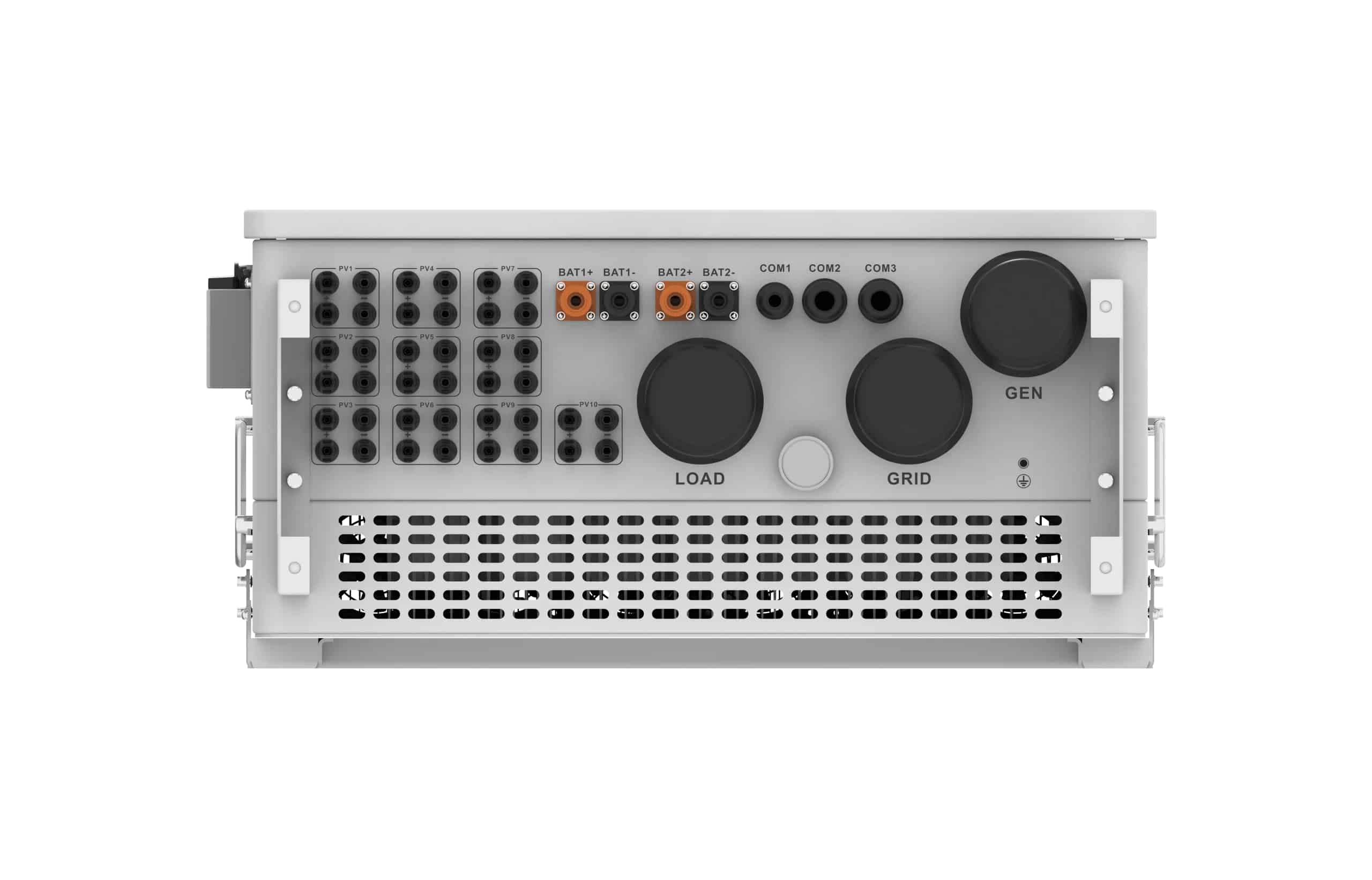

  • Equipped with 10 MPPT trackers and 20 PV string inputs for flexible system design.
  • Wide MPPT voltage range (150-850V) improves energy harvesting under different installation conditions.

High Voltage Battery Integration

  • Supports high-voltage lithium-ion batteries with a voltage range of 160-1000V.
  • Dual battery input design with maximum charging and discharging current up to 200A.
  • Intelligent battery management through BMS communication for improved safety and efficiency.

Reliable Backup & Energy Management

  • Supports AC coupling for retrofitting existing solar systems.
  • Provides 100% unbalanced output to meet different three-phase load demands.
  • Supports diesel generator energy storage integration for enhanced energy independence.

Safe and Durable Design

  • Maximum efficiency up to 98.7% with MPPT efficiency above 99%.
  • IP65 protection rating for outdoor installation.
  • Integrated protections including DC reverse polarity protection, overvoltage protection, short circuit protection, anti-islanding protection, and insulation monitoring.

Technical Specifications

Battery Input Data

ParameterSpecification
Battery TypeLithium-ion
Battery Voltage Range160-1000V
Number of Battery Inputs2
Max. Charging Current100A + 100A
Max. Discharging Current100A + 100A
Battery CommunicationRS485 / CAN
Charging StrategySelf-adaption to BMS

PV Input Data

ParameterSpecification
Max. PV Access Power250kW
Max. PV Input Power200kW
Max. PV Input Voltage1000V
Start-up Voltage180V
MPPT Voltage Range150-850V
Rated PV Input Voltage650V
Number of MPPT Trackers10
Strings per MPPT2
Max. Operating PV Input Current42A × 10
Max. Input Short Circuit Current63A × 10
AC Output Data
ParameterSpecification
Rated AC Output Power125kW
Max. AC Apparent Power135kVA
Rated AC Current189.4A / 181.2A
Max. AC Current204.6A / 195.7A
Max. Continuous AC Passthrough Current250A
Grid Connection3L + N + PE
Rated Voltage220/380V, 230/400V
Frequency Range50Hz / 60Hz
Power Factor Range0.8 leading - 0.8 lagging
THDi<3%
Efficiency & Protection
ParameterSpecification
Max. Efficiency98.7%
Euro Efficiency98.1%
MPPT Efficiency>99%
Surge ProtectionType II DC / Type II AC
Protection RatingIP65
Cooling MethodIntelligent Air Cooling
Operating Temperature-40℃ to +60℃
Maximum Altitude3000m
Noise Level≤65dB
General Data
ParameterSpecification
Communication InterfaceRS485 / RS232 / CAN
Monitoring OptionsWiFi / Bluetooth / GPRS / 4G / LAN (Optional)
DisplayLCD + LED
Dimensions (W×H×D)734 × 1091 × 344 mm
Weight161.7kg
TopologyNon-isolated
Warranty5 Years / 10 Years
