Deye SUN-29.9/30/35/40/50K-SG02HP3-EU-BM3/BM4-P Hybrid Inverters

  1. Hybrid Inverter
  2. Deye Hybrid Inverter

Deye SUN-29.9/30/35/40/50K-SG02HP3-EU-BM3/BM4-P Hybrid Inverters

  • Category: Deye Hybrid Inverter
  • Features
    • Deye SUN-SG02HP3-EU-BM3/BM4-P is a 29.9-50kW three phase high voltage hybrid inverter with 160-800V battery support, 3/4 MPPT, 160A charging current, AC coupling and scalable parallel operation for commercial solar energy storage systems.

Product Description

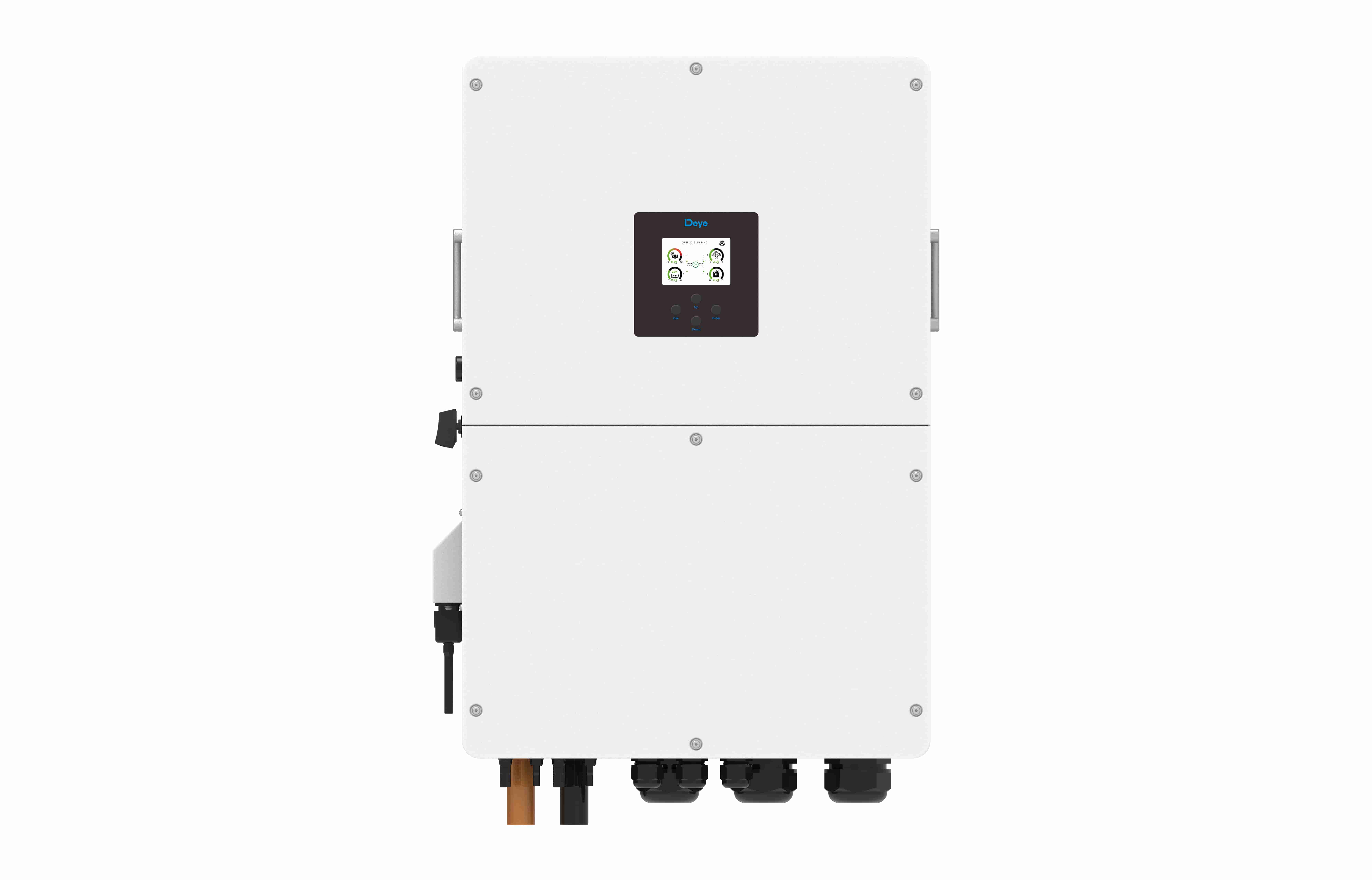

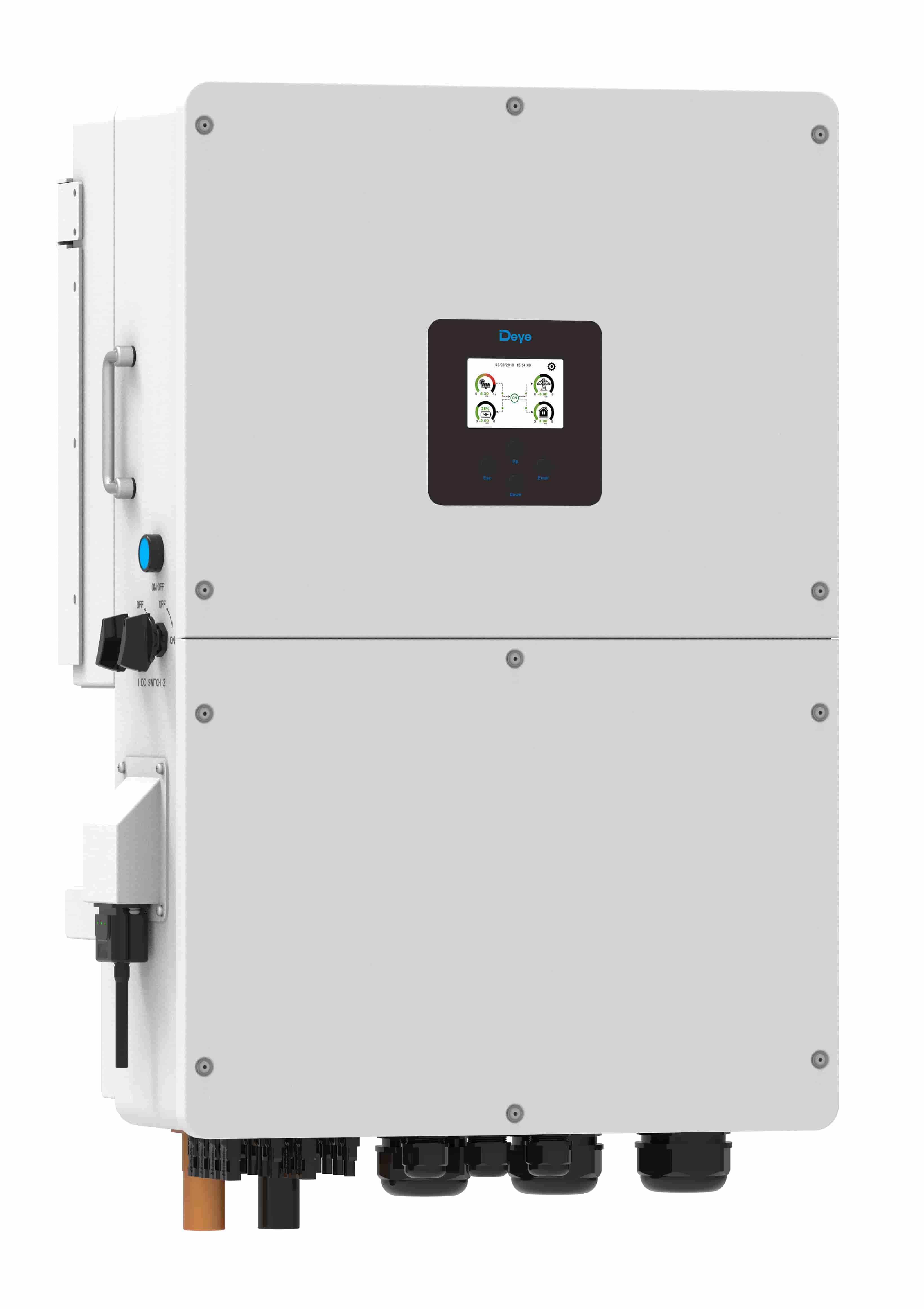

Deye SUN-29.9/30/35/40/50K-SG02HP3-EU-BM3/BM4-P Three Phase Hybrid Inverter

Deye SUN-29.9/30/35/40/50K-SG02HP3-EU-BM3/BM4-P is a high voltage three phase hybrid inverter designed for commercial and industrial energy storage applications.

Supporting 160-800V high voltage lithium batteries, multiple MPPT trackers, and flexible on-grid/off-grid operation, it integrates solar power generation, battery storage, grid interaction, and backup power management into one intelligent energy solution.

With up to 50kW output power, 160A charging and discharging current, 100% unbalanced output capability, and support for multiple units in parallel, this inverter provides efficient and scalable solar energy storage solutions.

Product Features

1. High Voltage Battery Compatibility

Supports 160-800V lithium-ion batteries, improving system efficiency and reducing energy loss during battery charging and discharging.

2. Powerful Three Phase Hybrid Operation

Combines PV, battery, grid, and backup loads in one system, providing reliable energy management for commercial and industrial applications.

3. Multiple MPPT Tracking

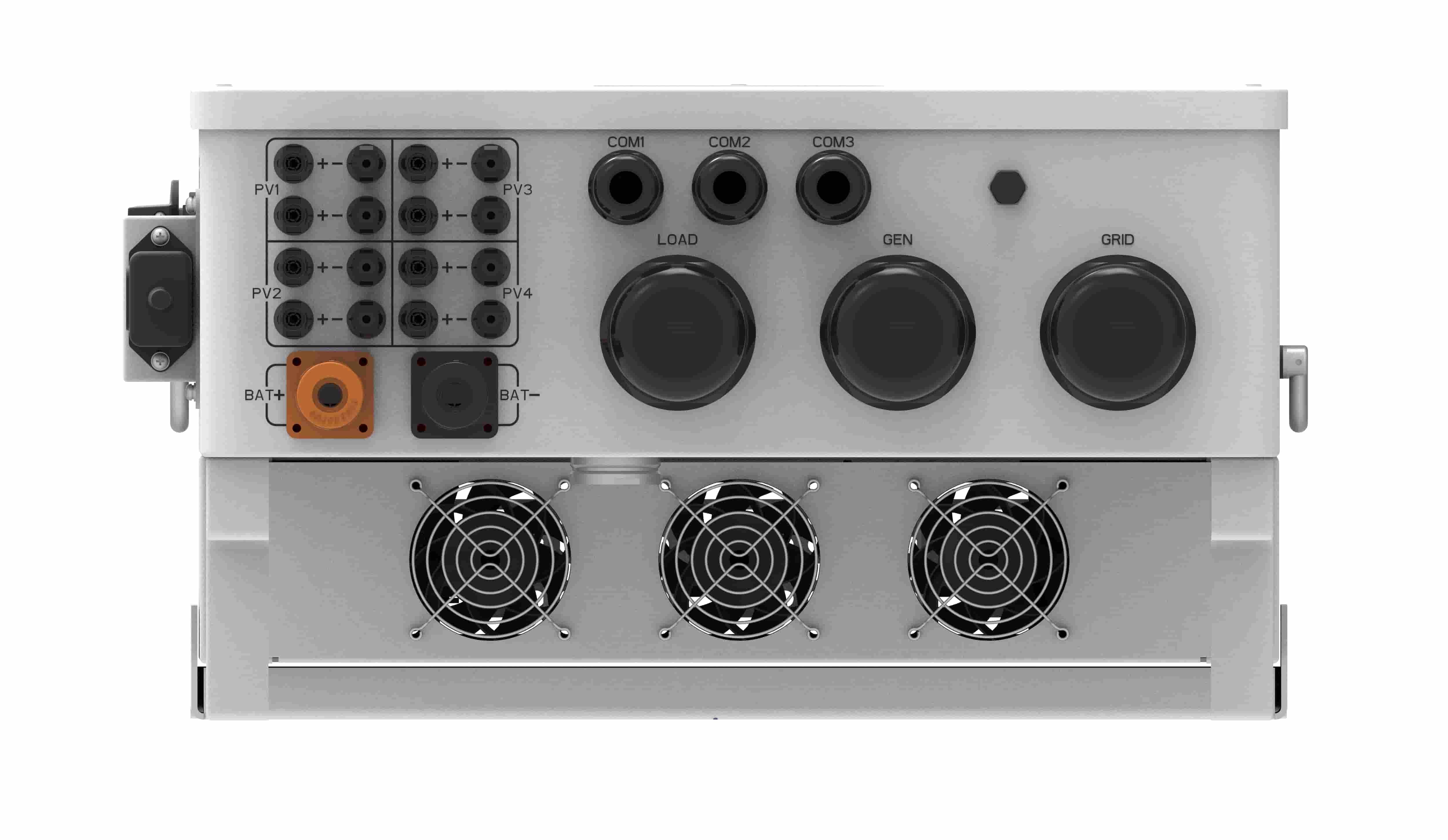

Equipped with 3 MPPT (29.9/30/35kW models) or 4 MPPT (40/50kW models), supporting flexible PV array design and improving solar energy harvesting.

4. High Battery Charging & Discharging Performance

Supports up to 160A charging and discharging current, enabling fast energy storage and high-power backup applications.

5. Flexible On-Grid & Off-Grid Operation

Supports grid-connected and backup operation with off-grid peak power up to 150% rated power for 10 seconds.

6. AC Coupling Retrofit Support

Allows integration with existing solar PV systems, making it easier to upgrade traditional PV installations into hybrid energy storage systems.

7. 100% Unbalanced Output

Supports 100% three-phase unbalanced output, providing better adaptability for different commercial load conditions.

8. Parallel Expansion Capability

Supports up to 10 units operating in parallel for larger energy storage projects and flexible system expansion.

9. Diesel Generator Integration

Supports storing energy from diesel generators, improving power reliability for off-grid and backup applications.

10. Smart Energy Scheduling

Supports six time periods for battery charging and discharging management, helping optimize energy usage and electricity costs.

Technical Specifications

Battery Input Data

ParameterSpecification
Battery TypeLithium-ion
Battery Voltage Range160-800V
Number of Battery Input1
Max Charging Current160A
Max Discharging Current160A
Battery CommunicationSelf-adaption to BMS
PV Input Data
ParameterSUN-29.9K / 30K / 35KSUN-40K / 50K
Max PV Access Power59.8kW / 60kW / 70kW80kW / 100kW
Max DC Input Power47.84kW / 48kW / 56kW64kW / 80kW
Max PV Input Voltage1000V1000V
Start-up Voltage180V180V
MPPT Voltage Range150-850V150-850V
Rated PV Input Voltage600V600V
MPPT Number34
Strings per MPPT2+2+22+2+2+2
Max Operating Current36A+36A+36A36A+36A+36A+36A
Short Circuit Current55A+55A+55A55A+55A+55A+55A
AC Input / Output Data
ParameterSpecification
Rated Output Power29.9kW / 30kW / 35kW / 40kW / 50kW
Max Apparent Power29.9kVA / 33kVA / 38.5kVA / 44kVA / 55kVA
Grid TypeThree Phase
Output Voltage220/380V, 230/400V
Frequency50Hz / 60Hz
Grid Connection3L+N+PE
Max AC Passthrough Current200A
Off-grid Peak Power150% Rated Power (10s)
Power Factor Range0.8 leading ~ 0.8 lagging
THDi<3%
Efficiency & Protection
ParameterSpecification
Max Efficiency97.6%
Euro Efficiency97.0%
MPPT Efficiency>99%
Cooling MethodIntelligent Air Cooling
Protection DegreeIP65
Operating Temperature-40℃ to +60℃
Maximum Altitude3000m
Noise Level≤65dB
Safety & Communication
ParameterSpecification
DisplayLCD
CommunicationWiFi / RS485 / CAN
MonitoringGPRS / WiFi / Bluetooth / 4G
Surge ProtectionType II DC & AC
Protection FunctionsDC reverse polarity, AC overcurrent, overvoltage, short circuit, anti-islanding, insulation monitoring, residual current detection
Optional FunctionAFCI
Mechanical Data
ParameterSpecification
Dimensions528 × 793 × 278 mm
Weight65kg
Inverter TopologyNon-isolated
IP RatingIP65
Warranty5 Years (extendable depending on region)
