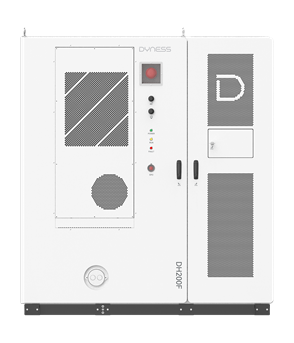

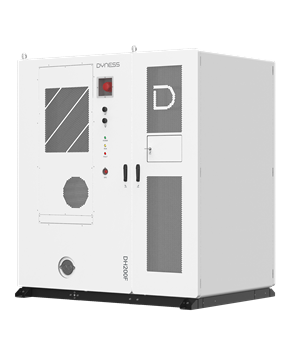

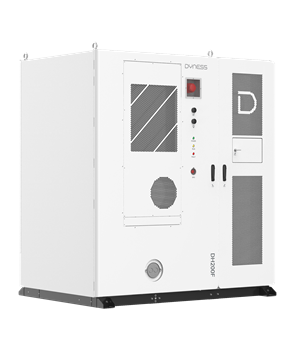

Dyness ESS DH200F-C260 Outdoor PV ESS All-in-one Energy Storage Cabinet
- Category: C&I ESS Solution
- Features
Product Description
DH200F-C26
Dyness DH200F-C260 is an advanced outdoor PV + ESS all-in-one energy storage solution designed for commercial and industrial applications. Integrating a high-capacity battery system, power conversion system (PCS), and photovoltaic inputs into a single compact cabinet, it delivers efficient energy management, flexible power control, and reliable operation in various scenarios.
With a 261kWh battery capacity and up to 252kW PV input capability, the DH200F-C260 enables optimized solar energy utilization, peak shaving, and energy cost reduction. Supporting seamless on-grid and off-grid switching, intelligent energy management, and scalable expansion with up to 10 units in AC parallel connection, the system can be expanded to 2.61MWh to meet the growing energy demands of commercial and industrial projects.
Built with a robust outdoor cabinet design and comprehensive safety protection, the DH200F-C260 provides a reliable, flexible, and cost-effective energy storage solution for renewable energy integration, backup power, and smart energy applications.
Product Features
Flexible Expansion
The Dyness DH200F-C260 supports up to 10 units in AC parallel connection, enabling flexible system expansion up to 2.61MWh. This scalable design allows the system to adapt to different commercial and industrial energy requirements while supporting future capacity upgrades.
Fast On/Off-Grid Switching
With a transfer time of less than 20ms, the DH200F-C260 ensures seamless switching between grid-connected and off-grid modes, providing reliable power continuity and enhanced energy security for critical applications.
Comprehensive Safety Protection
Equipped with multi-level fire suppression and explosion-proof design, the system integrates advanced safety mechanisms to ensure stable and secure operation throughout the entire energy storage lifecycle.
Smart Energy Management
Featuring intelligent monitoring and OTA update capabilities, the DH200F-C260 enables real-time system supervision, remote maintenance, and continuous performance optimization for efficient and convenient energy management.
Technical Parameters
| Item | Parameter |
|---|---|
| Product Model | DH200F-C260 |
| Battery Type | LiFePO4 |
| Nominal Capacity | 261kWh |
| Rated Power | 250kW / 125kW |
| PV Input Power | 252kW (63kW × 4) |
| MPPT Quantity | 4 |
| Battery Voltage Range | 754-936Vdc |
| Maximum Efficiency | 88% |
| On/Off-grid Switching Time | <20ms |
| Parallel Expansion | Up to 10 Units |
| Protection Level | IP55 |
| Communication | Ethernet / 4G / RS485 / CAN |
| Dimensions (W×D×H) | 2000×1346×2200mm |
| Weight | 2900±100kg |
FAQ:
1. Who are we?
We are based in Anhui, China, start from 2018,sell to Northern Europe(10.00%),Eastern Europe(10.00%),Western Europe(8.00%),Domestic Market(8.00%),Mid East(8.00%),Southern Europe(8.00%),Central America(8.00%),South America(8.00%),North America(8.00%),Africa(6.00%),Eastern Asia(5.00%),Oceania(5.00%),Southeast Asia(5.00%),South Asia(3.00%).There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final inspection before shipment;
3.What can you buy from us?
Solar Panels, Solar Inverters, Energy Storage Batteries, Solar Systems
4. why should you buy from us not from other suppliers?
New energy integrated company, more than 10 years experience in PV industry, having complete supply chain for solar modules
inverters and energy storage products. Also, provide the whole system design, development and implementation.
