Dyness High Voltage BF100-C100E C&I ESS Lithium Battery Cabinet
- Category: C&I ESS Solution
- Features
Product Description

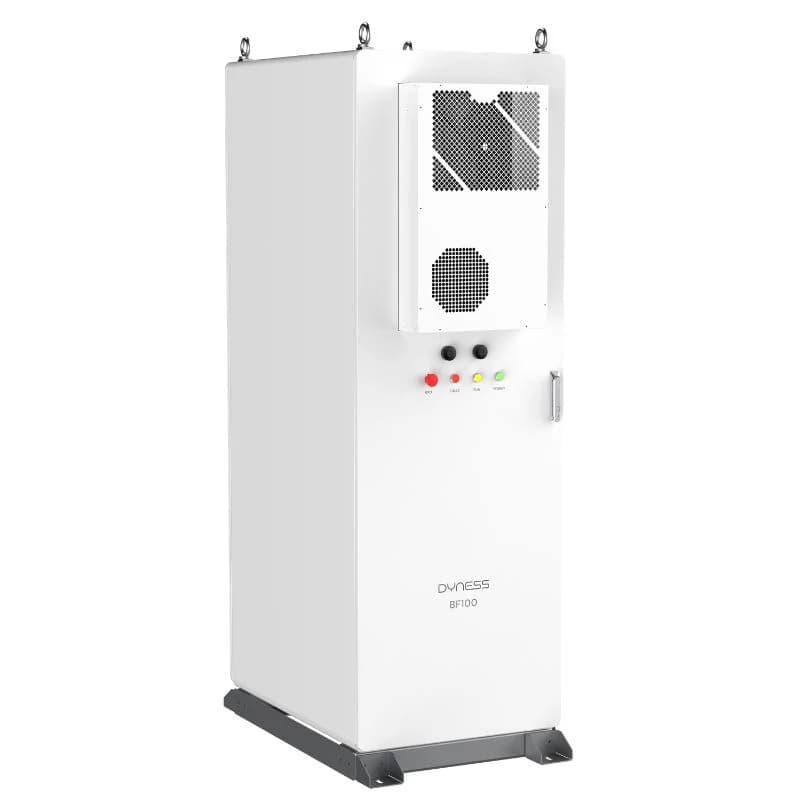

Dyness High Voltage BF100-C100E C&I ESS Lithium Battery Cabinet
Dyness BF100-C100 100kWh Commercial & Industrial Energy Storage System
The Dyness BF100-C100 is a high-performance 100kWh commercial and industrial energy storage system (C&I ESS) designed for solar energy storage, peak shaving, backup power, and intelligent energy management applications.
Featuring advanced LiFePO₄ battery technology, an integrated modular design, and intelligent battery management capabilities, the BF100-C100 provides a safe, efficient, and scalable energy storage solution for businesses, industrial facilities, microgrids, and renewable energy projects.
With its outdoor-rated cabinet design, flexible communication interfaces, and compatibility with photovoltaic systems, the Dyness BF100-C100 enables users to maximize renewable energy utilization, reduce electricity costs, and improve power reliability.
The system delivers 100kWh of usable energy capacity in a compact outdoor cabinet, making it ideal for commercial applications requiring reliable daily cycling, energy backup, and grid-support functions.
Key Features
1. 100kWh High-Capacity Energy Storage Solution
The Dyness BF100-C100 It supports:
Solar self-consumption optimization
Peak shaving and load shifting
Backup power supply
Renewable energy integration
Microgrid applications
Grid ancillary services
2. Advanced LiFePO₄ Battery Technology
The BF100-C100 adopts lithium iron phosphate (LiFePO₄ / LFP) battery chemistry, offering:
High thermal stability
Enhanced safety performance
Long service life
Excellent charge and discharge efficiency
3. Modular Design for Flexible Expansion
The modular architecture allows flexible configuration and easier system maintenance.
Benefits include:
Scalable energy capacity
Simplified installation
Convenient operation and maintenance
Reduced system downtime
4. Intelligent Battery Management System (BMS)
The built-in Battery Management System continuously monitors battery operation and provides multiple protection functions, including:
Overcharge protection
Over-discharge protection
Overcurrent protection
Temperature monitoring
Battery status management
5. Safe Outdoor Cabinet Design
Designed for outdoor installation, the BF100-C100 features:
IP55 protection rating
Corrosion-resistant cabinet structure
Air cooling system
Wide operating temperature range
6. Multiple Communication Interfaces
The system supports multiple communication methods for intelligent monitoring and integration:
Ethernet
4G
RS485

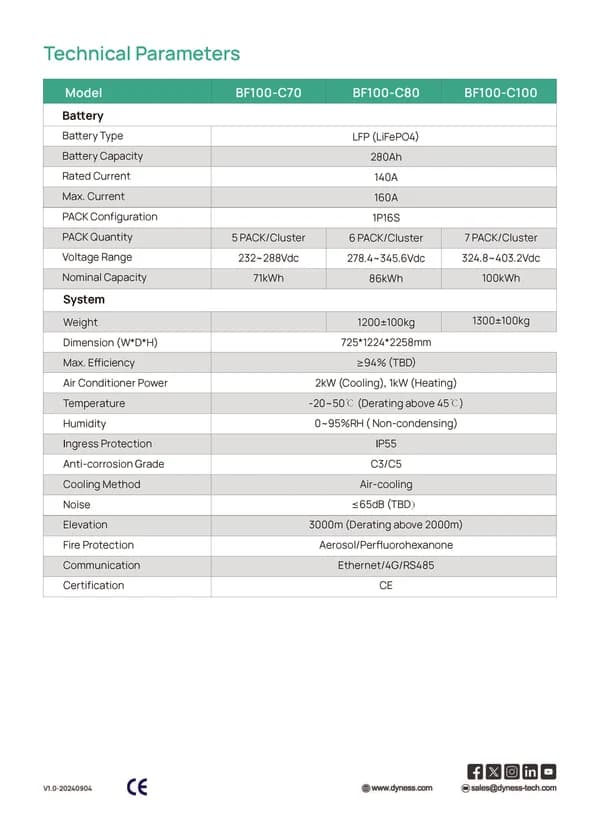

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | Dyness BF100-C100 |
| Energy Capacity | 100kWh |
| Battery Type | LiFePO₄ (LFP) |
| Battery Configuration | 1P16S × 7 PACK |
| Rated Current | 140A |
| Maximum Current | 160A |
| Voltage Range | 324.8–403.2Vdc |
| Cooling Method | Air Cooling |
| Maximum Efficiency | ≥94% |
| Communication | Ethernet / 4G / RS485 |
| Protection Rating | IP55 |
| Anti-corrosion Grade | C3 / C5 |
| Operating Temperature | -20℃ to 50℃ |
| Maximum Noise Level | ≤65dB |
| Dimensions (W×D×H) | 725 × 1224 × 2258mm |
| Weight | Approx. 1300±100kg |
| Installation Type | Outdoor Cabinet |
| Certification | CE / UN38.3 / LVD |
FAQ:
1. What is the Dyness BF100-C100 energy storage system?
The Dyness BF100-C100 is a 100kWh commercial and industrial battery energy storage system designed for solar storage, backup power, and intelligent energy management applications.
It combines LiFePO₄ battery technology, an intelligent BMS, and modular cabinet design to provide reliable long-term energy storage.
2. What applications is the BF100-C100 suitable for?
The BF100-C100 is suitable for:
Commercial buildings
Industrial facilities
Solar PV storage projects
Microgrids
Backup power systems
Energy management applications
3. Can the Dyness BF100-C100 be used with solar panels?
Yes. The BF100-C100 can be integrated with solar PV systems to store excess solar generation and provide energy when electricity demand increases.
4. Does the BF100-C100 include an inverter?
No. The BF100-C100 is a battery energy storage system and requires connection with a compatible external inverter or PCS system.
5. What battery technology does Dyness BF100-C100 use?
The system uses LiFePO₄ lithium battery technology, which provides high safety, excellent thermal stability, and long cycle performance.
6. Is BF100-C100 suitable for outdoor installation?
Yes. The BF100-C100 features an outdoor cabinet design with IP55 protection and corrosion resistance, allowing reliable operation in outdoor environments.
7. How does BF100-C100 help reduce electricity costs?
By storing electricity during low-cost periods or from solar generation and using stored energy during peak demand periods, the system helps reduce electricity consumption costs through energy arbitrage and peak shaving.
