Dyness PowerBrick Plus 16.07kWh IP65 Solar Battery
- Category: Dyness LiFePO4 Battery
- Features
Product Description

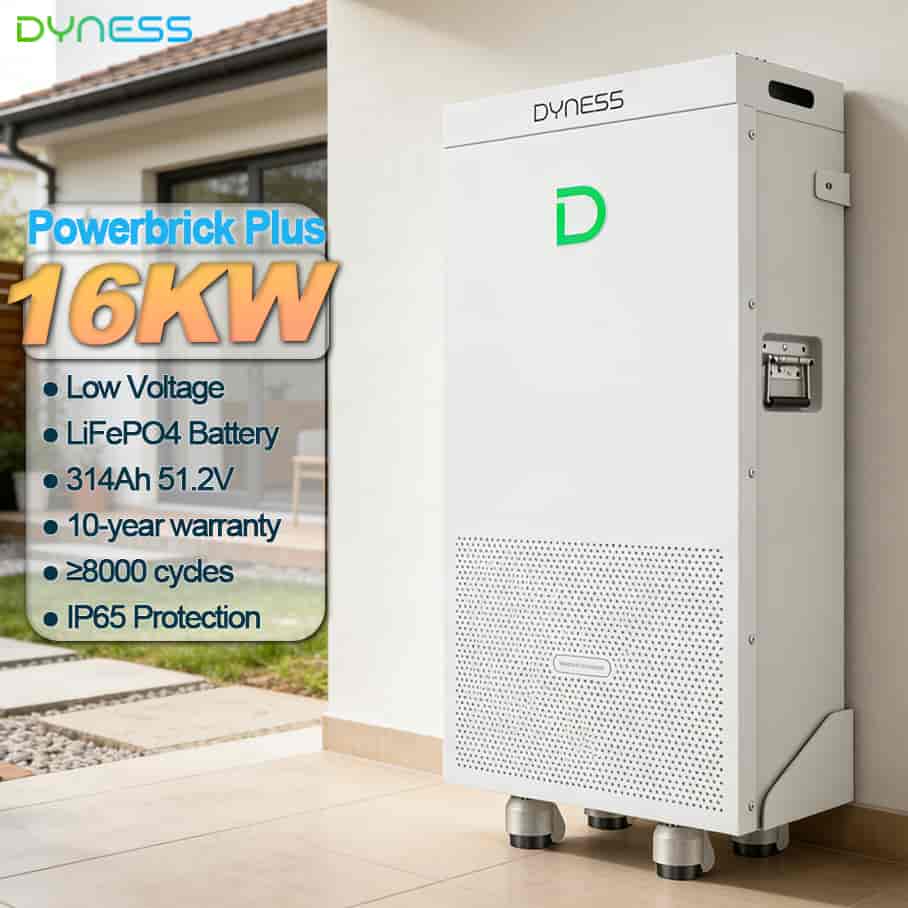

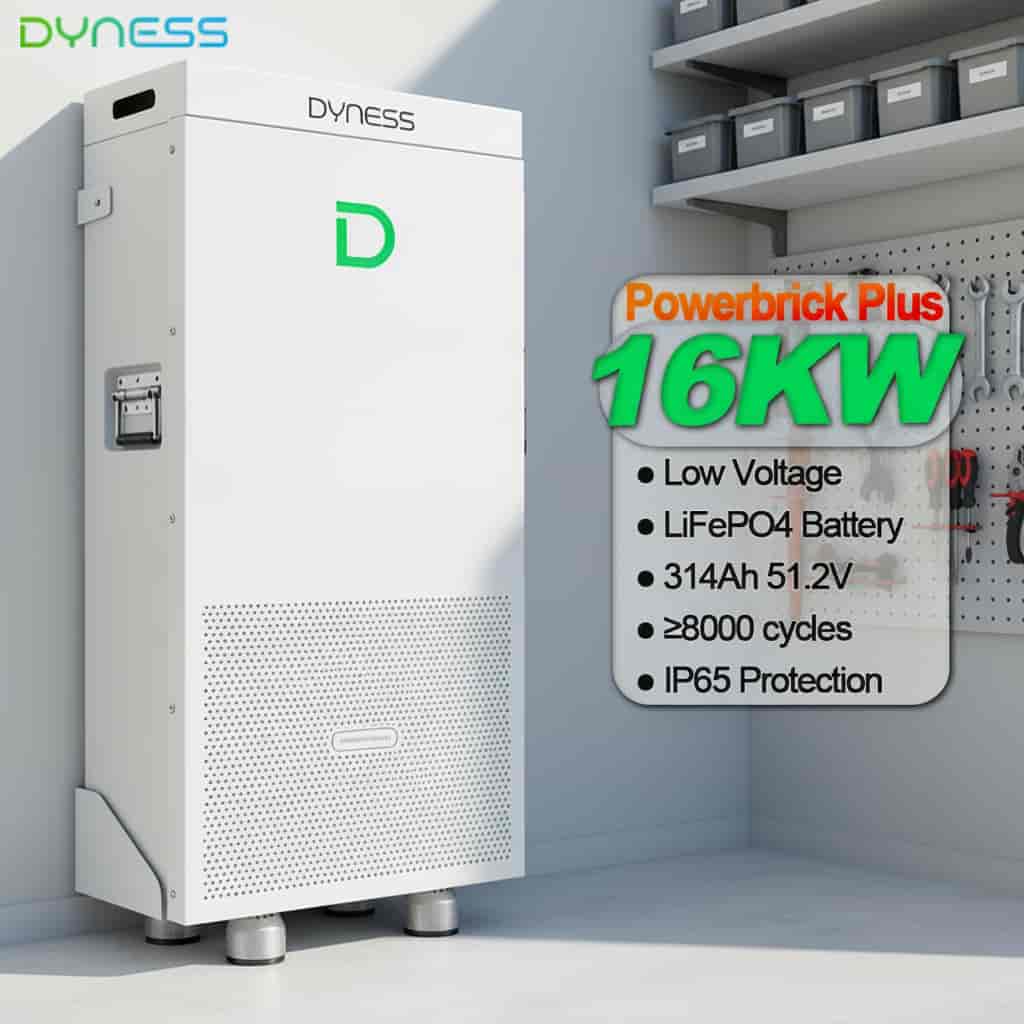

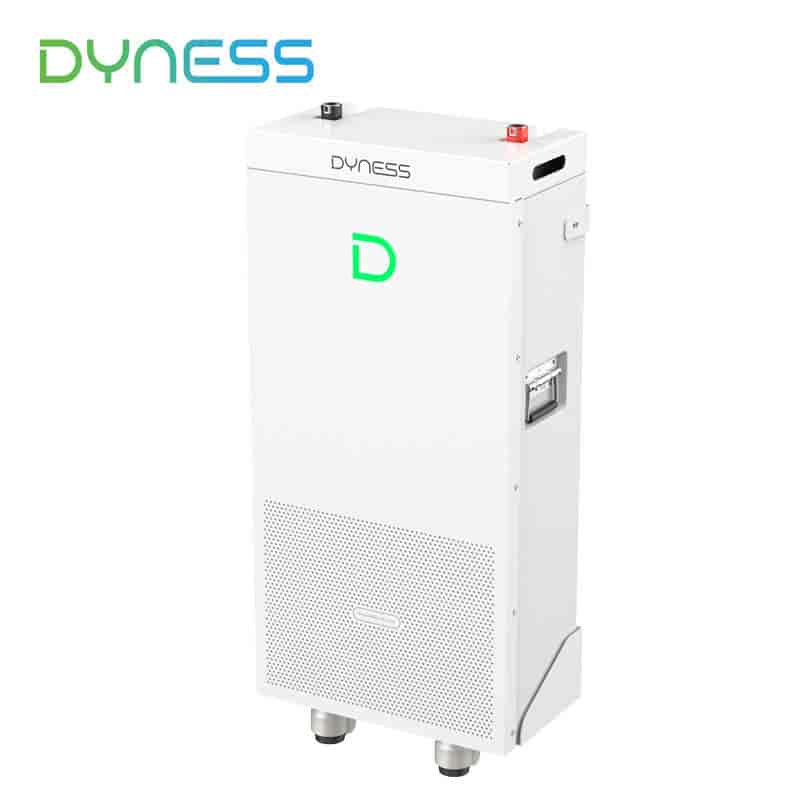

Dyness PowerBrick Plus 16.07kWh 314Ah IP65 Solar Battery
The Dyness PowerBrick Plus 16.07kWh LiFePO4 Battery is a low-voltage energy storage solution designed for residential solar systems and home backup power. Featuring a 51.2V nominal voltage and 314Ah capacity, it provides 16.07kWh of nominal energy and 15.27kWh of usable energy.
With IP65 protection, a built-in battery management system (BMS), and support for up to 50 units in parallel, this Dyness solar battery offers flexible installation and scalable energy storage for modern homes. It supports Wi-Fi and app monitoring, making it suitable for solar self-consumption and reliable home energy management.
Product Features
16.07kWh High Capacity: Provides substantial energy storage for residential solar systems and backup power applications.
LiFePO4 Battery Technology: Uses lithium iron phosphate cells for enhanced safety and long-term performance.
IP65 Protection: Designed for indoor and outdoor installation when installed according to manufacturer guidelines.
High Power Output: Supports up to 200A continuous charge and discharge current, with a maximum charge and discharge power of 10.24kW.
Scalable Energy Storage: Supports up to 50 battery units in parallel for expanding household energy storage capacity.
Long Cycle Life: Rated for at least 8,000 cycles under specified test conditions, with a 10-year warranty subject to Dyness warranty terms.
Smart Monitoring: Wi-Fi connectivity and app monitoring help users track battery status and performance.
Flexible Installation: Supports floor-mounted or wall-mounted installation.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dyness |
| Model | PowerBrick Plus |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Battery Energy | 16.07kWh |
| Usable Battery Energy | 15.27kWh |
| Nominal Capacity | 314Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 44.8–57.6V |
| Recommended Charge Voltage | 56.5V |
| Recommended Charge/Discharge Current | 140A |
| Maximum Charge Current | 200A |
| Maximum Discharge Current | 200A |
| Peak Discharge Current | 300A for 2 minutes at 25°C |
| Recommended Charge/Discharge Power | 7.168kW |
| Maximum Charge Power | 10.24kW |
| Maximum Discharge Power | 10.24kW |
| Depth of Discharge (DoD) | 95% |
| Cycle Life | ≥8,000 cycles under specified test conditions |
| Charging Temperature | 0°C to 55°C; down to -20°C with optional heating |
| Discharging Temperature | -20°C to 55°C |
| Protection Rating | IP65 |
| Communication | CAN / RS485 |
| Monitoring | Wi-Fi + App |
| Safety Protection | Built-in aerosol fire extinguisher |
| Installation | Floor-mounted / Wall-mounted |
| Dimensions (W × D × H) | 435 × 235 × 850mm |
| Net Weight | 119kg |
| Maximum Parallel Units | Up to 50 |
| Warranty | 10 years, subject to manufacturer terms |
| Certifications and Safety Standards | UN38.3 / IEC 62619 |
| Compatible Inverters | Solis, GoodWe, Growatt, SMA, Victron, Deye, APsystems and others; verify model compatibility |
FAQ
Q1: What is the capacity of the Dyness PowerBrick Plus battery?
The Dyness PowerBrick Plus has a nominal energy capacity of 16.07kWh and a usable energy capacity of 15.27kWh.
Q2: Is the Dyness PowerBrick Plus suitable for outdoor installation?
Yes. Its IP65 protection rating supports outdoor installation, provided the installation environment and mounting comply with the manufacturer's requirements.
Q3: Can the Dyness PowerBrick Plus be connected to an inverter?
Yes. It supports CAN and RS485 communication and is compatible with selected inverters from brands such as Deye, Growatt, GoodWe, Solis and Victron. Confirm the exact inverter model and firmware compatibility before installation.
Q4: Can multiple Dyness PowerBrick Plus batteries be connected in parallel?
Yes. Up to 50 units can be connected in parallel, subject to system design, installation requirements and manufacturer guidelines.
Q5: What is the cycle life of the Dyness PowerBrick Plus?
The battery is rated for at least 8,000 cycles under specified test conditions: 0.2C charge and discharge, 25°C, 95% depth of discharge and 70% end-of-life capacity.
Q6: Does the Dyness PowerBrick Plus support remote monitoring?
Yes. Wi-Fi and app connectivity enable users to monitor battery status and operating information.
Q7: What is the warranty period?
The Dyness PowerBrick Plus comes with a 10-year warranty, subject to the manufacturer's official warranty terms and conditions.
