Product Description

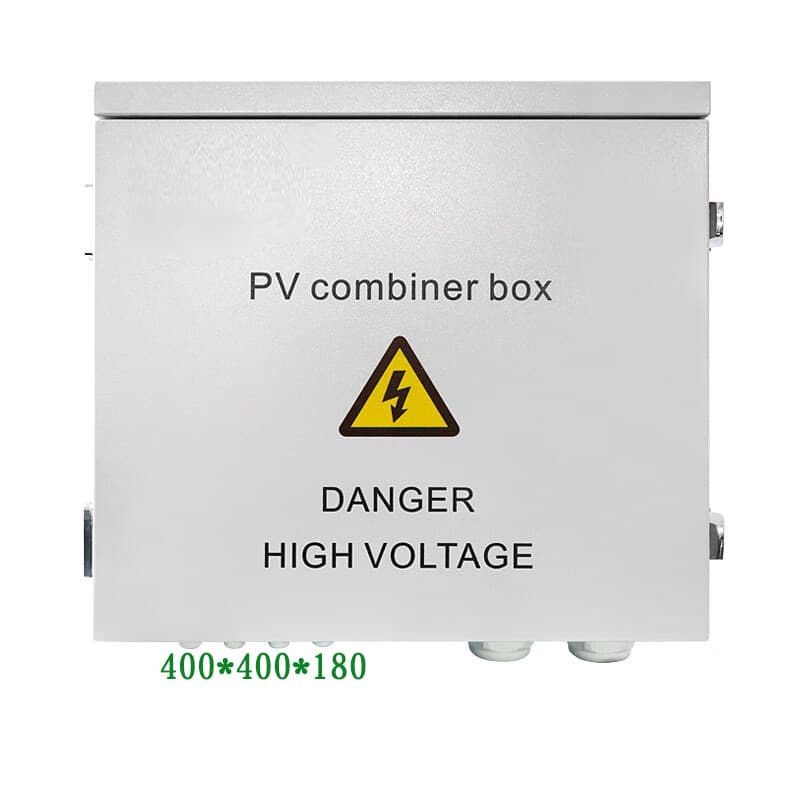

Household Smart 2 In 1 Out PV Combiner Box

The Household Smart 2 In 1 Out PV Combiner Box is designed for residential solar photovoltaic (PV) systems. It combines two PV string inputs into one DC output, helping simplify system wiring and centralize DC circuit protection between solar panels and the inverter.

Depending on the configuration, the solar DC combiner box can integrate DC fuses, a surge protection device (SPD), and a DC isolator for overcurrent protection, surge protection, and safe circuit disconnection. Its compact enclosure makes it suitable for residential rooftop solar installations and other small PV systems.

Product Features

• 2 In 1 Out Design: Combines two solar PV string inputs into one DC output.

• DC Circuit Protection: Optional DC fuses and circuit isolation help protect PV circuits.

• Surge Protection: An integrated DC SPD helps protect against transient overvoltage.

• Outdoor Enclosure: Available with weather-resistant housing for suitable outdoor installations.

• Easy Installation: Organized wiring simplifies connection between PV strings and the inverter.

• Residential Solar Application: Suitable for household rooftop PV systems and compatible small solar installations.

Specifications
