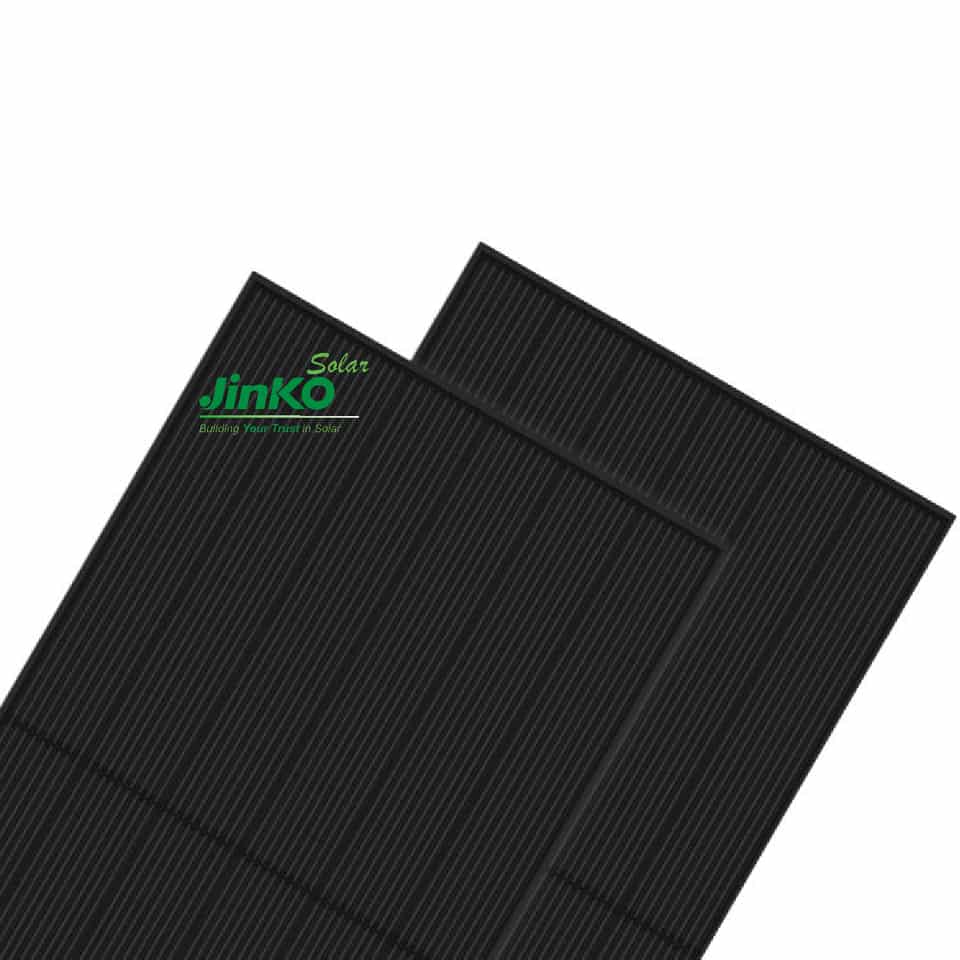

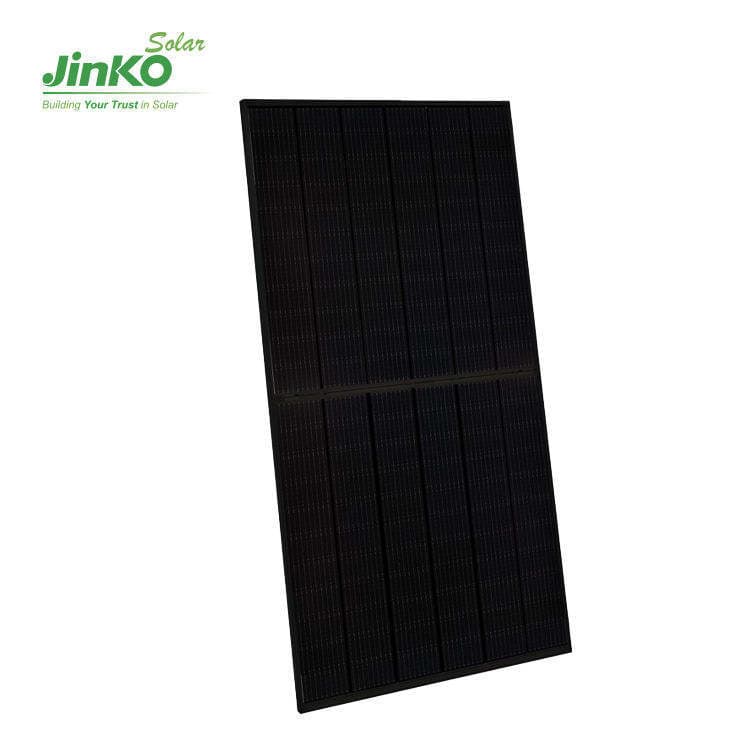

Jinko 395-415W MONO-FACIAL Tiger N-Type 66TR Solar Panels
- Category: Jinko Solar Panels
- Features
Product Description
Jinko 395-415W MONO-FACIAL Tiger N-Type 66TR Solar Panels
Jinko Tiger N-Type 66TR 395-415W Mono-Facial Solar Panel is a high-efficiency PV module designed for residential, commercial, and utility-scale solar applications. Featuring advanced N-type monocrystalline technology and 132 half-cell configuration, it delivers excellent power output, lower energy loss, and enhanced long-term reliability.
With a power range of 395W to 415W and module efficiency up to 21.74%, this solar panel provides stable performance under different environmental conditions. The optimized Hot 2.0 technology, multi-busbar design, and strong mechanical structure ensure higher energy generation and reliable operation throughout its service life.
Product Features
High Efficiency N-Type Technology
- Uses advanced N-type monocrystalline cells for improved conversion efficiency.
- Reduces light-induced degradation (LID) and enhances long-term power output.
Hot 2.0 Technology
- Improves module reliability and electrical performance.
- Provides better resistance against potential performance degradation.
Multi Busbar Technology
- Enhances current collection capability.
- Reduces internal resistance and improves module efficiency.
High Power Output
- Available from 395W to 415W with efficiency up to 21.74%.
- Suitable for maximizing energy yield in limited installation areas.
Excellent Durability
- Certified for 2400Pa wind load and 5400Pa snow load.
- Resistant to PID, salt mist, and ammonia environments.
Long-Term Performance Warranty
- 25-year product warranty
- 30-year linear power warranty
- Guaranteed power output up to 87.4% after 30 years.
Specifications
Electrical Characteristics (STC)
| Model | JKM395N-6RL3-B | JKM400N-6RL3-B | JKM405N-6RL3-B | JKM410N-6RL3-B | JKM415N-6RL3-B |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 395Wp | 400Wp | 405Wp | 410Wp | 415Wp |
| Module Efficiency | 20.69% | 20.96% | 21.22% | 21.48% | 21.74% |
| Maximum Power Voltage (Vmp) | 37.91V | 38.10V | 38.28V | 38.46V | 38.64V |
| Maximum Power Current (Imp) | 10.42A | 10.50A | 10.58A | 10.66A | 10.74A |
| Open Circuit Voltage (Voc) | 46.22V | 46.41V | 46.59V | 46.77V | 46.95V |
| Short Circuit Current (Isc) | 11.00A | 11.08A | 11.16A | 11.24A | 11.32A |
Electrical Characteristics (NOCT)
| Parameter | 395W | 400W | 405W | 410W | 415W |
|---|---|---|---|---|---|
| Maximum Power | 295W | 298W | 302W | 306W | 309W |
| Maximum Power Voltage | 35.19V | 35.38V | 35.57V | 35.71V | 35.85V |
| Maximum Power Current | 8.37A | 8.43A | 8.49A | 8.56A | 8.63A |
| Open Circuit Voltage | 43.63V | 43.80V | 43.97V | 44.14V | 44.31V |
| Short Circuit Current | 8.88A | 8.95A | 9.01A | 9.08A | 9.14A |
Mechanical Characteristics
| Parameter | Specification |
|---|---|
| Solar Cell Type | N-Type Monocrystalline |
| Module Type | Mono-Facial |
| Cell Configuration | 132 Cells (2×66 Half Cells) |
| Dimensions | 1855 × 1029 × 30 mm |
| Weight | 20.8 kg |
| Front Glass | 3.2mm Anti-Reflection Coated Tempered Glass |
| Frame Material | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Cable | 4mm² |
| Connector | Compatible PV Connector |
Operating Parameters
| Parameter | Specification |
|---|---|
| Operating Temperature | -40℃ ~ +85℃ |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 20A |
| Power Tolerance | 0 ~ +3% |
| NOCT | 45 ± 2℃ |
| Temperature Coefficient of Pmax | -0.34%/℃ |
| Temperature Coefficient of Voc | -0.28%/℃ |
| Temperature Coefficient of Isc | 0.048%/℃ |
