Jinko-400-420W MONO-FACIAL MODULE Tiger N-Type 66TR Solar Panels
- Category: Jinko Solar Panels
- Features
Product Description

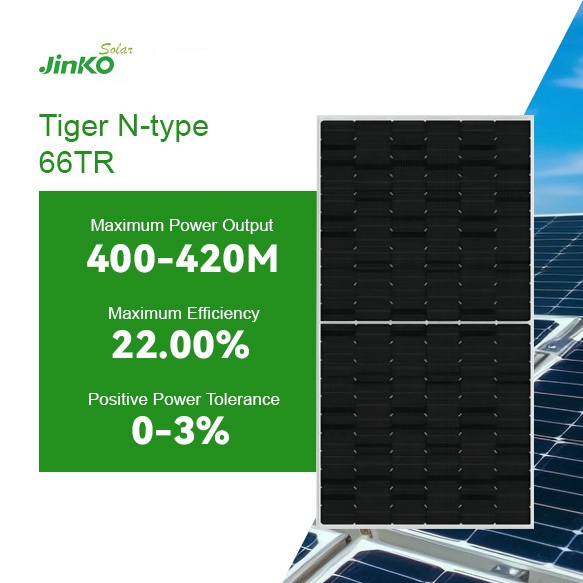

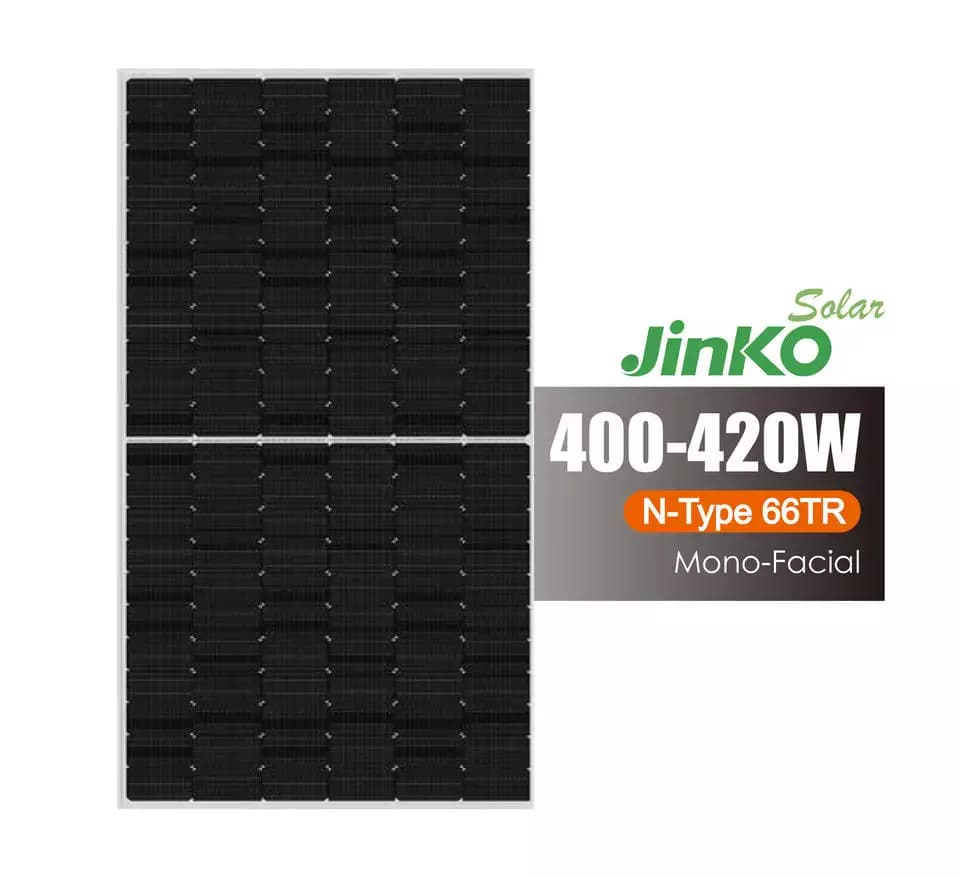

400-420W MONO-FACIAL MODULE Tiger N-Type 66TR Solar Panels
The Jinko Tiger N-Type 66TR 400-420W Mono-Facial Solar Panel is designed with advanced N-Type mono-crystalline cell technology, delivering high efficiency, excellent reliability, and long-term energy output. Featuring 132 half-cut cells, Multi Busbar Technology, and Hot 2.0 technology, this module achieves improved power generation performance while reducing LID and LETID effects.
With a power range of 400W to 420W and module efficiency up to 22.0%, the Tiger N-Type 66TR module is suitable for residential, commercial, and utility-scale solar applications. Its enhanced mechanical structure supports high wind and snow loads, ensuring stable operation under various environmental conditions.
Product Features
● Advanced N-Type Cell Technology
Uses N-Type mono-crystalline cells with lower degradation characteristics, providing higher energy yield and improved long-term performance compared with traditional P-Type modules.
● Multi Busbar Technology
Optimized busbar design improves light utilization, current collection efficiency, and module reliability for higher power output.
● Hot 2.0 Technology
Enhances module durability with better resistance against LID and LETID, maintaining stable performance throughout the product lifespan.
● High Power Output & Efficiency
Provides up to 420W power output and 22.00% module efficiency, maximizing energy production within limited installation space.
● Excellent Mechanical Strength
Certified to withstand 2400Pa wind load and 5400Pa snow load, making it reliable for challenging installation environments.
● Enhanced Environmental Resistance
Designed with excellent PID resistance and strong protection against salt mist and ammonia corrosion for improved outdoor durability.
● Long-Term Warranty Protection
Offers a 15-year product warranty and 30-year linear power warranty, with guaranteed output performance over the module lifetime.
Product Specifications
Electrical Characteristics (STC)
| Module Model | JKM400N-6RL3 | JKM405N-6RL3 | JKM410N-6RL3 | JKM415N-6RL3 | JKM420N-6RL3 |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 400W | 405W | 410W | 415W | 420W |
| Module Efficiency | 20.96% | 21.22% | 21.48% | 21.74% | 22.00% |
| Maximum Power Voltage (Vmp) | 36.33V | 36.48V | 36.64V | 36.79V | 36.94V |
| Maximum Power Current (Imp) | 11.01A | 11.10A | 11.19A | 11.28A | 11.37A |
| Open Circuit Voltage (Voc) | 46.05V | 46.30V | 46.55V | 46.77V | 47.00V |
| Short Circuit Current (Isc) | 11.73A | 11.84A | 11.95A | 12.06A | 12.17A |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
Electrical Characteristics (NOCT)
| Parameter | Value |
|---|---|
| Maximum Power Range | 298W - 313W |
| Vmp Range | 33.59V - 33.96V |
| Imp Range | 8.88A - 9.22A |
| Voc Range | 43.47V - 44.36V |
| Isc Range | 9.47A - 9.83A |
| Nominal Operating Cell Temperature | 45±2℃ |
Mechanical Characteristics
| Item | Specification |
|---|---|
| Solar Cell Type | N-Type Mono-crystalline |
| Cell Arrangement | 132 Cells (2×66) |
| Module Dimensions | 1855 × 1029 × 30 mm |
| Module Weight | 20.8 kg |
| Front Glass | 3.2mm Anti-Reflection Coated Tempered Glass |
| Frame Material | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Cable Type | TUV 4.0mm² Cable |
| Operating Temperature | -40℃ ~ +85℃ |
| Maximum System Voltage | 1000/1500V DC |
| Maximum Series Fuse Rating | 20A |
