Jinko 400-420W Tiger Neo N-type 54HL4-B Solar Panels
- Category: Jinko Solar Panels
- Features
Product Description

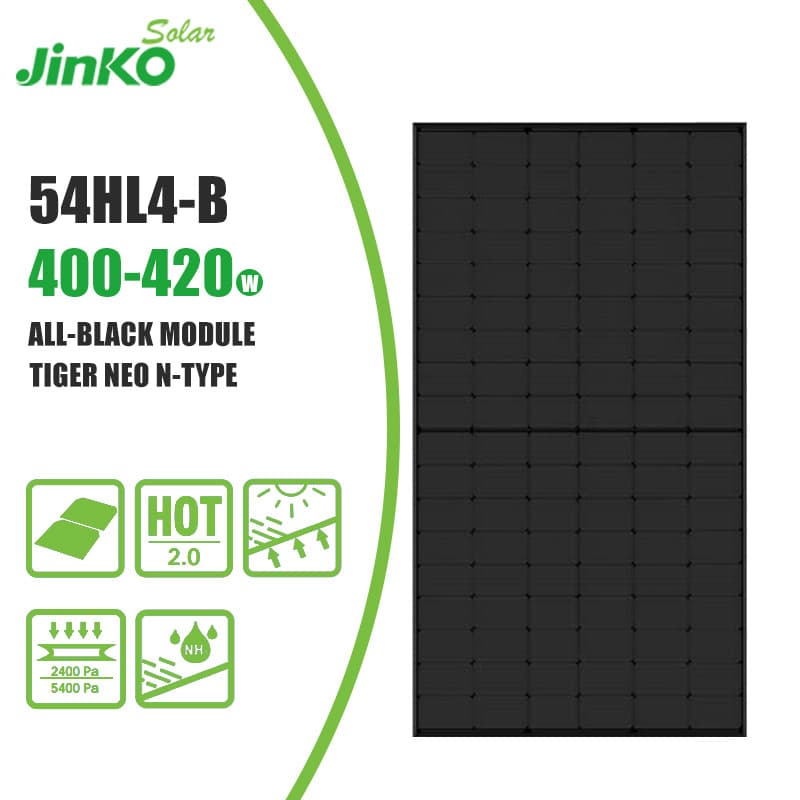

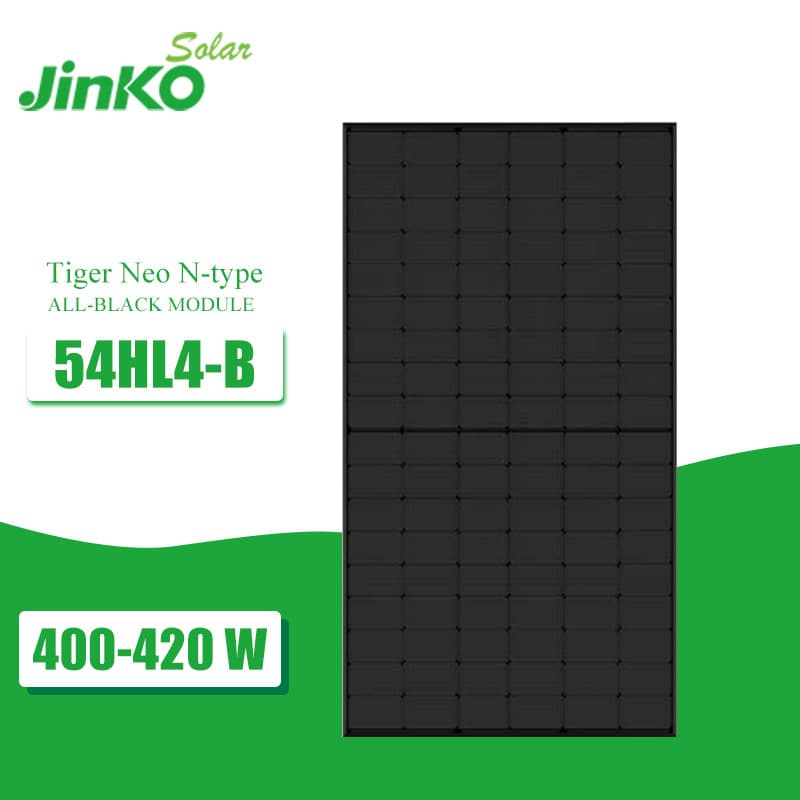

Jinko 400-420W Tiger Neo N-type 54HL4-B Solar Panels
The Jinko Tiger Neo N-Type 54HL4-B 400-420W Solar Panel features advanced N-Type mono-crystalline cell technology, delivering high power output, excellent efficiency, and superior long-term reliability. With 108 half-cut cells, optimized cell design, and improved temperature performance, this module achieves stable energy generation in various environmental conditions.
Offering a power range of 400W to 420W and module efficiency up to 21.51%, the Tiger Neo 54HL4-B is an ideal solution for residential, commercial, and distributed solar projects requiring high performance and dependable energy production.
Product Features
● Advanced N-Type Technology
Adopts N-Type mono-crystalline cells with lower degradation characteristics, improving long-term power output and system energy yield.
● High Efficiency & Power Output
Provides up to 420W maximum power output with module efficiency reaching 21.51%, helping maximize electricity generation with limited installation space.
● Half-Cut Cell Design
The 108-cell half-cut configuration reduces internal losses and improves module performance, especially under partial shading conditions.
● Excellent Temperature Performance
With a low temperature coefficient of -0.29%/℃, the module maintains stable output even in high-temperature environments.
● Enhanced Durability
Designed with anti-reflective tempered glass, anodized aluminum frame, and IP68-rated junction box for reliable outdoor operation.
● Strong Mechanical Reliability
Supports demanding installation environments with excellent resistance to wind, snow, and harsh weather conditions.
● Long-Term Warranty
Provides 25-year product warranty and 30-year linear power warranty, ensuring long-lasting system performance.
Product Specifications
Electrical Characteristics (STC)
| Model | JKM400N-54HL4-B | JKM405N-54HL4-B | JKM410N-54HL4-B | JKM415N-54HL4-B | JKM420N-54HL4-B |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 400W | 405W | 410W | 415W | 420W |
| Module Efficiency | 20.48% | 20.74% | 21.00% | 21.25% | 21.51% |
| Maximum Power Voltage (Vmp) | 31.28V | 31.47V | 31.66V | 31.85V | 32.04V |
| Maximum Power Current (Imp) | 12.79A | 12.87A | 12.95A | 13.03A | 13.11A |
| Open Circuit Voltage (Voc) | 37.38V | 37.58V | 37.77V | 37.96V | 38.15V |
| Short Circuit Current (Isc) | 13.55A | 13.62A | 13.68A | 13.74A | 13.80A |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
Electrical Characteristics (NOCT)
| Parameter | Value |
|---|---|
| Maximum Power Range | 301W - 316W |
| Vmp Range | 28.89V - 29.97V |
| Imp Range | 10.30A - 10.54A |
| Voc Range | 35.50V - 36.24V |
| Isc Range | 10.94A - 11.14A |
| Nominal Operating Cell Temperature | 45±2℃ |
| Item | Specification |
|---|---|
| Solar Cell Type | N-Type Mono-crystalline |
| Cell Arrangement | 108 Cells (6×18) |
| Module Dimensions | 1722 × 1134 × 30 mm |
| Module Weight | 22 kg |
| Front Glass | 3.2mm Anti-Reflection Coated Tempered Glass |
| Frame Material | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Cable | TUV 1×4.0mm² |
| Operating Temperature | -40℃ ~ +85℃ |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 25A |
