Jinko-410-430W MONO-FACIAL MODULE Tiger Neo N-type 54HL4-(V) Solar Panels
- Category: Jinko Solar Panels
- Features
Product Description

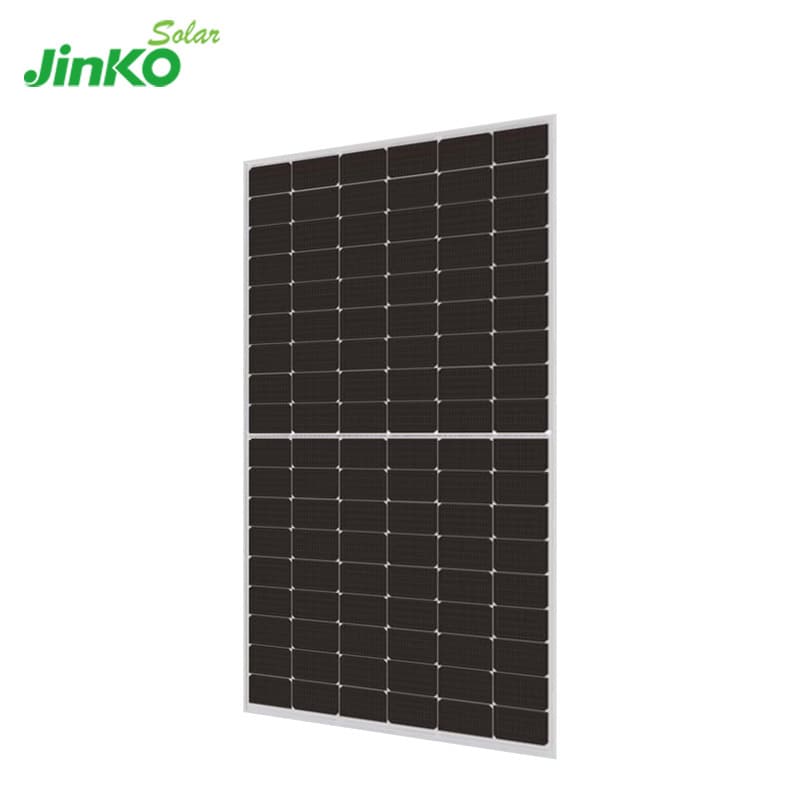

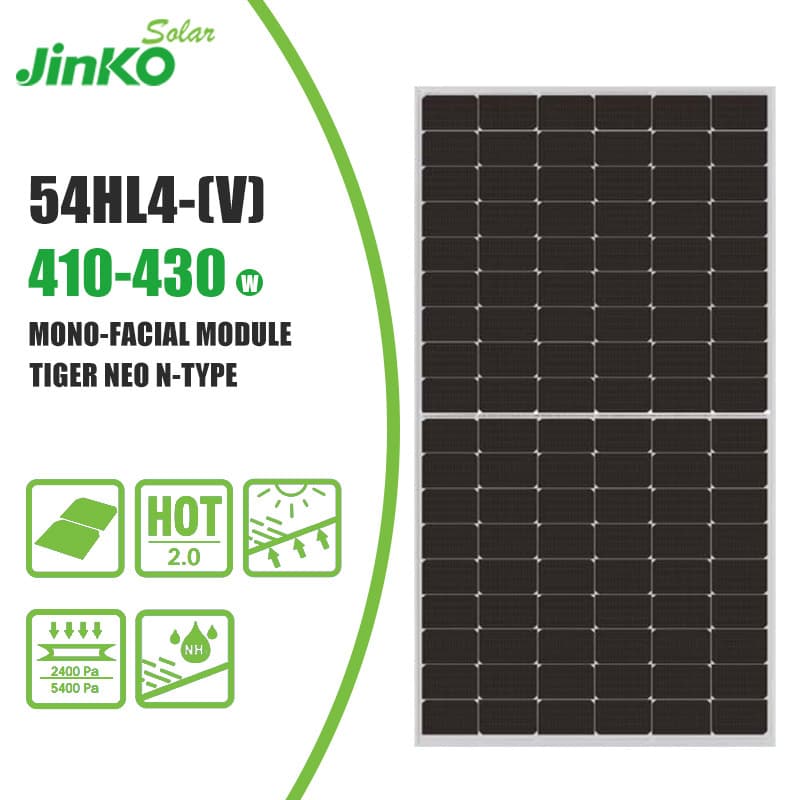

410-430W MONO-FACIAL MODULE Tiger Neo N-type 54HL4-(V) Solar Panels
The Jinko Solar Tiger Neo N-type 54HL4-(V) 410-430W Mono-Facial Solar Panel features advanced N-type TOPCon cell technology and a high-efficiency 108-cell design, delivering excellent power generation performance and long-term stability. With module efficiency up to 22.02%, it is designed for residential, commercial, and distributed solar PV applications.
Equipped with SMBB technology and Hot 2.0 technology, this module improves light utilization, current collection efficiency, and resistance against LID/LETID degradation. Its excellent PID resistance and environmental durability ensure reliable energy output even under challenging weather conditions.
Product Features
● Advanced N-Type TOPCon Technology
Uses N-type monocrystalline cell technology to achieve higher efficiency, lower degradation, and improved long-term energy yield.
● High Power Output up to 430W
Provides a power range of 410W-430W with efficiency reaching 22.02%, maximizing electricity generation in limited installation spaces.
● SMBB Technology
Super Multi Busbar technology enhances light capture and current collection, improving module power output and overall reliability.
● Hot 2.0 Technology
Optimized N-type cell technology reduces LID and LETID effects, improving module reliability and long-term performance.
● Excellent PID Resistance
Advanced manufacturing processes and material optimization provide strong anti-PID performance, helping maintain stable module output.
● Durable Performance in Harsh Environments
Designed with strong resistance against salt mist and ammonia corrosion, suitable for various installation environments.
● Enhanced Mechanical Strength
Certified to withstand up to 2400Pa wind load and 5400Pa snow load, ensuring reliable operation in outdoor conditions.
● Long-Term Warranty
15-year product warranty
30-year linear power warranty
Annual degradation rate: 0.40%-0.42%
Specifications
Electrical Characteristics (STC)
| Model | JKM410N-54HL4-(V) | JKM415N-54HL4-(V) | JKM420N-54HL4-(V) | JKM425N-54HL4-(V) | JKM430N-54HL4-(V) |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 410W | 415W | 420W | 425W | 430W |
| Module Efficiency | 21.00% | 21.25% | 21.51% | 21.76% | 22.02% |
| Maximum Power Voltage (Vmp) | 31.13V | 31.32V | 31.51V | 31.70V | 31.88V |
| Maximum Power Current (Imp) | 13.17A | 13.25A | 13.30A | 13.41A | 13.49A |
| Open Circuit Voltage (Voc) | 37.73V | 37.92V | 38.11V | 38.30V | 38.49V |
| Short Circuit Current (Isc) | 13.91A | 13.99A | 14.07A | 14.15A | 14.23A |
Electrical Characteristics (NOCT)
| Model | 410W | 415W | 420W | 425W | 430W |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 308W | 312W | 316W | 320W | 323W |
| Voltage at Maximum Power (Vmpp) | 29.06V | 29.21V | 29.34V | 29.50V | 29.63V |
| Current at Maximum Power (Impp) | 10.61A | 10.68A | 10.76A | 10.83A | 10.91A |
| Open Circuit Voltage (Voc) | 35.84V | 36.02V | 36.20V | 36.38V | 36.56V |
| Short Circuit Current (Isc) | 11.23A | 11.29A | 11.36A | 11.42A | 11.49A |
Mechanical Characteristics
| Item | Specification |
|---|---|
| Cell Type | N-type Monocrystalline |
| Technology | TOPCon |
| Cell Arrangement | 108 Cells |
| Module Type | Mono-Facial Module |
| Dimensions | 1722 × 1134 × 30 mm |
| Weight | Approx. 22 kg |
| Front Glass | 3.2mm Tempered Glass with Anti-Reflection Coating |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Cable | 4 mm² |
| Protection Class | Class II |
Operating Parameters
| Parameter | Value |
|---|---|
| Operating Temperature | -40℃ ~ +85℃ |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 25A |
| Power Tolerance | 0 ~ +3% |
| Temperature Coefficient of Pmax | -0.29%/℃ |
| Temperature Coefficient of Voc | -0.25%/℃ |
| Temperature Coefficient of Isc | 0.045%/℃ |
| NOCT | 45 ± 2℃ |
