Jinko-420-440W Tiger Neo N-type 54HL4R-B Solar Panels
- Category: Jinko Solar Panels
- Features
Product Description

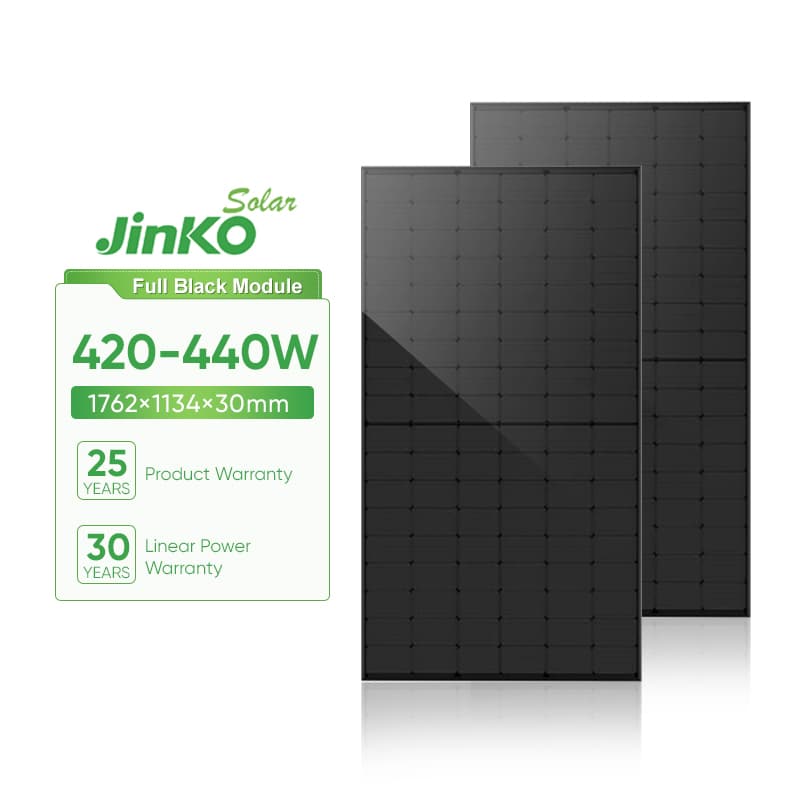

420-440W ALL-BLACK MODULE Tiger Neo N-type 54HL4R-B Solar Panels
The Jinko Solar Tiger Neo N-type 54HL4R-B 420-440W All-Black Solar Panel integrates advanced N-type TOPCon cell technology with a high-efficiency 108-cell design, delivering excellent power generation performance and long-term reliability. With module efficiency up to 22.02%, it provides an ideal solution for residential rooftops, commercial solar systems, and distributed PV applications
Featuring an elegant all-black appearance, this mono-facial solar module combines premium aesthetics with high energy output. The integration of SMBB technology and Hot 2.0 technology improves light utilization, current collection efficiency, and module durability while reducing degradation risks.
Designed for harsh environmental conditions, the Tiger Neo 54HL4R-B offers excellent PID resistance, mechanical strength, and resistance against salt mist and ammonia corrosion, ensuring stable performance throughout its service life.
Product Features
● Advanced N-Type Technology
Adopts N-type monocrystalline cell technology to achieve higher efficiency, lower degradation, and improved long-term energy yield compared with traditional modules.
● High Power Output up to 440W
Provides a power range of 420W-440W with module efficiency up to 22.02%, maximizing energy production for limited installation spaces.
● All-Black Elegant Design
The full black appearance delivers a modern and premium look, making it especially suitable for residential rooftop solar installations.
● SMBB Technology
Super Multi Busbar technology improves light absorption and current collection, enhancing module output power and overall reliability.
● Hot 2.0 Technology
Optimized N-type cell technology provides better reliability with improved resistance against LID and LETID degradation.
● Excellent Durability
Certified to withstand extreme environmental conditions with strong mechanical load capability, including wind load up to 4000Pa and snow load up to 6000Pa.
● Long-Term Performance Warranty
25-year product warranty
30-year linear power warranty
Maximum annual degradation rate of 0.40%
Specifications
Electrical Characteristics (STC)
| Model | JKM420N-54HL4R-B | JKM425N-54HL4R-B | JKM430N-54HL4R-B | JKM435N-54HL4R-B | JKM440N-54HL4R-B |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 420W | 425W | 430W | 435W | 440W |
| Module Efficiency | 21.02% | 21.27% | 21.52% | 21.77% | 22.02% |
| Maximum Power Voltage (Vmp) | 32.16V | 32.37V | 32.58V | 32.78V | 32.99V |
| Maximum Power Current (Imp) | 13.06A | 13.13A | 13.20A | 13.27A | 13.34A |
| Open Circuit Voltage (Voc) | 38.74V | 38.95V | 39.16V | 39.36V | 39.57V |
| Short Circuit Current (Isc) | 13.51A | 13.58A | 13.65A | 13.72A | 13.80A |
Mechanical Characteristics
| Item | Specification |
|---|---|
| Cell Type | N-type Monocrystalline |
| Cell Arrangement | 108 Cells (54×2) |
| Module Type | Mono-Facial All-Black Module |
| Dimensions | 1762 × 1134 × 30 mm |
| Weight | Approx. 22 kg |
| Front Glass | 3.2mm Tempered Glass with Anti-Reflection Coating |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Output Cable | 4.0 mm² |
| Protection Class | Class II |
Operating Conditions
| Parameter | Value |
|---|---|
| Operating Temperature | -40℃ ~ +85℃ |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 20A |
| NOCT | 45 ± 2℃ |
| Power Tolerance | 0 ~ +3% |
| Temperature Coefficient of Pmax | -0.29%/℃ |
| Temperature Coefficient of Voc | -0.25%/℃ |
| Temperature Coefficient of Isc | 0.045%/℃ |
