Product Description

Jinko 440-460W Tiger Pro 60HC Solar Panel

The Jinko Tiger Pro 60HC is a high-performance mono-facial photovoltaic module built on P-type PERC technology with half-cut cell design, delivering 440–460W power output with up to 21.78% module efficiency. Featuring 120 half-cut monocrystalline cells (182mm, 6×20 layout) and a positive power tolerance of 0~+3%, this module maximizes energy yield while reducing balance-of-system (BOS) costs. Certified to CE and TUV standards with an IP68-rated junction box, it is backed by a 30-year linear power warranty — an ideal solution for residential rooftop, commercial, and utility-scale solar installations.

Product Features

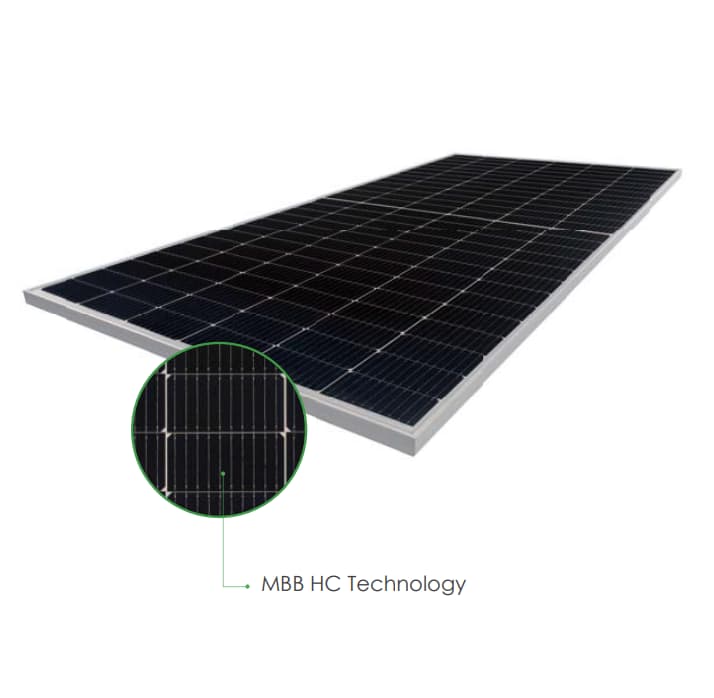

1. High-Efficiency P-type PERC Cells

120 half-cut P-type monocrystalline PERC cells (182mm) achieve up to 21.78% module efficiency, delivering superior power output per square meter.

2. Half-Cell Technology

Advanced half-cut cell design reduces internal current loss, minimizes hot spot risk, and improves overall module reliability and energy yield under partial shading conditions.

3. Excellent Low-Light Performance

Optimized cell and module design ensures high power generation in low-irradiance conditions (early morning, late afternoon, cloudy days), increasing daily energy output.

4. PID Resistance

Excellent anti-Potential-Induced Degradation (PID) performance through optimized materials and strict production process control, ensuring long-term power stability.

5. Enhanced Mechanical Load

Robust anodized aluminum alloy frame and tempered glass construction certified to withstand high wind and snow loads, suitable for harsh weather environments.

6. Durable & Weather-Resistant

IP68-rated junction box and high-quality encapsulation materials provide reliable protection against moisture, dust, and extreme temperature fluctuations (-40°C to +85°C).

7. Long-Term Warranty

12-year product warranty + 30-year linear power warranty, ensuring sustained performance and return on investment over the system lifetime.

8. Compact & Lightweight Design

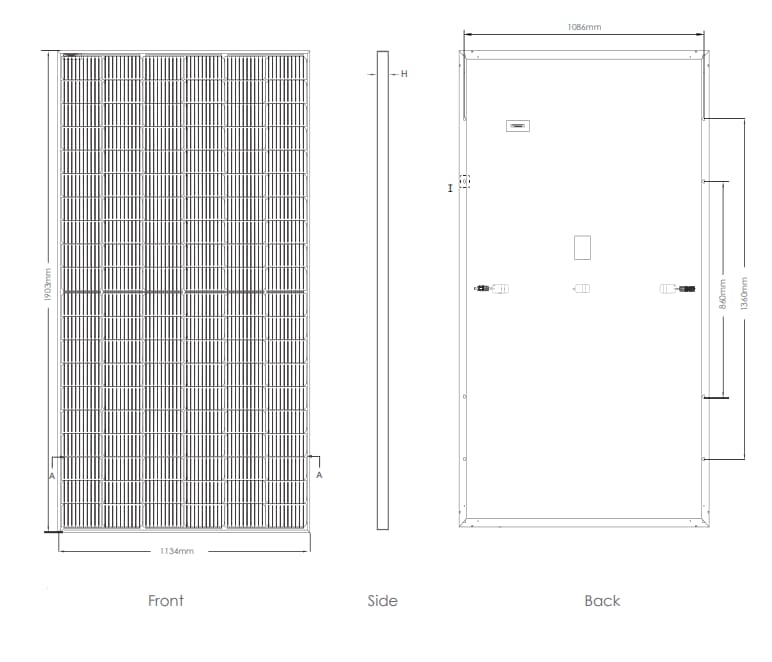

Module dimensions: 1903 × 1134 × 30 mm; weight: 24.2 kg. Optimized size for easy handling and installation on residential and commercial rooftops. Packaged 36 pieces per pallet for efficient logistics.

SPECIFICATIONS
