Jinko 460-480W MONO-FACIAL MODULE Tiger 78TR Solar Panel
- Category: Jinko Solar Panels
- Features
Product Description

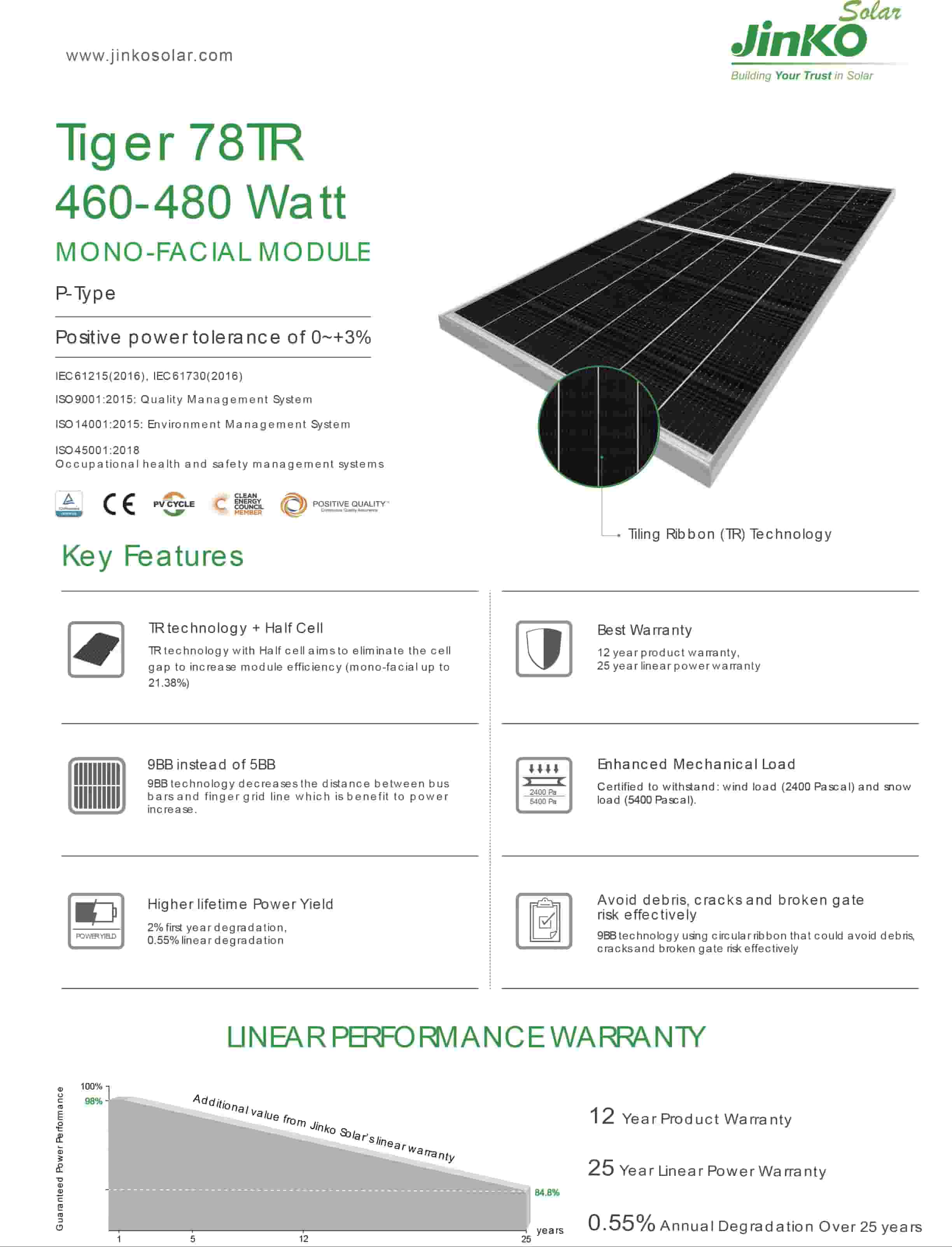

Jinko Solar Tiger 78TR 460-480W Solar Panel
Jinko Solar Tiger 78TR is a high-performance P-type monocrystalline solar module designed for residential, commercial, and utility-scale photovoltaic applications. Featuring advanced Tiling Ribbon (TR) technology and half-cell design, the module reduces cell spacing, improves light utilization, and enhances overall power generation efficiency.
With a power output range of 460W–480W and module efficiency up to 21.38%, Tiger 78TR delivers reliable energy production with excellent mechanical strength and long-term durability. Its optimized 9BB cell technology helps reduce electrical losses, minimize micro-crack risks, and improve module reliability throughout its service life.
Designed for various solar installations, the Tiger 78TR module provides an ideal solution for rooftop PV systems, commercial projects, and large-scale solar power plants.
Product Features

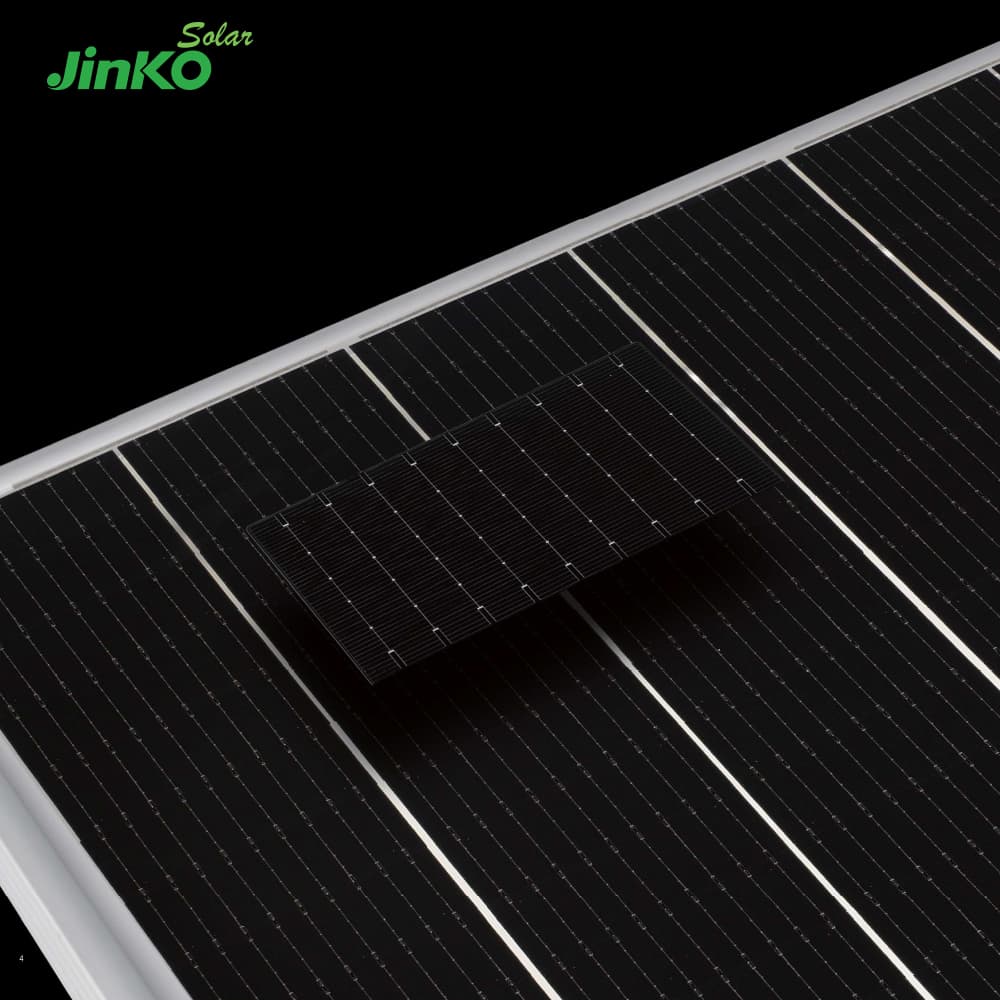

Advanced TR Technology + Half Cell Design
Adopts Tiling Ribbon (TR) technology to reduce the gap between solar cells
Improves module efficiency by increasing active cell area
Optimized half-cell structure reduces internal resistance and power loss
Enhances energy yield under different environmental conditions
High Power Output & Efficiency
Power range: 460W–480W
Maximum module efficiency: 21.38%
Positive power tolerance of 0~+3%
Excellent performance for high-density solar installations
Enhanced Reliability with 9BB Technology
Equipped with 9 busbar cell technology
Shorter distance between busbars and finger grids improves current collection
Circular ribbon design helps reduce debris, cracks, and broken gate risks
Provides improved module stability and long-term performance
Excellent Weather Resistance
Certified to stand:
Wind load: 2400Pa
Snow load: 5400Pa
Operating temperature range: -40℃ to +85℃
Suitable for various climate environments worldwide
Durable Module Structure
3.2mm anti-reflection coated tempered glass
High transmission, low iron glass improves sunlight absorption
Anodized aluminum alloy frame provides strong mechanical protection
IP68 rated junction box ensures reliable outdoor operation
Long-Term Warranty
12-year product warranty
25-year linear power warranty
Low annual degradation rate ensures stable energy output over the module lifetime

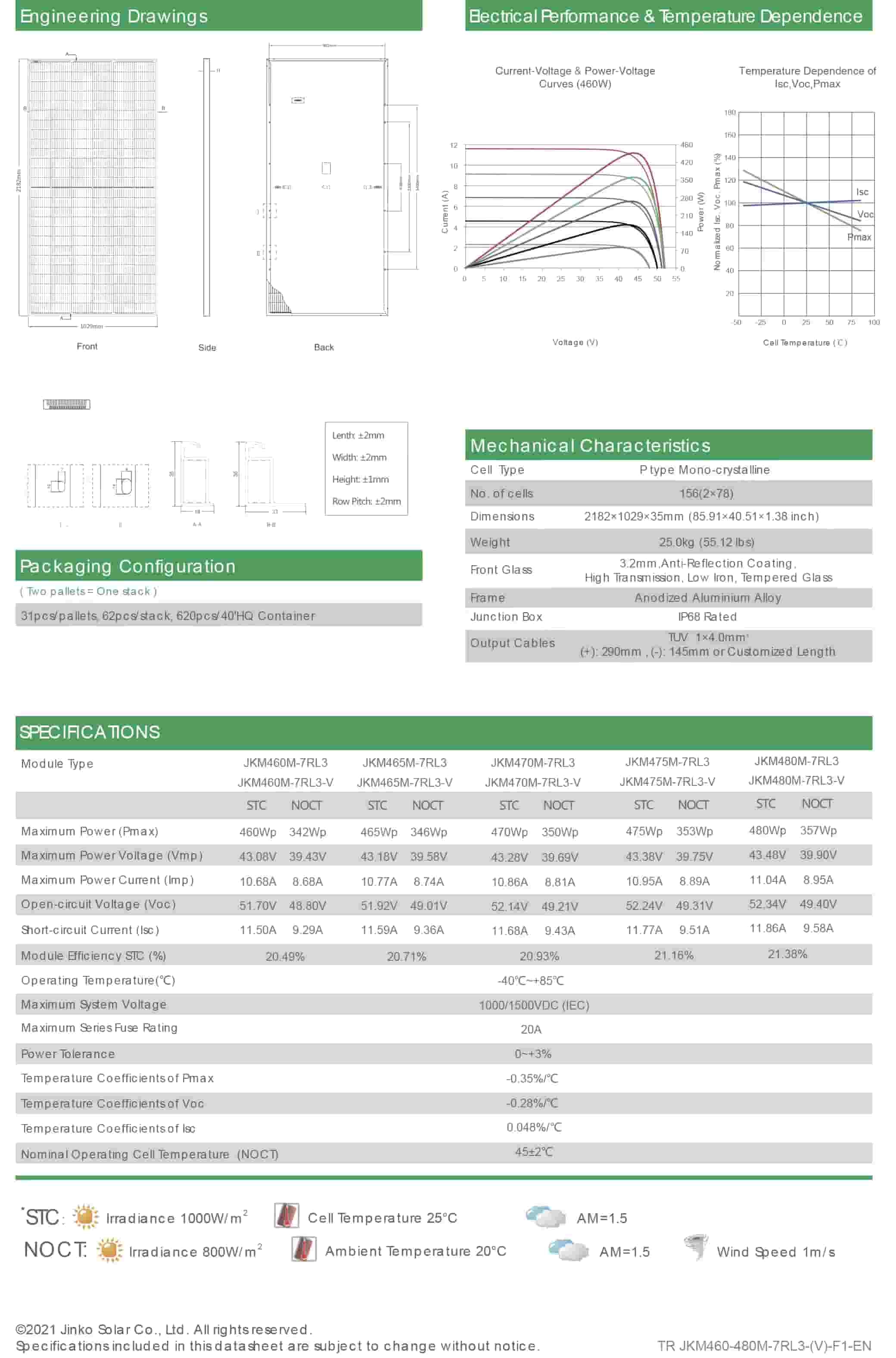

Technical Specifications
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Product Type | Tiger 78TR Mono-facial Module |
| Cell Type | P-type Monocrystalline |
| Cell Technology | Half Cell + TR Technology |
| Number of Cells | 156 (2×78) |
| Power Output | 460W / 465W / 470W / 475W / 480W |
| Module Efficiency | Up to 21.38% |
| Power Tolerance | 0~+3% |
| Maximum System Voltage | 1000/1500VDC |
| Maximum Series Fuse Rating | 20A |
Electrical Parameters (480W Model)
| Parameter | Specification |
|---|---|
| Dimensions | 2182 × 1029 × 35mm |
| Weight | Approx. 25kg |
| Front Glass | 3.2mm Anti-Reflection Tempered Glass |
| Frame Material | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Cable | TUV 1×4.0mm² PV Cable |
| Connector | Compatible PV Connector |
FAQ：
What is TR Technology?
Tiling Ribbon technology overlaps the solar cell ribbons to remove standard inter-cell gaps. This increases active surface area, efficiency, and aesthetic uniformity.
What is the power output range?
Depending on the specific generation (such as Eagle 78TR or Tiger 78TR series), the power output typically ranges from 450W to 490W per panel.
How many cells do they have?
They feature 156 half-cut cells (configured as a twin array of 2x78 cells), which helps maintain power production even if part of the panel is shaded.
What warranties come with the panels?
JinkoSolar typically backs these panels with a 12-year product warranty and a 25-year linear power warranty (guaranteeing around 84.8% output by year 25). How durable are they against weather?
