Jinko 530-550W BIFACIAL MODULE WITH DUAL GLASS Tiger Pro 72HC-BDVP Solar Panel
- Category: Jinko Solar Panels
- Features
Product Description

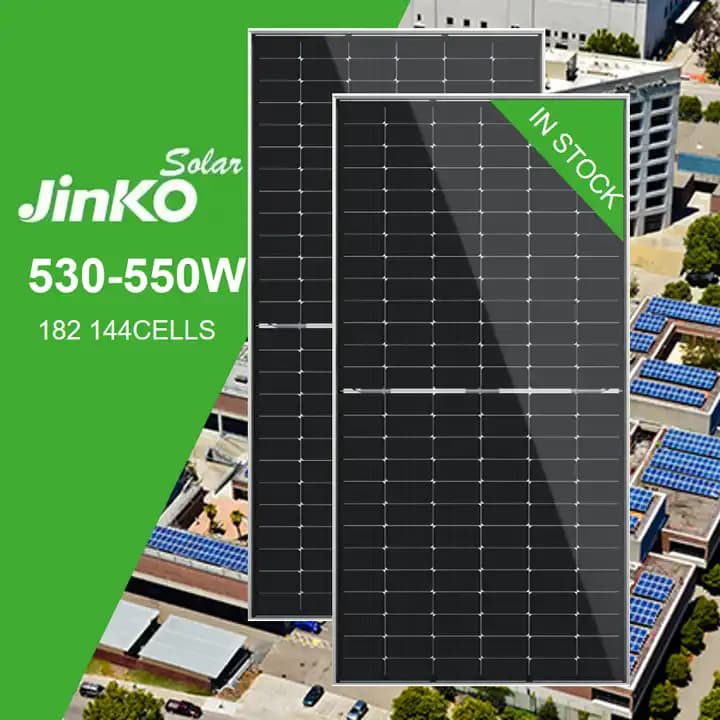

Jinko 530-550W Pro 72HC-BDVP Solar Panel
The Jinko Tiger Pro 72HC-BDVP is a high-power bifacial double-glass photovoltaic module built on P-type PERC half-cut cell technology, delivering 530–550W output with up to 21.48% module efficiency. Featuring 144 half-cut monocrystalline cells (6×24 layout) and a dual-glass structure, this module captures sunlight from both front and rear sides, delivering an additional 5–30% energy yield depending on surface albedo. The transparent back glass replaces the traditional backsheet, enhancing durability against humidity, UV, and extreme weather. Certified to CE standards with a 30-year linear power warranty, it is ideal for utility-scale solar farms, commercial rooftops, and high-reflectivity ground installations.
Product Features
1. Bifacial Double-Glass Design
Dual 2mm tempered glass structure replaces the conventional backsheet, enabling rear-side power generation with 5–30% additional energy gain on reflective surfaces (white roof, snow, sand, water).
2. High-Efficiency P-type PERC Half-Cut Cells
144 half-cut monocrystalline PERC cells deliver up to 21.48% module efficiency and 530–550W power output, maximizing energy yield per installation area.
3. Superior Durability & Longevity
Double-glass construction provides enhanced resistance to moisture penetration, UV degradation, and thermal cycling, extending module lifespan and reducing long-term performance loss.
4. Half-Cell Technology
Advanced half-cut cell design reduces internal current loss, minimizes hot spot risk, and improves energy harvest under partial shading conditions.
5. PID Resistance
Excellent anti-Potential-Induced Degradation (PID) performance through optimized materials and strict production process control, ensuring stable power output over decades.
6. Enhanced Mechanical Load
Robust 30mm anodized aluminum alloy frame and dual-glass structure certified to withstand high wind load (2400 Pa) and snow load (5400 Pa), suitable for harsh climatic environments.
7. Low Degradation & 30-Year Warranty
Lower annual degradation rate thanks to double-glass encapsulation; backed by 12-year product warranty and 30-year linear power warranty for sustained return on investment.
8. Optimized for Utility & C&I
Module dimensions: 2278 × 1134 × 30 mm; weight: 31 kg. High-power density reduces BOS costs (fewer modules, racks, and cables per MW). IP68-rated junction box ensures reliable outdoor operation.
SPECIFICATIONS
| Specifications | JKM530M‑72HL4‑BDVP | JKM535M‑72HL4‑BDVP | JKM540M‑72HL4‑BDVP | JKM545M‑72HL4‑BDVP | JKM550M‑72HL4‑BDVP | |||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) | 530Wp | 394Wp | 535Wp | 398Wp | 540Wp | 402Wp | 545Wp | 405Wp | 550Wp | 409Wp |
| Maximum Power Voltage (Vmp) | 40.87V | 37.88V | 40.94V | 37.94V | 41.13V | 38.08V | 41.32V | 38.25V | 41.51V | 38.42V |
| Maximum Power Current (Imp) | 12.97A | 10.41A | 13.07A | 10.49A | 13.13A | 10.55A | 13.19A | 10.60A | 13.25A | 10.65A |
| Open‑circuit Voltage (Voc) | 49.48V | 46.70V | 49.54V | 46.76V | 49.73V | 46.94V | 49.92V | 47.12V | 50.11V | 47.30V |
| Short‑circuit Current (Isc) | 13.73A | 11.09A | 13.83A | 11.17A | 13.89A | 11.22A | 13.95A | 11.27A | 14.01A | 11.32A |
| Module Efficiency STC (%) | 20.52% | 20.71% | 20.90% | 21.10% | 21.29% | |||||
| Operating Temperature(℃) | ‑40℃~+85℃ | |||||||||
| Maximum system voltage | 1500VDC (IEC) | |||||||||
| Maximum series fuse rating | 30A | |||||||||
| Power tolerance | 0~+3% | |||||||||
| Temperature coefficients of Pmax | ‑0.35%/℃ | |||||||||
| Temperature coefficients of Voc | ‑0.28%/℃ | |||||||||
| Temperature coefficients of Isc | 0.048%/℃ | |||||||||
| Nominal operating cell temperature (NOCT) | 45±2℃ | |||||||||
| Refer. Bifacial Factor | 70±5% | |||||||||
