Jinko 535-555W BIFACIAL MODULE WITH DUAL GLASS Tiger Pro 72HC-BDVP Solar Panel
- Category: Jinko Solar Panels
- Features
Product Description

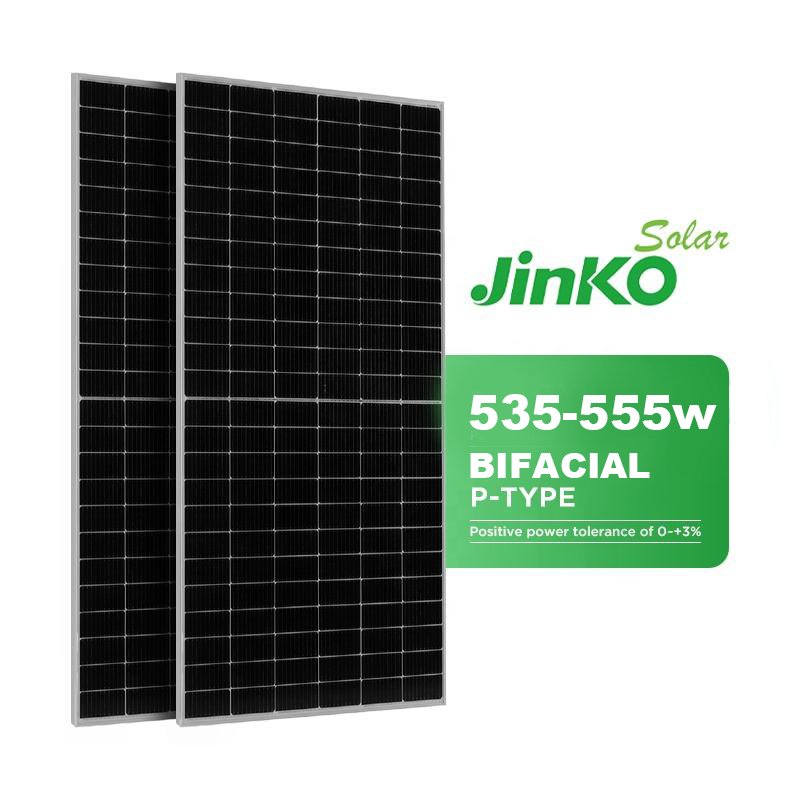

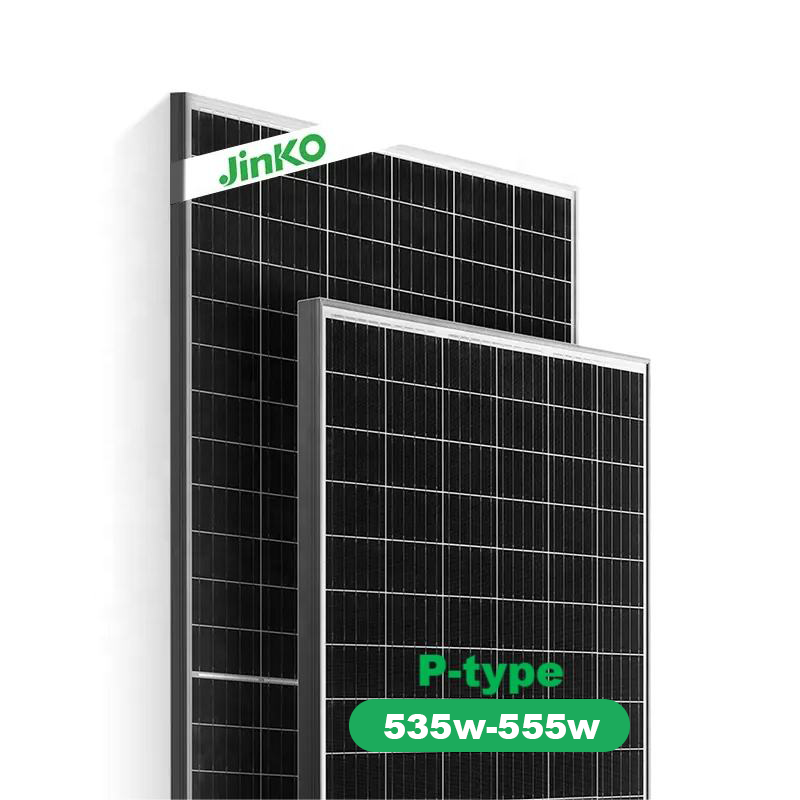

Jinko 535-555W 72HC-BDVP Solar Panel
Jinko Tiger Pro 72HC-BDVP is a high-performance bifacial dual-glass solar module designed for utility-scale and commercial solar applications. Featuring advanced P-Type monocrystalline cell technology, multi-busbar (MBB) technology, and bifacial energy generation capability, the module delivers higher power output, improved reliability, and optimized energy yield throughout its lifetime.
With a power range of 535W to 555W, the module can generate additional electricity from both the front and rear sides by capturing reflected sunlight, making it especially suitable for projects with high albedo environments such as solar farms, rooftops, and open-field installations.
The dual-glass structure enhances durability against harsh environmental conditions, while excellent PID resistance and optimized material control ensure long-term stable performance. The module provides a 12-year product warranty and 30-year linear power warranty, with only 0.45% annual degradation, maintaining up to 84.95% guaranteed power output after 30 years.
Product Features
1. Bifacial Technology for Higher Energy Yield
The Tiger Pro 72HC-BDVP adopts advanced bifacial module technology, allowing the module to generate electricity from both the front and rear sides.
Captures reflected sunlight from the rear side
Increases total energy generation compared with conventional single-sided modules
Improves project return on investment (ROI)
Ideal for ground-mounted solar plants, high-reflectivity surfaces, and large-scale PV projects
The bifacial design helps increase system output and reduce the overall levelized cost of electricity (LCOE).

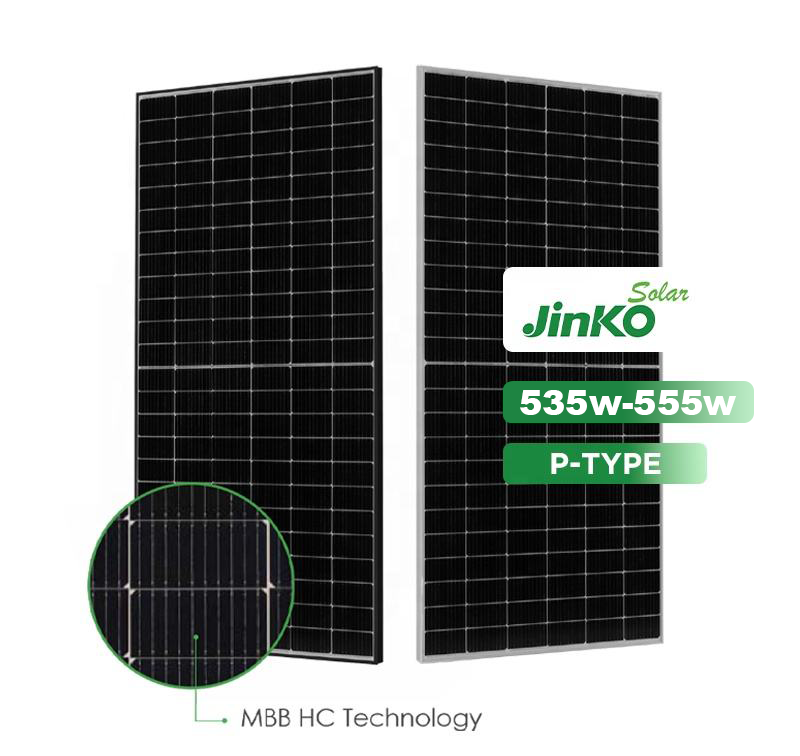

2. Multi Busbar (MBB) Technology
Equipped with advanced Multi Busbar Technology, the module improves current collection efficiency and reduces electrical losses.
Key advantages:
Better light utilization through optimized grid design
Reduced resistance loss
Improved module reliability
Enhanced power generation performance
MBB technology enables more efficient energy conversion and contributes to higher module output.
3. Higher Power Output up to 555W
The Tiger Pro 72HC-BDVP series provides a wide power range from 535W to 555W, meeting the requirements of different PV system designs.
Benefits:
Higher module wattage reduces the number of panels required
Lower installation and balance-of-system costs
Improved land utilization efficiency
Higher project profitability
The maximum module efficiency reaches approximately 21.48% for the 555W version.
4. Dual Glass Structure for Enhanced Durability
The dual-glass design replaces the traditional backsheet with reinforced glass, providing stronger environmental protection.
Advantages:
Excellent moisture resistance
Improved mechanical strength
Better resistance to UV aging
Longer operational lifetime
The module is certified to withstand:
2400 Pa wind load
5400 Pa snow load
making it suitable for demanding outdoor environments.
5. Excellent PID Resistance
The module features optimized production processes and material control to achieve strong Anti-PID (Potential Induced Degradation) performance.
Benefits:
Reduces power loss caused by PID effects
Maintains long-term module stability
Improves reliability in high-voltage PV systems
6. Longer Lifetime Power Generation
Tiger Pro 72HC-BDVP is designed for long-term energy production with excellent degradation performance.
Performance warranty:
12-year product warranty
30-year linear power warranty
0.45% annual degradation rate
84.95% guaranteed power output after 30 years
This ensures stable electricity generation throughout the project lifecycle.
7. Reliable Certifications & Quality Assurance
The module complies with international quality and safety standards:
IEC 61215 (2016)
IEC 61730 (2016)
ISO 9001 Quality Management System
ISO 14001 Environmental Management System
ISO 45001 Occupational Health & Safety Management System
These certifications demonstrate JinkoSolar's commitment to product reliability and manufacturing quality.
Key Specifications
| Item | Description |
|---|---|
| Model | Tiger Pro 72HC-BDVP |
| Power Output | 535W-555W |
| Cell Technology | P-Type Monocrystalline |
| Module Type | Bifacial Dual Glass Module |
| Cell Number | 144 Cells (6×24) |
| Power Tolerance | 0~+3% |
| Maximum Efficiency | Up to 21.48% |
| Annual Degradation | 0.45% |
| Product Warranty | 12 Years |
| Linear Power Warranty | 30 Years |
| Maximum System Voltage | 1500V |
| Operating Temperature | -40℃ to +85℃ |
| Specifications | JKM535M‑72HL4‑BDVP | JKM540M‑72HL4‑BDVP | JKM545M‑72HL4‑BDVP | JKM550M‑72HL4‑BDVP | JKM555M‑72HL4‑BDVP | |||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) | 535Wp | 398Wp | 540Wp | 402Wp | 545Wp | 405Wp | 550Wp | 409Wp | 555Wp | 413Wp |
| Maximum Power Voltage (Vmp) | 40.94V | 37.94V | 41.13V | 38.08V | 41.32V | 38.25V | 41.51V | 38.42V | 41.70V | 38.59V |
| Maximum Power Current (Imp) | 13.07A | 10.49A | 13.13A | 10.55A | 13.19A | 10.60A | 13.25A | 10.65A | 13.31A | 10.70A |
| Open‑circuit Voltage (Voc) | 49.54V | 46.76V | 49.73V | 46.94V | 49.92V | 47.12V | 50.11V | 47.30V | 50.30V | 47.48V |
| Short‑circuit Current (Isc) | 13.83A | 11.17A | 13.89A | 11.22A | 13.95A | 11.27A | 14.01A | 11.32A | 14.07A | 11.36A |
| Module Efficiency STC (%) | 20.71% | 20.90% | 21.10% | 21.29% | 21.48% | |||||
| Operating Temperature(℃) | ‑40℃~+85℃ | |||||||||
| Maximum system voltage | 1500VDC (IEC) | |||||||||
| Maximum series fuse rating | 30A | |||||||||
| Power tolerance | 0~+3% | |||||||||
| Temperature coefficients of Pmax | ‑0.35%/℃ | |||||||||
| Temperature coefficients of Voc | ‑0.28%/℃ | |||||||||
| Temperature coefficients of Isc | 0.048%/℃ | |||||||||
| Nominal operating cell temperature (NOCT) | 45±2℃ | |||||||||
| Refer. Bifacial Factor | 70±5% | |||||||||
FAQ：
1.What is the power output range?
The module produces between 535W and 555W on its front side.
2.What does "bifacial" mean?
It captures sunlight and generates power from both the front and rear glass surfaces, boosting overall energy yield depending on ground reflectivity (albedo).
3.What are the panel dimensions and weight?
It measures roughly 2274 x 1134 x 30 mm and weighs about 34.3 kg.
4.What is the panel efficiency?
Efficiency ranges roughly from 20.9% up to 23% depending on the specific wattage tier and conditions.
5.What is the warranty coverage?
It typically features a 12-year product workmanship warranty and a linear power output warranty extending up to 30 years.
