Jinko 540-560W MONO-FACIAL MODULE Tiger Pro 72HC Solar Panel
- Category: Jinko Solar Panels
- Features
Product Description

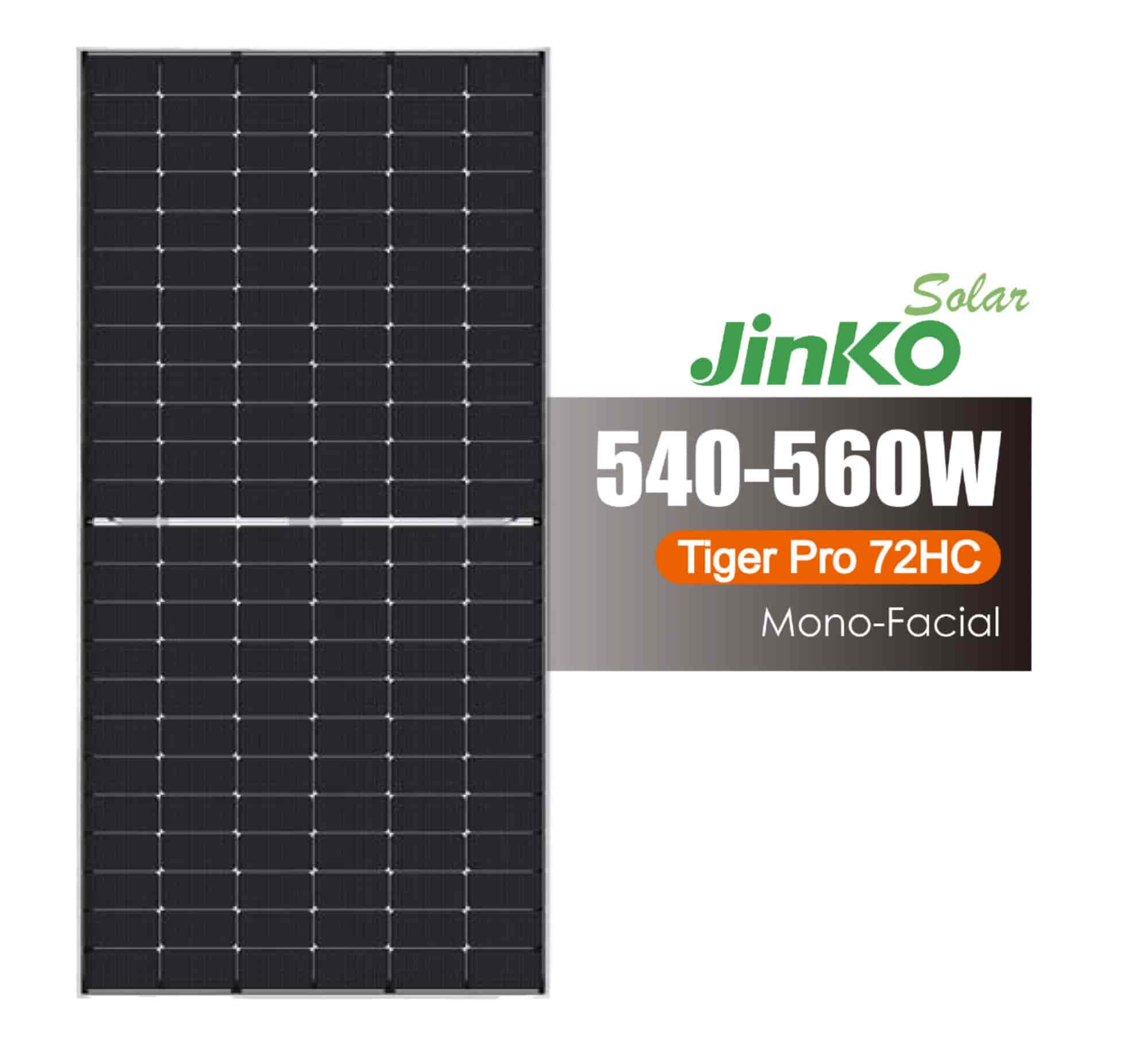

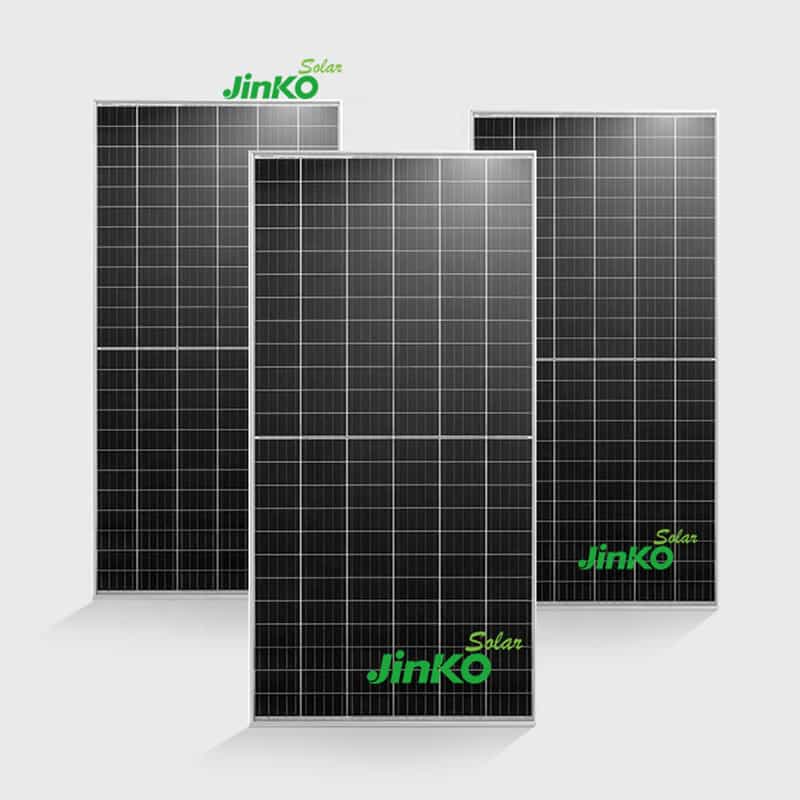

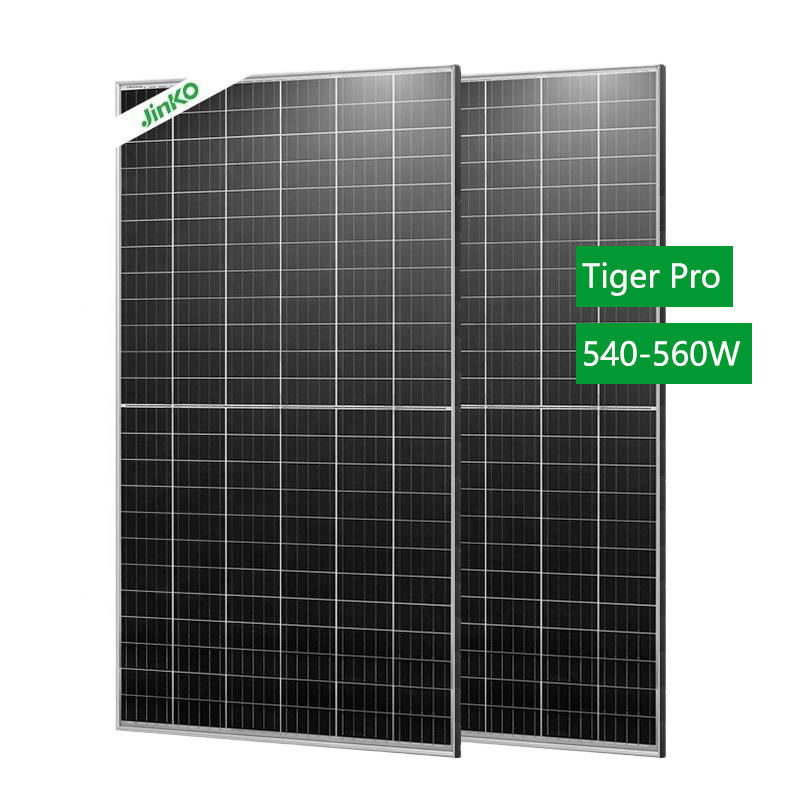

Jinko Tiger Pro 72HC 540W-560W Mono Solar Panel
Jinko Tiger Pro 72HC 540W-560W Solar Panel is a high-efficiency monocrystalline PERC solar module designed for utility-scale, commercial, and industrial PV applications. Featuring advanced 182mm silicon wafer technology, half-cell design, and multi-busbar (MBB) technology, this module delivers higher power output, improved efficiency, and long-term reliability.
With a power range of 540W to 560W and efficiency up to 21.68%, the Tiger Pro 72HC series helps reduce system installation costs while maximizing energy generation. The half-cell structure minimizes internal losses and improves performance under partial shading conditions, making it an ideal choice for large-scale solar projects and commercial rooftop installations.
Product Features
High Power Output up to 560W
The Tiger Pro 72HC series delivers up to 560W high power output, increasing energy density and reducing the number of modules required for PV systems.
Benefits:
Higher energy yield per module
Lower balance-of-system costs
Improved land and installation efficiency
Advanced Half-Cell Technology
Equipped with 144 half-cut monocrystalline PERC cells, the module reduces electrical losses and enhances overall performance.
Advantages:
Lower internal resistance
Better temperature performance
Improved output under partial shading conditions
Multi Busbar (MBB) Technology
The advanced MBB design improves current collection and light utilization, enhancing module efficiency and reliability.
Key benefits:
Reduced power loss
Improved cell durability
Higher long-term energy generation
High Efficiency 182mm PERC Cells
Using large-size 182mm PERC cell technology, the module achieves excellent conversion efficiency and stable performance in different environments.
Reliable Durability & Weather Resistance
Built with a robust aluminum frame and IP68-rated junction box, the module provides excellent protection against harsh outdoor conditions.
Features:
Operating temperature: -40℃ to +85℃
Strong resistance to moisture and dust
Certified for reliable outdoor operation
Positive Power Tolerance & Long-Term Reliability
With 0~+3% positive power tolerance, each module ensures stable output performance and higher energy returns.
The module complies with international standards including IEC 61215 and IEC 61730, ensuring excellent quality and reliability throughout its service life.
Product Highlights Summary
| Feature | Description |
|---|---|
| Brand | Jinko Solar |
| Series | Tiger Pro 72HC |
| Model | JKM540-560M-72HL4 |
| Power Range | 540W-560W |
| Cell Technology | Monocrystalline PERC |
| Cell Size | 182mm × 182mm |
| Cell Type | Half Cell |
| Number of Cells | 144 (6×24) |
| Module Efficiency | Up to 21.68% |
| Power Tolerance | 0~+3% |
| Junction Box | IP68 Rated |
| Operating Temperature | -40℃~+85℃ |
| Maximum System Voltage | 1000/1500V DC |
| Application | Utility / Commercial / Industrial PV Systems |
SPECIFICATIONS
| Module Type | JKM540M‑72HL4 | JKM545M‑72HL4 | JKM550M‑72HL4 | JKM555M‑72HL4 | JKM560M‑72HL4 | |||||
| JKM540M‑72HL4‑V | JKM545M‑72HL4‑V | JKM550M‑72HL4‑V | JKM555M‑72HL4‑V | JKM560M‑72HL4‑V | ||||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) | 540Wp | 402Wp | 545Wp | 405Wp | 550Wp | 409Wp | 555Wp | 413Wp | 560Wp | 417Wp |
| Maximum Power Voltage (Vmp) | 40.70V | 38.08V | 40.80V | 38.25V | 40.90V | 38.42V | 40.99V | 38.59V | 41.09V | 38.69V |
| Maximum Power Current (Imp) | 13.27A | 10.55A | 13.36A | 10.60A | 13.45A | 10.65A | 13.54A | 10.70A | 13.63A | 10.77A |
| Open‑circuit Voltage (Voc) | 49.42V | 46.65V | 49.52V | 46.74V | 49.62V | 46.84V | 49.72V | 46.93V | 49.82V | 47.02V |
| Short‑circuit Current (Isc) | 13.85A | 11.19A | 13.94A | 11.26A | 14.03A | 11.33A | 14.12A | 11.40A | 14.21A | 11.48A |
| Module Efficiency STC (%) | 20.90% | 21.10% | 21.29% | 21.48% | 21.68% | |||||
| Operating Temperature(℃) | ‑40℃~+85℃ | |||||||||
| Maximum system voltage | 1000/1500VDC (IEC) | |||||||||
| Maximum series fuse rating | 25A | |||||||||
| Power tolerance | 0~+3% | |||||||||
| Temperature coefficients of Pmax | ‑0.35%/℃ | |||||||||
| Temperature coefficients of Voc | ‑0.28%/℃ | |||||||||
| Temperature coefficients of Isc | 0.048%/℃ | |||||||||
| Nominal operating cell temperature (NOCT) | 45±2℃ |
|||||||||
