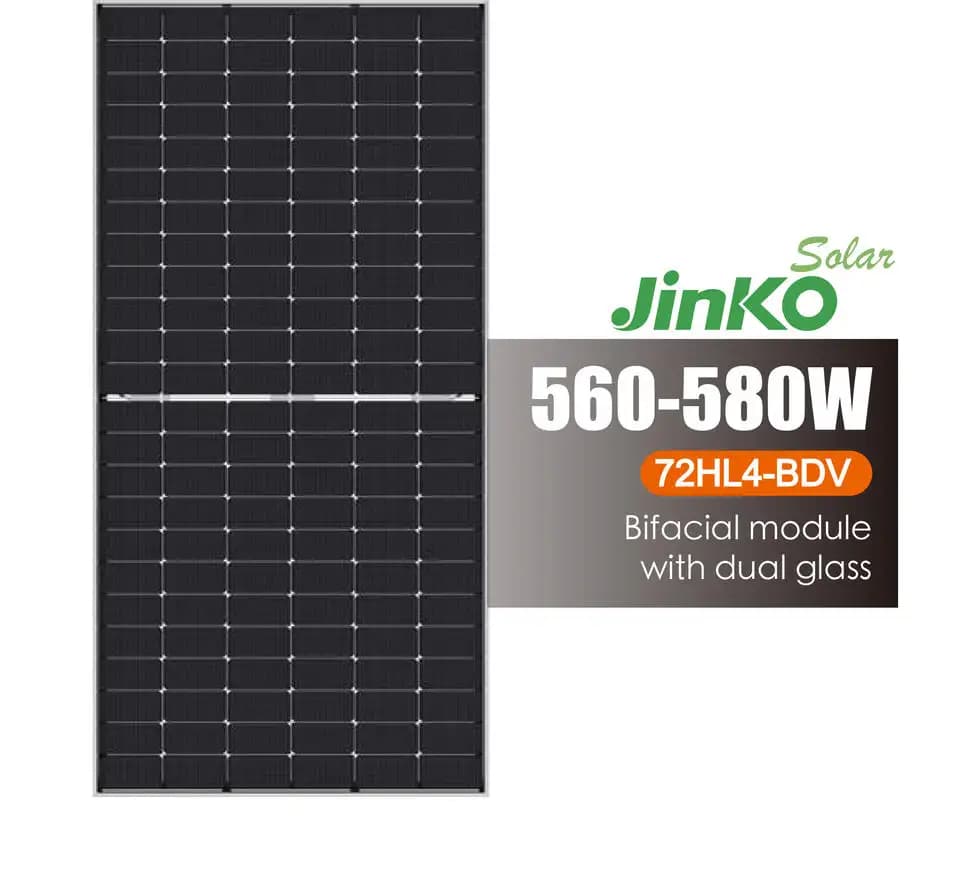

Jinko 560-580W Bifacial Module With Dual Glass Tiger Neo N-type 72HL4-BDV Solar Panel
- Category: Jinko Solar Panels
- Features
Product Description

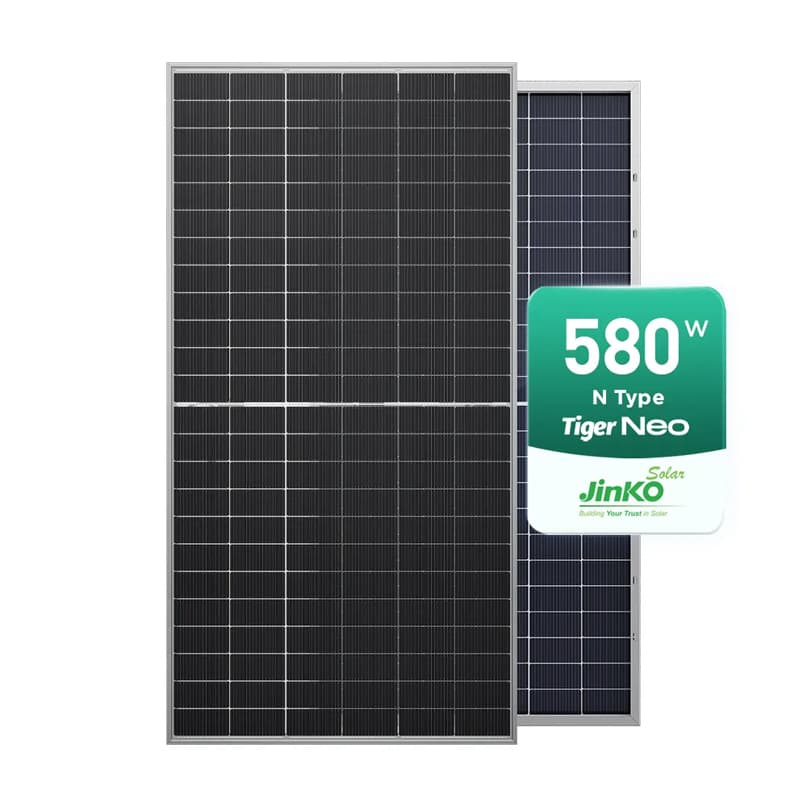

Jinko 560-580W Tiger Neo N-type72HL4-BDV
Jinko Tiger Neo 570W is a high-efficiency N-type TOPCon bifacial double-glass solar module. Adopting Jinko HOT 2.0 advanced technology, it achieves a high conversion efficiency of 22.07% and 0~+3% positive power tolerance. With dual-sided power generation and ultra-low attenuation, this module effectively reduces LCOE. It features strong environmental adaptability and mechanical stability, widely applicable for ground power stations, commercial rooftops, tracker and agricultural PV projects, supporting long-term and stable power generation.
Core Product Features
High Power & High Efficiency
570W max power, 22.07% high conversion efficiency; excellent low-light and high-temperature power generation performance with smaller temperature power attenuation.
N-type Low Attenuation
Effectively suppress LID/LETID; ≤1% first-year degradation, only 0.4% annual degradation for 2–30 years, retaining 87.4% power after 30 years.

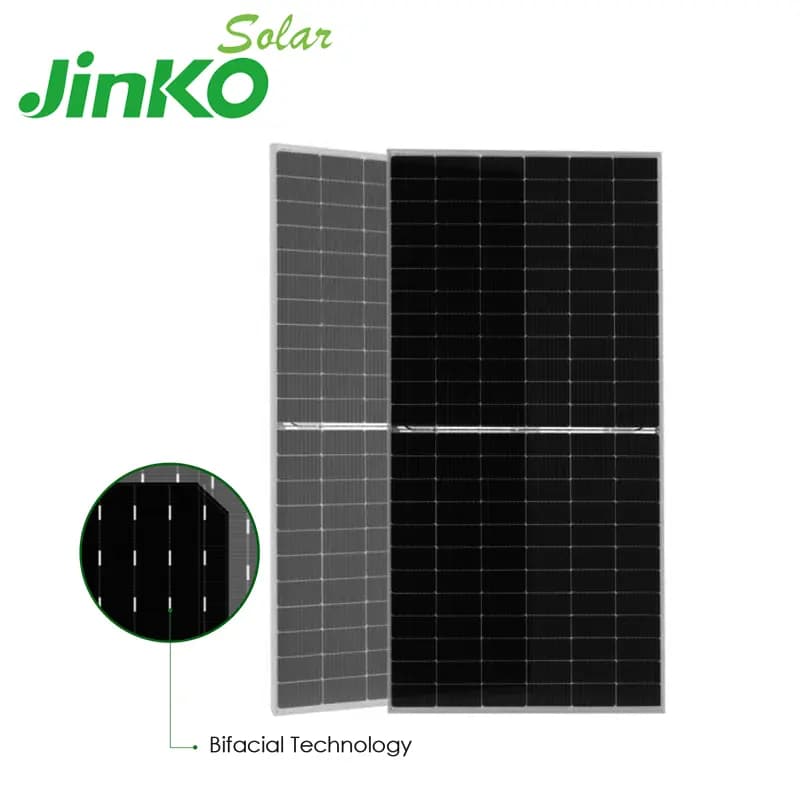

Bifacial Power Gain
Double-glass bifacial design, 5–25% extra rear-side power output, greatly improving overall power generation yield.
Strong Environmental Resistance
Anti-PID, anti-salt mist and anti-ammonia corrosion performance; fully adapts to coastal, high-temperature and humid harsh scenarios.
Super Mechanical Reliability
Reinforced aluminum frame, withstands 5400Pa snow load and 2400Pa wind load; IP68 junction box for long-term outdoor safety.
Cost-saving & Widely Compatible
1500VDC system voltage reduces BOS cost; compatible with mainstream inverters and trackers.
Reliable Warranty & Certification
12-year product warranty + 30-year linear power warranty; complete CE, TUV, IEC international certifications.
Product Parameters
| Specifications | JKM560N‑72HL4‑BDV | JKM565N‑72HL4‑BDV | JKM570N‑72HL4‑BDV | JKM575N‑72HL4‑BDV | JKM580N‑72HL4‑BDV | |||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) | 560Wp | 421Wp | 565Wp | 425Wp | 570Wp | 429Wp | 575Wp | 432Wp | 580Wp | 436Wp |
| Maximum Power Voltage (Vmp) | 41.95V | 39.39V | 42.14V | 39.52V | 42.29V | 39.65V | 42.44V | 39.78V | 42.59V | 39.87V |
| Maximum Power Current (Imp) | 13.35A | 10.69A | 13.41A | 10.75A | 13.48A | 10.81A | 13.55A | 10.87A | 13.62A | 10.94A |
| Open‑circuit Voltage (Voc) | 50.67V | 48.13V | 50.87V | 48.32V | 51.07V | 48.51V | 51.27V | 48.70V | 51.47V | 48.89V |
| Short‑circuit Current (Isc) | 14.13A | 11.41A | 14.19A | 11.46A | 14.25A | 11.50A | 14.31A | 11.55A | 14.37A | 11.60A |
| Module Efficiency STC (%) | 21.68% | 21.87% | 22.07% | 22.26% | 22.45% | |||||
| Operating Temperature(℃) | ‑40℃~+85℃ | |||||||||
| Maximum system voltage | 1500VDC (IEC) | |||||||||
| Maximum series fuse rating | 30A | |||||||||
| Power tolerance | 0~+3% | |||||||||
| Temperature coefficients of Pmax | ‑0.30%/℃ | |||||||||
| Temperature coefficients of Voc | ‑0.25%/℃ | |||||||||
| Temperature coefficients of Isc | 0.046%/℃ | |||||||||
| Nominal operating cell temperature (NOCT) | 45±2℃ | |||||||||
| Refer. Bifacial Factor | 80±5% | |||||||||
