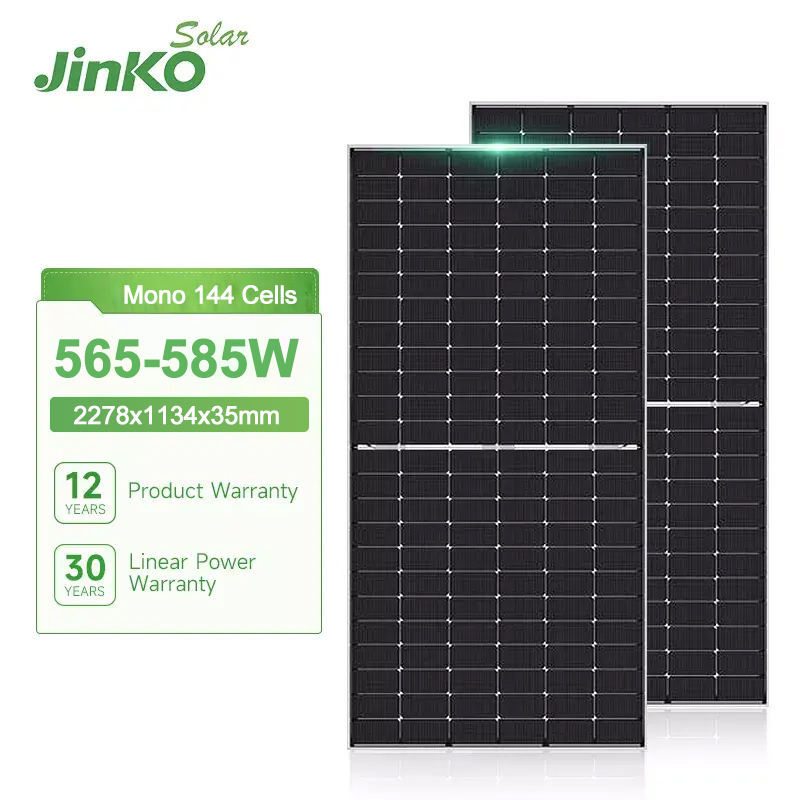

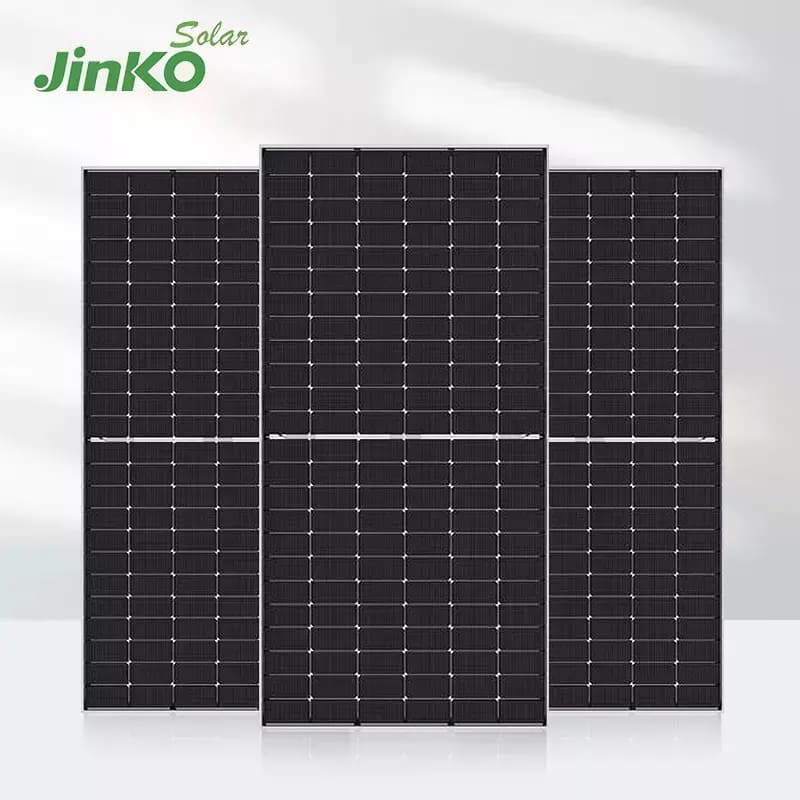

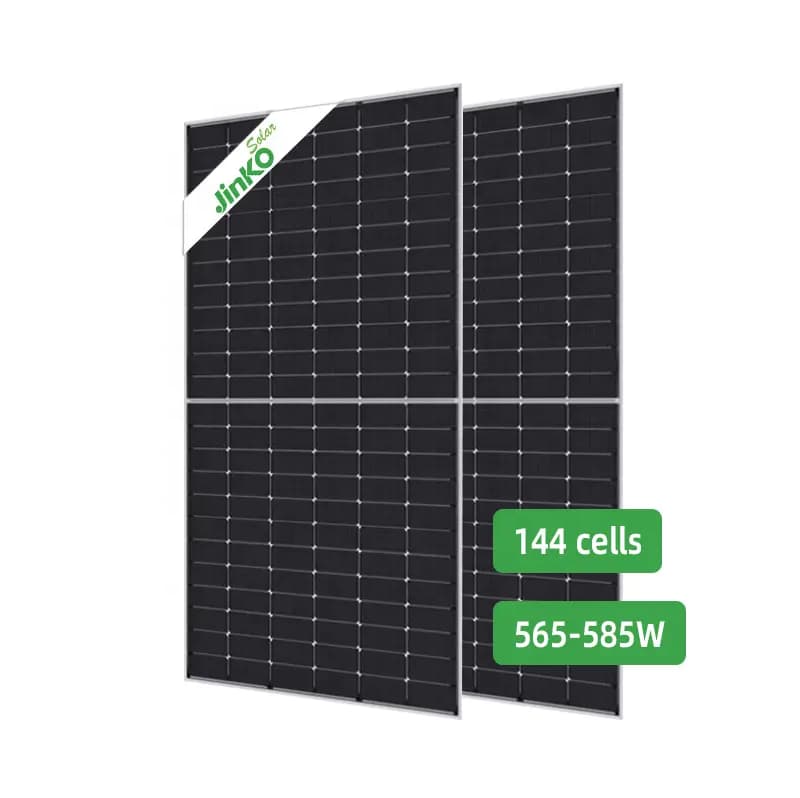

Jinko 565-585W Mono-Facial Module Tiger Neo N-type 72HL4-(V) Solar Panel
- Category: Jinko Solar Panels
- Features
Product Description
Jinko 565-585W Tiger Neo N-type72HL4-(V)
Jinko Tiger Neo N-type Monofacial Solar Module is a high-performance photovoltaic module featuring advanced N-type TOPCon cell technology. Designed for residential, commercial, and utility-scale solar applications, it delivers higher power output, improved conversion efficiency, and enhanced long-term reliability compared with traditional P-type modules.
With optimized cell design, advanced manufacturing processes, and excellent low-light performance, the Tiger Neo series ensures stable energy generation under various environmental conditions. The module supports high system voltage and offers strong durability against harsh weather conditions, making it an ideal solution for efficient and reliable solar power projects.

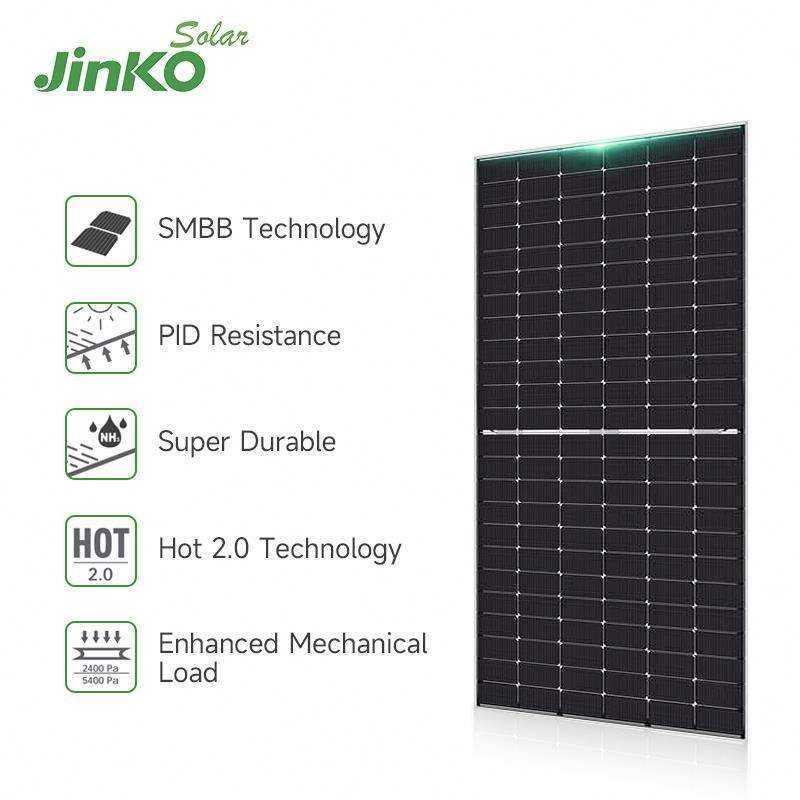

Product Features
1. Advanced N-type TOPCon Technology
Adopts high-efficiency N-type monocrystalline TOPCon cells for improved power generation capability.
Higher conversion efficiency compared with conventional P-type modules.
Excellent performance with lower temperature coefficient and reduced power degradation.
2. High Power Output & Efficiency
Available in high-power ranges suitable for different solar applications.
Module efficiency can reach over 22%, providing higher energy yield per installation area.
Positive power tolerance of 0~+3% ensures reliable output performance.
3. Excellent Low-Light Performance
Optimized N-type cell structure improves energy harvesting during cloudy days, mornings, and evenings.
Maintains stable power generation in different lighting conditions.
4. Lower Degradation & Longer Service Life
N-type technology provides better resistance to light-induced degradation (LID).
Designed for long-term outdoor operation with stable performance over the module lifetime.
5. Strong Environmental Durability
Operating temperature range: -40℃ to +85℃.
Supports high system voltage up to 1500V DC.
Resistant to challenging environments with excellent reliability.

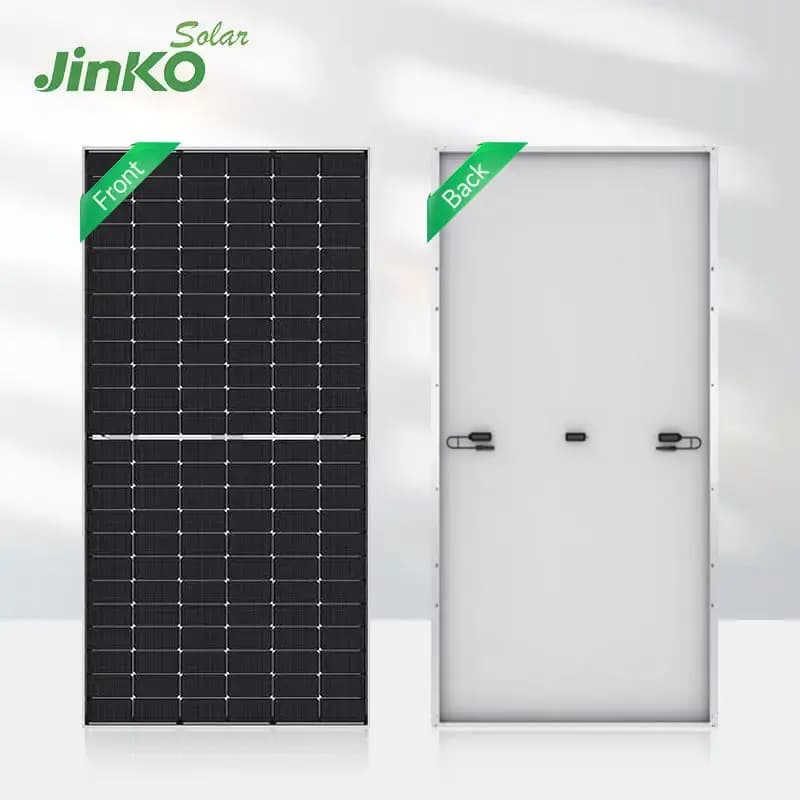

6. Reliable Mechanical Design
High-quality tempered glass with anti-reflective coating improves light transmission.
Durable aluminum alloy frame enhances structural strength.
IP68-rated junction box provides excellent protection against dust and water.
7. Wide Application Range
Suitable for:
Residential rooftop solar systems
Commercial and industrial PV projects
Ground-mounted solar power plants
Distributed energy generation projects
Specifications
| Specifications | JKM565N‑72HL4 | JKM570N‑72HL4 | JKM575N‑72HL4 | JKM580N‑72HL4 | JKM585N‑72HL4 | |||||
| JKM565N‑72HL4‑V | JKM570N‑72HL4‑V | JKM575N‑72HL4‑V | JKM580N‑72HL4‑V | JKM585N‑72HL4‑V | ||||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) | 565Wp | 425Wp | 570Wp | 429Wp | 575Wp | 432Wp | 580Wp | 436Wp | 585Wp | 440Wp |
| Maximum Power Voltage (Vmp) | 41.92V | 39.38V | 42.07V | 39.51V | 42.22V | 39.60V | 42.37V | 39.69V | 42.52V | 39.81V |
| Maximum Power Current (Imp) | 13.48A | 10.79A | 13.55A | 10.85A | 13.62A | 10.92A | 13.69A | 10.99A | 13.76A | 11.05A |
| Open‑circuit Voltage (Voc) | 50.60V | 48.06V | 50.74V | 48.20V | 50.88V | 48.33V | 51.02V | 48.46V | 51.16V | 48.60V |
| Short‑circuit Current (Isc) | 14.23A | 11.49A | 14.31A | 11.55A | 14.39A | 11.62A | 14.47A | 11.68A | 14.55A | 11.75A |
| Module Efficiency STC (%) | 21.87% | 22.07% | 22.26% | 22.45% | 22.65% | |||||
| Operating Temperature(℃) | ‑40℃~+85℃ | |||||||||
| Maximum system voltage | 1000/1500VDC (IEC) | |||||||||
| Maximum series fuse rating | 25A | |||||||||
| Power tolerance | 0~+3% | |||||||||
| Temperature coefficients of Pmax | ‑0.30%/℃ | |||||||||
| Temperature coefficients of Voc | ‑0.25%/℃ | |||||||||
| Temperature coefficients of Isc | 0.046%/℃ | |||||||||
| Nominal operating cell temperature (NOCT) | 45±2℃ | |||||||||
