Jinko 605-625W BIFACIAL MODULE WITH DUAL GLASS Tiger Neo N-type 78HL4-BDV Solar Panel
- Category: Jinko Solar Panels
- Features
Product Description
Jinko 605-625W Tiger Neo N-type78HL4-BDV
Jinko Tiger Neo N-type 78HL4-BDV is a high-performance bifacial solar module featuring advanced N-type TOPCon technology. With power output up to 625W and excellent low-light performance, it delivers higher energy generation and improved long-term reliability for utility-scale and commercial solar projects.
Product Features
High Power Output
Provides 605W-625W power range with module efficiency up to 22.36%, maximizing energy yield and reducing installation costs.
Advanced N-type TOPCon Technology
Features Hot 2.0 technology for lower LID/LETID, enhanced reliability, and improved power performance throughout the module lifetime.

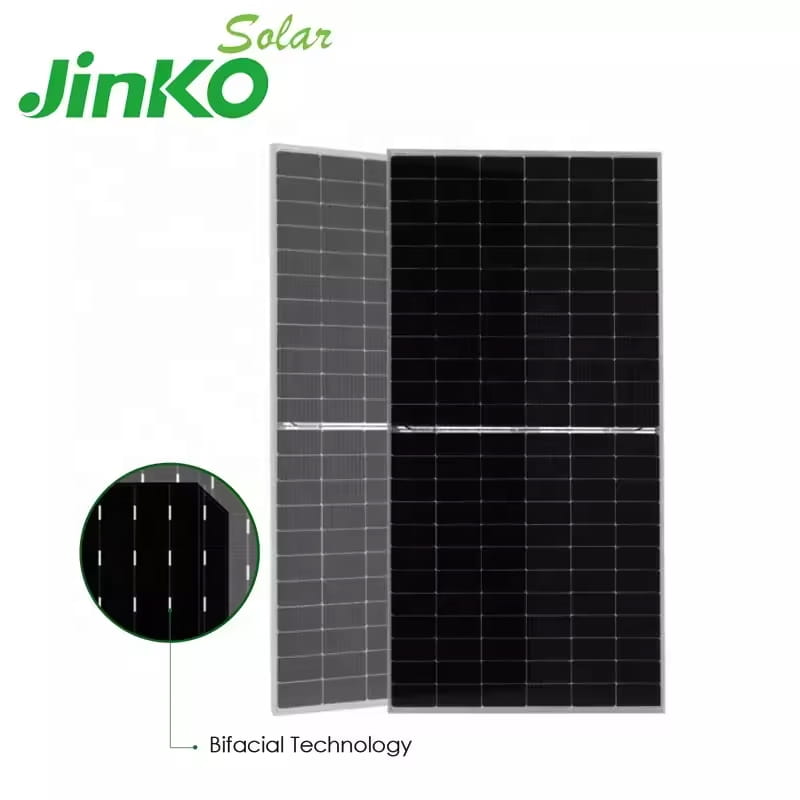

Bifacial Dual Glass Design
Captures sunlight from both sides to increase energy generation and offers better durability in harsh environments.
Excellent Durability
Certified to withstand 2400Pa wind load and 5400Pa snow load, with strong PID resistance for stable operation.
Long-Term Performance Warranty
Includes 12-year product warranty and 30-year linear power warranty with reliable output performance.
Product Parameters
| Specifications | JKM605N‑78HL4‑BDV | JKM610N‑78HL4‑BDV | JKM615N‑78HL4‑BDV | JKM620N‑78HL4‑BDV | JKM625N‑78HL4‑BDV | |||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) | 605Wp | 455Wp | 610Wp | 459Wp | 615Wp | 462Wp | 620Wp | 466Wp | 625Wp | 470Wp |
| Maximum Power Voltage (Vmp) | 45.42V | 42.23V | 45.60V | 42.35V | 45.77V | 42.46V | 45.93V | 42.57V | 46.10V | 42.68V |
| Maximum Power Current (Imp) | 13.32A | 10.77A | 13.38A | 10.83A | 13.44A | 10.89A | 13.50A | 10.95A | 13.56A | 11.01A |
| Open‑circuit Voltage (Voc) | 55.17V | 52.41V | 55.31V | 52.54V | 55.44V | 52.66V | 55.58V | 52.79V | 55.72V | 52.93V |
| Short‑circuit Current (Isc) | 13.95A | 11.26A | 14.03A | 11.33A | 14.11A | 11.39A | 14.19A | 11.46A | 14.27A | 11.52A |
| Module Efficiency STC (%) | 21.64% | 21.82% | 22.00% | 22.18% | 22.36% | |||||
| Operating Temperature(℃) | ‑40℃~+85℃ | |||||||||
| Maximum system voltage | 1500VDC (IEC) | |||||||||
| Maximum series fuse rating | 30A | |||||||||
| Power tolerance | 0~+3% | |||||||||
| Temperature coefficients of Pmax | ‑0.30%/℃ | |||||||||
| Temperature coefficients of Voc | ‑0.25%/℃ | |||||||||
| Temperature coefficients of Isc | 0.046%/℃ | |||||||||
| Nominal operating cell temperature (NOCT) | 45±2℃ | |||||||||
| Refer. Bifacial Factor | 80±5% | |||||||||
