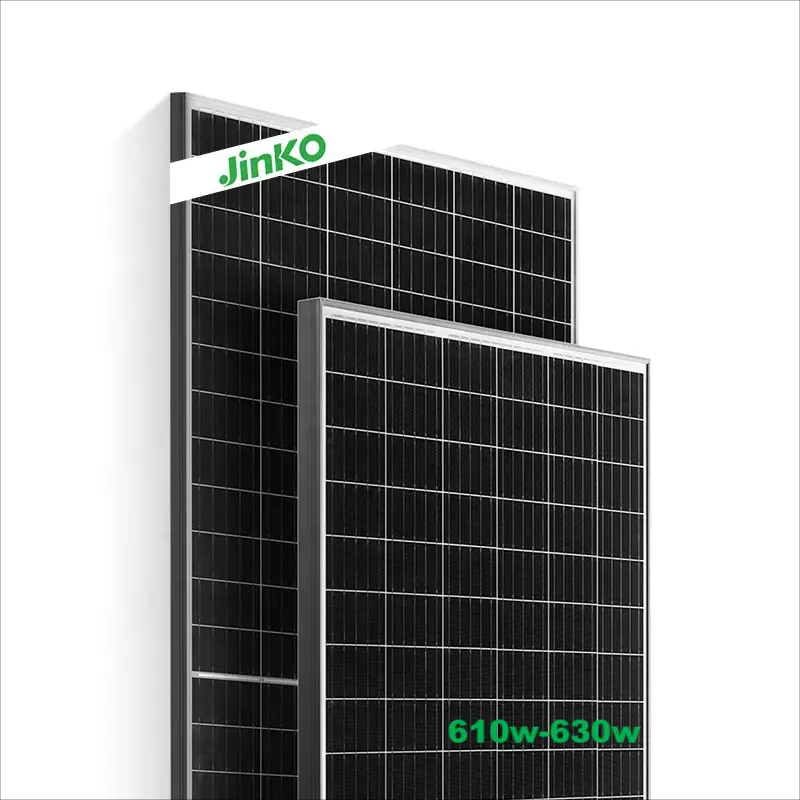

Jinko 610-630W MONO-FACIAL MODULE Tiger Neo N-type 78HL4-(V) Solar Panel

  • Category: Jinko Solar Panels
  • Features
    • The Jinko Tiger Neo N-type 78HL4 series is a high-performance photovoltaic module built on advanced N-type TOPCon technology, delivering 610–630W power output with up to 22.54% module efficiency.

Product Description

Jinko 610-630W Tiger Neo N-type78HL4-(V)

The Jinko Tiger Neo N-type 78HL4 series is a high-performance photovoltaic module built on advanced N-type TOPCon technology, delivering 610–630W power output with up to 22.54% module efficiency. Featuring 156 half-cut monocrystalline cells (182mm) and a positive power tolerance of 0~+3%, this module maximizes energy yield while minimizing levelized cost of electricity (LCOE). Certified to IEC 61215, IEC 61730, ISO 9001/14001/45001, and UL standards, it is backed by a 12-year product warranty and a 30-year linear power warranty with only 0.40% annual degradation — ideal for residential, commercial, and utility-scale solar installations.

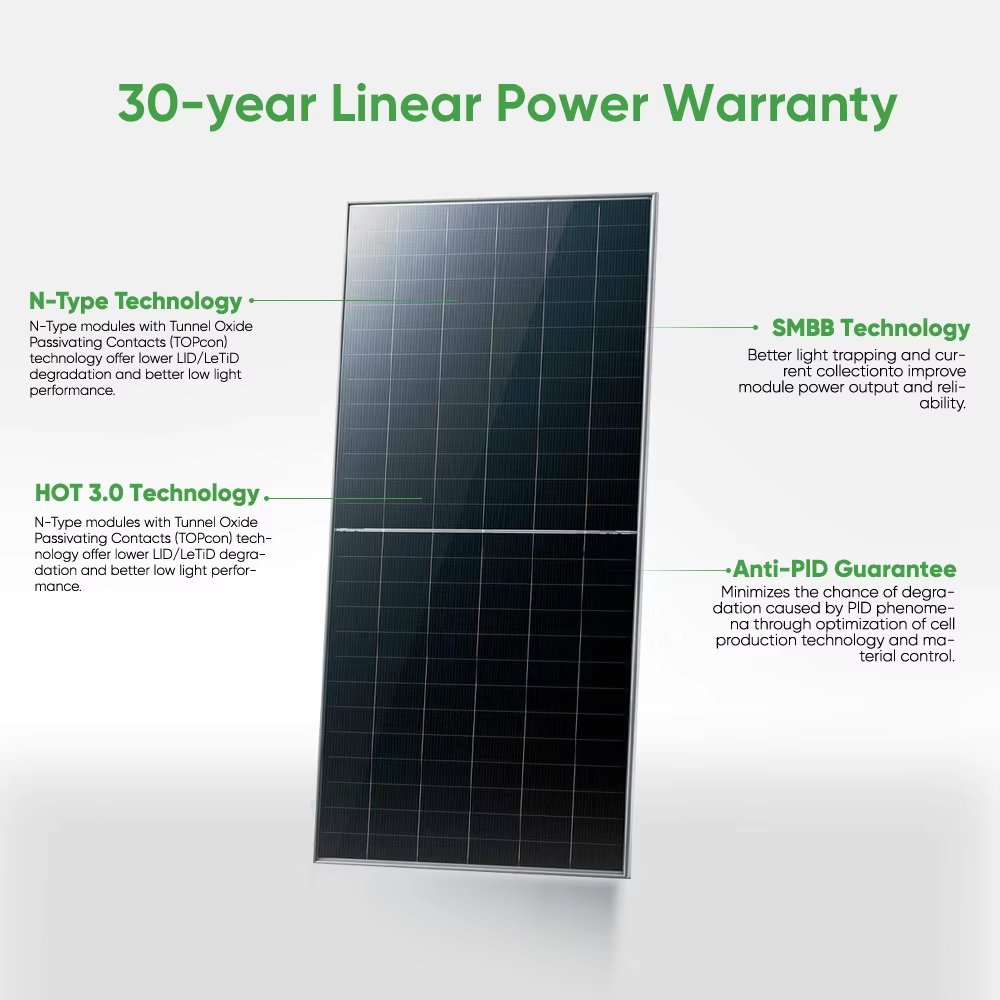

Product Features

1. High-Efficiency N-type Cells

N-type mono-crystalline half-cut cells (156 cells, 2×78 layout) achieve up to 22.54% module efficiency, delivering more power per square meter than conventional P-type modules.

2. SMBB Technology
Advanced multi-busbar (SMBB) design enhances light trapping and current collection, improving both module power output and long-term reliability.

3. Hot 2.0 Technology
N-type module with Hot 2.0 technology ensures superior reliability and significantly lower Light-Induced Degradation (LID) and Light and Elevated Temperature-Induced Degradation (LeTID).

4. PID Resistance
Excellent anti-Potential-Induced Degradation (PID) performance guaranteed through optimized mass-production processes and strict materials quality control.

5. Enhanced Mechanical Load
Certified to withstand extreme weather: wind load up to 2400 Pa and snow load up to 5400 Pa.

6. Extreme Environmental Durability
High resistance to salt mist and ammonia, making it suitable for coastal, industrial, and agricultural installations.

7. Ultra-Low Degradation & Long Warranty
Only 0.40% annual power degradation over 30 years; 12-year product warranty + 30-year linear power warranty (≥87.4% retained power at year 30).

8. Robust Build Quality
3.2mm high-transmission anti-reflection tempered glass, anodized aluminum alloy frame, IP68-rated junction box, and MC4 EVO2 / TS4 compatible connectors. Module dimensions: 2465 × 1134 × 35 mm; weight: 30.6 kg.

SPECIFICATIONS

Specifications JKM610N‑78HL4 JKM615N‑78HL4 JKM620N‑78HL4 JKM625N‑78HL4 JKM630N‑78HL4
JKM610N‑78HL4‑V JKM615N‑78HL4‑V JKM620N‑78HL4‑V JKM625N‑78HL4‑V JKM630N‑78HL4‑V
STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax) 610Wp 459Wp 615Wp 462Wp 620Wp 466Wp 625Wp 470Wp 630Wp 474Wp
Maximum Power Voltage (Vmp) 45.59V 42.28V 45.69V 42.39V 45.79V 42.50V 45.92V 42.61V 46.02V 42.72V
Maximum Power Current (Imp) 13.38A 10.85A 13.46A 10.91A 13.54A 10.97A 13.61A 11.03A 13.69A 11.09A
Open‑circuit Voltage (Voc) 55.25V 52.48V 55.40V 52.62V 55.55V 52.77V 55.70V 52.91V 55.85V 53.05V
Short‑circuit Current (Isc) 14.11A 11.39A 14.18A 11.45A 14.25A 11.50A 14.32A 11.56A 14.39A 11.62A
Module Efficiency STC (%) 21.82% 22.00% 22.18% 22.36% 22.54%
Operating Temperature(℃) ‑40℃~+85℃
Maximum system voltage 1000/1500VDC (IEC)
Maximum series fuse rating 25A
Power tolerance 0~+3%
Temperature coefficients of Pmax ‑0.30%/℃
Temperature coefficients of Voc ‑0.25%/℃
Temperature coefficients of Isc 0.046%/℃
Nominal operating cell temperature (NOCT) 45±2℃
