Jinko Tiger Neo 54HL4R-B 430-455W MONO-FACIAL MODULE N-type Soalr Panel

  • Category: Jinko Solar Panels
  • Features
    • The Jinko Tiger Neo 54HL4R-B is an all-black monofacial N-type solar module powered by TOPCon technology, with a power range of 430–455W and a maximum module efficiency of up to 22.77%. Equipped with 108 half-cut monocrystalline cells, it features a sleek full-black appearance, making it ideal for residential and light commercial rooftop systems. The module supports 1000VDC system voltage, adapts to -40℃ to +85℃ operating environments, holds IEC, ISO and anti-PID certifications, and is backed by standard long-term warranty.

Product Description

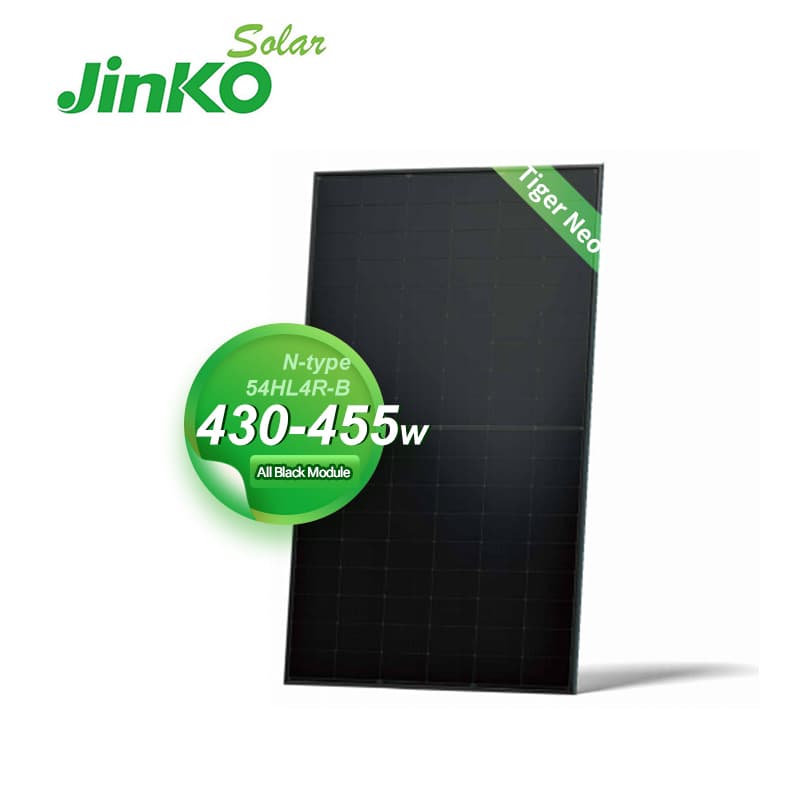

Jinko Tiger Neo 54HL4R-B 430-455W Soalr Panel

The Jinko Tiger Neo 54HL4R-B is an all-black monofacial N-type solar module powered by TOPCon technology, with a power range of 430–455W and a maximum module efficiency of up to 22.77%. Equipped with 108 half-cut monocrystalline cells, it features a sleek full-black appearance, making it ideal for residential and light commercial rooftop systems. The module supports 1000VDC system voltage, adapts to -40℃ to +85℃ operating environments, holds IEC, ISO and anti-PID certifications, and is backed by standard long-term warranty.

Product Features
High-efficiency N-type Technology

Integrated with HOT 3.0 and SMBB technology, it features lower LID/LeTID degradation and outstanding low-light performance, ensuring stable energy output in various weather conditions.
All-black Aesthetic Design

Uniform black frame and backsheet match modern rooftop aesthetics; half-cell architecture effectively reduces internal electrical loss.
Robust Durability

Withstands 6000Pa front and 4000Pa rear static load; passes high salt mist and ammonia corrosion tests; IP68-rated junction box guarantees reliable outdoor operation.
Reliable Quality Assurance

Anti-PID optimized design, Class II protection level, and full international certifications secure long-term stable performance and investment return.

SPECIFICATIONS

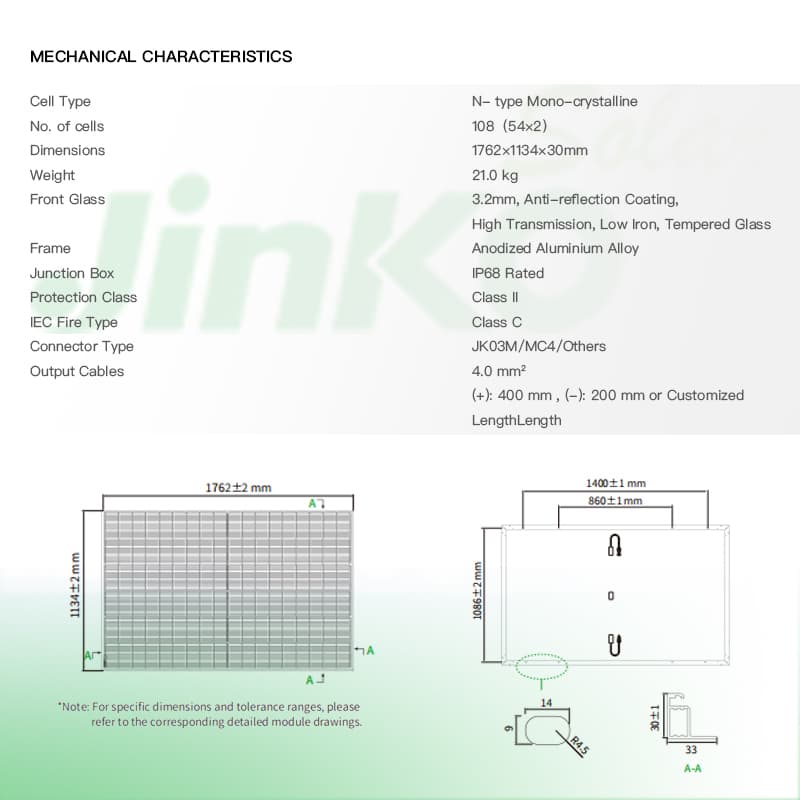

Mechanical Characteristics

ItemValue
Cell TypeN‑type Mono‑crystalline
No. of cells108 (54×2)
Dimensions1762×1134×30 mm
Weight21.0 kg
Front Glass3.2mm, Anti‑reflection Coating, High Transmission, Low Iron, Tempered Glass
FrameAnodized Aluminium Alloy
Junction BoxIP68 Rated
Protection ClassClass II
IEC Fire TypeClass C
Connector TypeJK03M/MC4/Others
Output Cables4.0 mm²(+): 400 mm , (-): 200 mm or Customized Length

Packaging Configuration

ItemValue
Pallet Dimensions1792×1140×1249 mm
Packing detail37 pcs/pallets, 74 pcs/stack,(Two pallets=One stack)962 pcs/40'HQ Container

Specifications (STC)

STC: Irradiance 1000W/m², Cell Temperature 25℃, AM=1.5

Item 430Wp 435Wp 440Wp 445Wp 450Wp 455Wp
Maximum Power‑Pmax [Wp] 430 435 440 445 450 455
Maximum Power Voltage‑Vmp [V] 32.58 32.78 32.99 33.19 33.39 33.58
Maximum Power Current‑Imp [A] 13.2 13.27 13.34 13.41 13.48 13.55
Open‑circuit Voltage‑Voc [V] 39.16 39.36 39.57 39.77 39.97 40.17
Short‑circuit Current‑Isc [A] 13.65 13.72 13.8 13.87 13.94 14.01
Module Efficiency STC [%] 21.52 21.77 22.02 22.27 22.52 22.77
Power Tolerance 0 ~ +3 %
Temperature Coefficients of Pmax -0.29 %/℃
Temperature Coefficients of Voc -0.25 %/℃
Temperature Coefficients of Isc 0.045 %/℃
Application Conditions
ItemValue
Operating Temperature-40 ℃ ~ +70℃
Maximum System Voltage1000 VDC (IEC)
Maximum Series Fuse Rating25 A
