Product Description

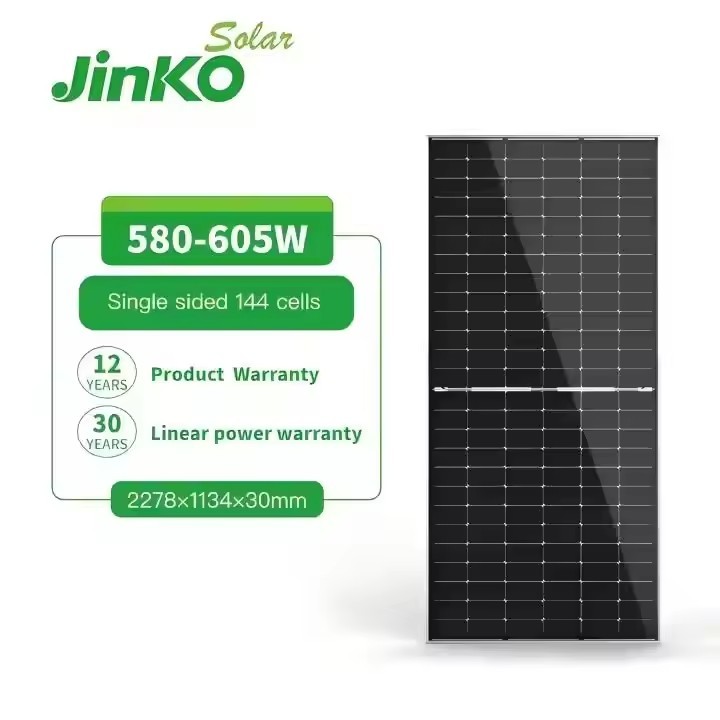

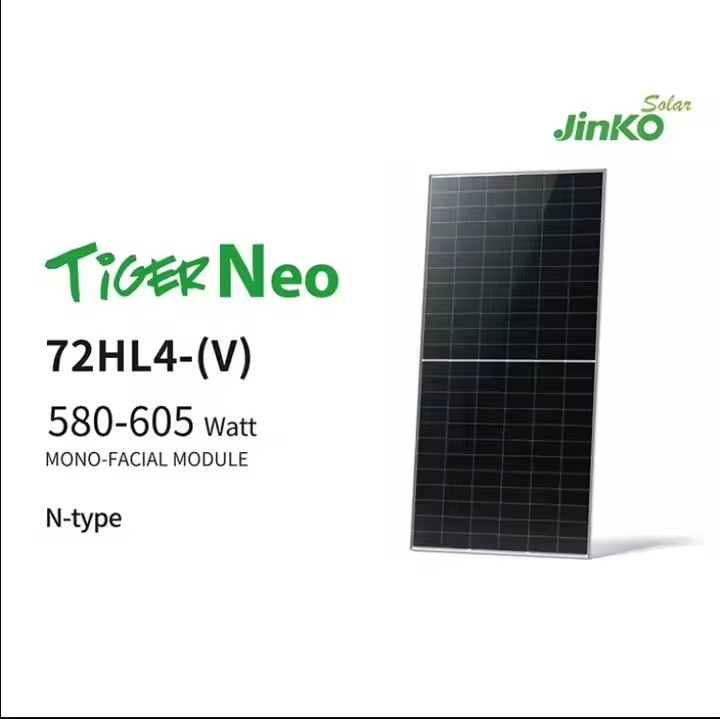

Jinko Tiger Neo N-type 72HL4-(V) 580-605W Solar Panel

Jinko Tiger Neo N-type 72HL4-(V) 580-605W Solar Panel features advanced N-type TOPCon cell technology and a high-efficiency 144-cell half-cut design, delivering up to 605W power output and 23.42% module efficiency.

With improved light utilization, lower temperature coefficient, and enhanced long-term reliability, this module ensures stable energy generation even under high-temperature and low-light conditions. The high-power output design helps reduce installation costs and maximize energy yield for utility-scale solar farms, commercial rooftops, and industrial PV applications.

Built with a durable aluminum frame, anti-reflective tempered glass, and an IP68-rated junction box, the Tiger Neo 72HL4-(V) provides excellent resistance against harsh environmental conditions while maintaining reliable performance throughout its service life.

Product Features

1. High Efficiency N-type TOPCon Technology

Utilizes advanced N-type monocrystalline TOPCon cells for higher conversion efficiency and improved power output.

Achieves up to 605W maximum power output and 23.42% module efficiency.

Lower degradation characteristics compared with conventional P-type modules, ensuring better long-term energy performance.

2. Superior Low-Light & High-Temperature Performance

Optimized cell structure improves energy harvesting under weak sunlight conditions.

Excellent temperature coefficient of -0.29%/℃, maintaining higher output performance in hot climates.

Suitable for diverse environments ranging from -40℃ to +70℃ operating temperatures.

3. High Power Output & Reduced BOS Cost

Power range from 580W to 605W, reducing the number of modules required for large-scale installations.

Higher wattage helps decrease system balance costs (BOS) and improves project installation efficiency.

Ideal for utility-scale solar farms, commercial buildings, and industrial rooftop applications.

4. Enhanced Durability & Reliability

Equipped with 3.2mm anti-reflective, high-transmission tempered glass for improved light absorption and mechanical strength.

IP68-rated junction box provides excellent protection against dust and moisture.

Anodized aluminum alloy frame ensures long-term structural stability.

5.Flexible System Compatibility

Supports up to 1500V DC maximum system voltage, suitable for high-voltage PV systems.

Compatible with mainstream solar mounting systems and inverters.

Designed for efficient installation in large-scale solar projects.

SPECIFICATIONS
