Jinko Tiger Neo 78HL4-BDV 625-650W Dual Glass N-type Solar Panel
- Category: Jinko Solar Panels
- Features
Product Description

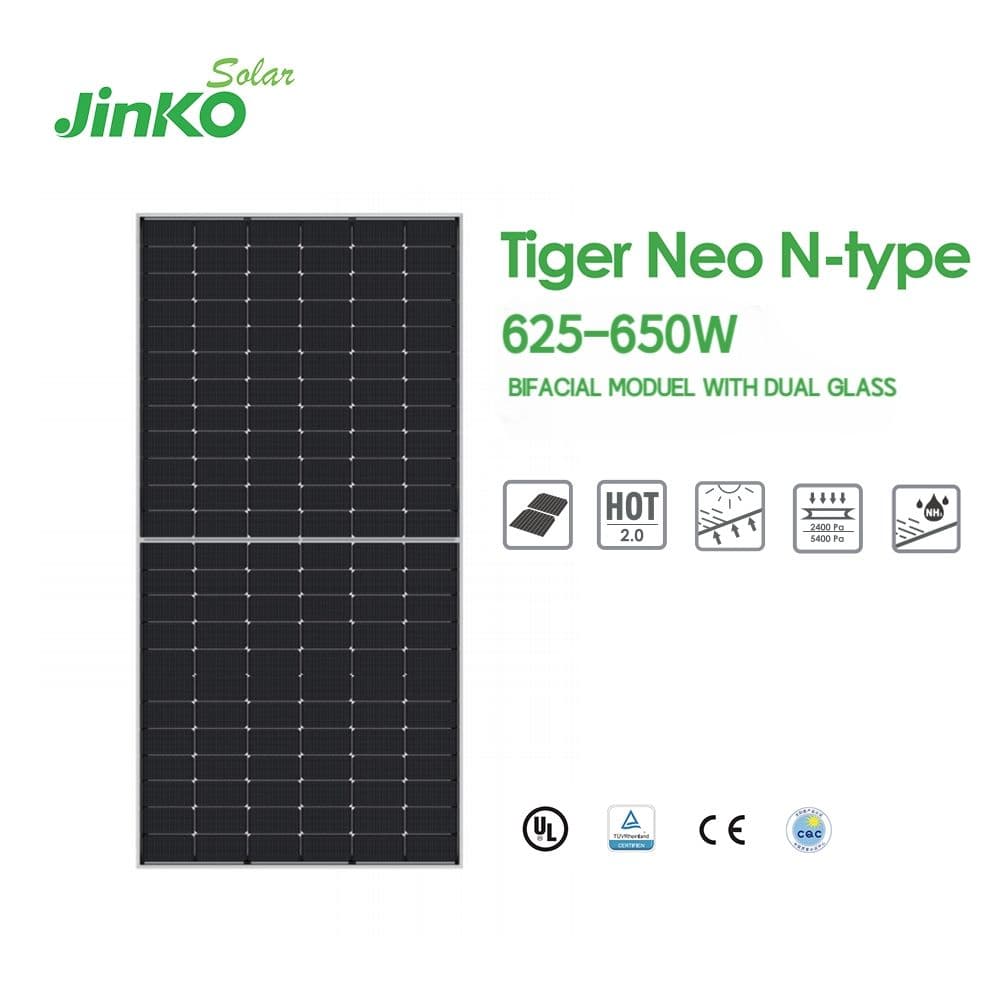

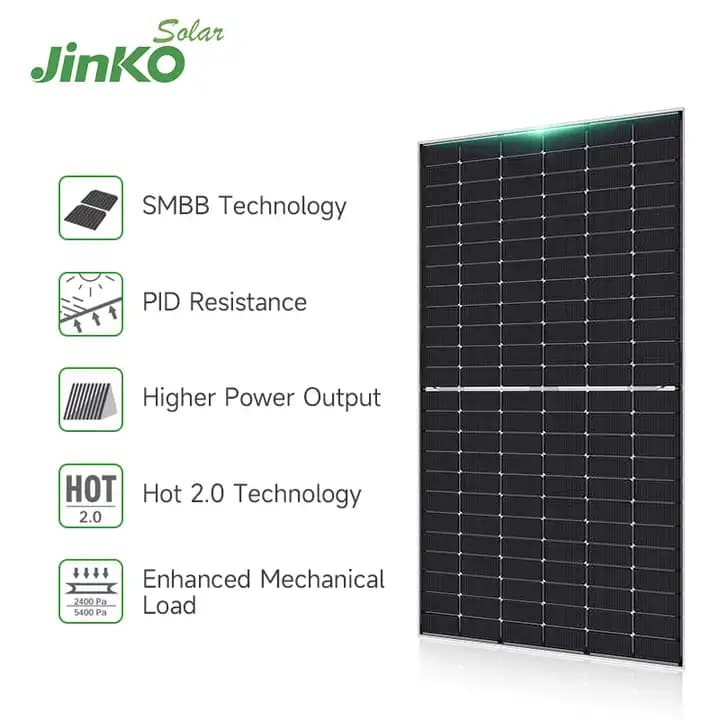

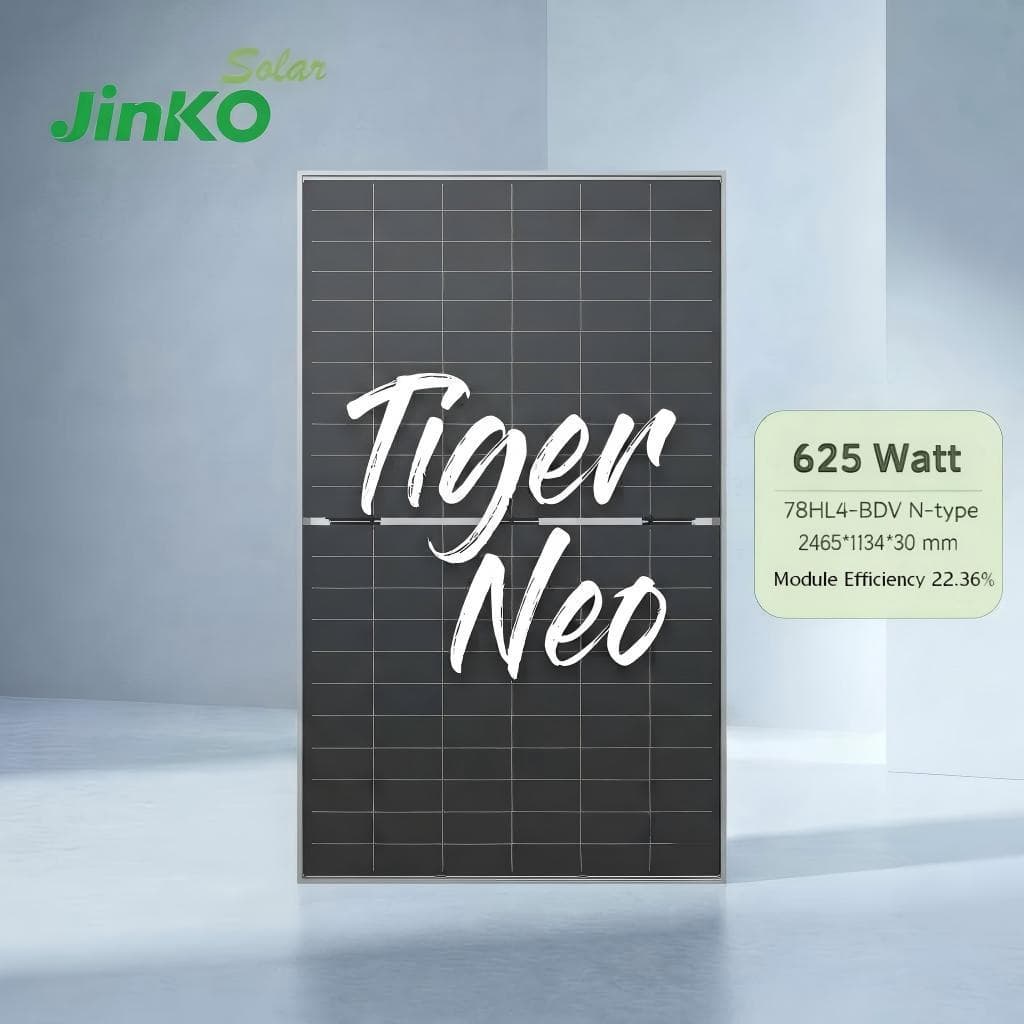

Jinko Tiger Neo N-type 78HL4-BDV 625-650W Solar Panel
Jinko Tiger Neo N-type 78HL4-BDV 625-650W Solar Panel integrates advanced N-type TOPCon cell technology, high-density 182mm silicon wafers, and bifacial dual-glass module design, delivering exceptional power output and long-term energy yield.
With a maximum power output of 650W and module efficiency up to 23.25%, this high-performance PV module effectively increases electricity generation per installation area while reducing overall system costs. The advanced N-type technology provides lower degradation, better temperature performance, and enhanced reliability compared with traditional P-type modules.
Featuring a 156-cell (78×2) half-cell configuration, 2.0mm front and rear glass structure, and IP68-rated junction box, the Tiger Neo 78HL4-BDV offers excellent durability and environmental resistance, making it ideal for utility-scale solar farms, commercial rooftops, and industrial PV projects.
Product Features
1. Advanced N-type TOPCon Technology
Equipped with N-type monocrystalline TOPCon cells for higher conversion efficiency and improved energy output.
Provides a power range of 625W-650W, with maximum module efficiency reaching 23.25%.
Lower light-induced degradation (LID) and better long-term performance compared with conventional P-type modules.
Ensures stable power generation throughout the module’s service life.
2. High Power Output & Improved Energy Yield
Utilizes 182mm large-size silicon wafers and 156 half-cut cells (78×2) to maximize module power density.
High wattage design reduces the number of modules required for large-scale solar installations.
Helps lower BOS (Balance of System) costs and improve installation efficiency.
Suitable for utility-scale solar plants, commercial buildings, and industrial PV applications.
3. Bifacial Dual Glass Design
Adopts a bifacial module structure, allowing both front and rear sides to capture solar energy and increase overall energy generation.
Dual-glass construction improves resistance against moisture, UV exposure, and harsh environmental conditions.
Provides enhanced reliability and extended module durability for long-term outdoor operation.
4. Excellent Performance Under Harsh Conditions
Optimized N-type cell technology delivers better performance in high-temperature and low-light environments.
Temperature coefficient of power reaches approximately -0.29%/℃, helping maintain higher output in hot climates.
Operating temperature range: -40℃ to +85℃, suitable for various climate conditions.
5. High Reliability & Long-Term Durability
2.0mm anti-reflective coated front glass improves light transmission and mechanical strength.
2.0mm heat-strengthened rear glass enhances structural durability and weather resistance.
IP68-rated junction box provides excellent protection against dust and water ingress.
Anodized aluminum alloy frame ensures stable mechanical performance in outdoor environments.
6. Optimized for Large-Scale PV Systems
Supports up to 1500V DC maximum system voltage for high-voltage solar installations.
Compatible with mainstream solar inverters and mounting systems.
Designed for high-efficiency photovoltaic projects requiring maximum power generation and reliability.
SPECIFICATIONS
| Item | Value |
|---|---|
| Cell Type | N‑type Mono‑crystalline |
| No. of cells | 156 (78×2) |
| Dimensions | 2465×1134×30 mm |
| Weight | 34.0 kg |
| Front Glass | 2.0 mm, Anti‑reflection Coating |
| Back Glass | 2.0 mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Connector Type | JK03M/MC4/Others |
| Output Cables | 4.0 mm²(+): 400 mm , (-): 200 mm or Customized Length |
Packaging Configuration
| Item | Value |
|---|---|
| Pallet Dimensions | 2525×1140×1251 mm |
| Packing Detail | 36 pcs/pallets, 72 pcs/stack,(Two pallets = One stack)576 pcs/40'HQ Container |
Specifications (STC)
STC: Irradiance 1000W/m², Cell Temperature 25℃, AM=1.5
| Item | 625Wp | 630Wp | 635Wp | 640Wp | 645Wp | 650Wp |
|---|---|---|---|---|---|---|
| Maximum Power‑Pmax [Wp] | 625 | 630 | 635 | 640 | 645 | 650 |
| Maximum Power Voltage‑Vmp [V] | 47.54 | 47.70 | 47.86 | 48.02 | 48.17 | 48.33 |
| Maximum Power Current‑Imp [A] | 13.15 | 13.21 | 13.27 | 13.33 | 13.39 | 13.45 |
| Open‑circuit Voltage‑Voc [V] | 56.95 | 57.08 | 57.21 | 57.34 | 57.47 | 57.60 |
| Short‑circuit Current‑Isc [A] | 13.80 | 13.86 | 13.92 | 13.98 | 14.04 | 14.10 |
| Module Efficiency STC [%] | 22.36 | 22.54 | 22.72 | 22.90 | 23.07 | 23.25 |
| Power Tolerance | 0 ~ +3 % | 0 ~ +3 % | 0 ~ +3 % | 0 ~ +3 % | 0 ~ +3 % | 0 ~ +3 % |
| Temperature Coefficients of Pmax | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ |
| Temperature Coefficients of Voc | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ |
| Temperature Coefficients of Isc | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ |
Application Conditions
| Item | Value |
|---|---|
| Operating Temperature | -40 ℃ ~ +70℃ |
| Maximum System Voltage | 1500 VDC (IEC) |
| Maximum Series Fuse Rating | 30 A |
| Bifaciality Coefficient | φVoc: 98±5 %, φIsc: 80±5 %, φPmax: 80±5 % |
