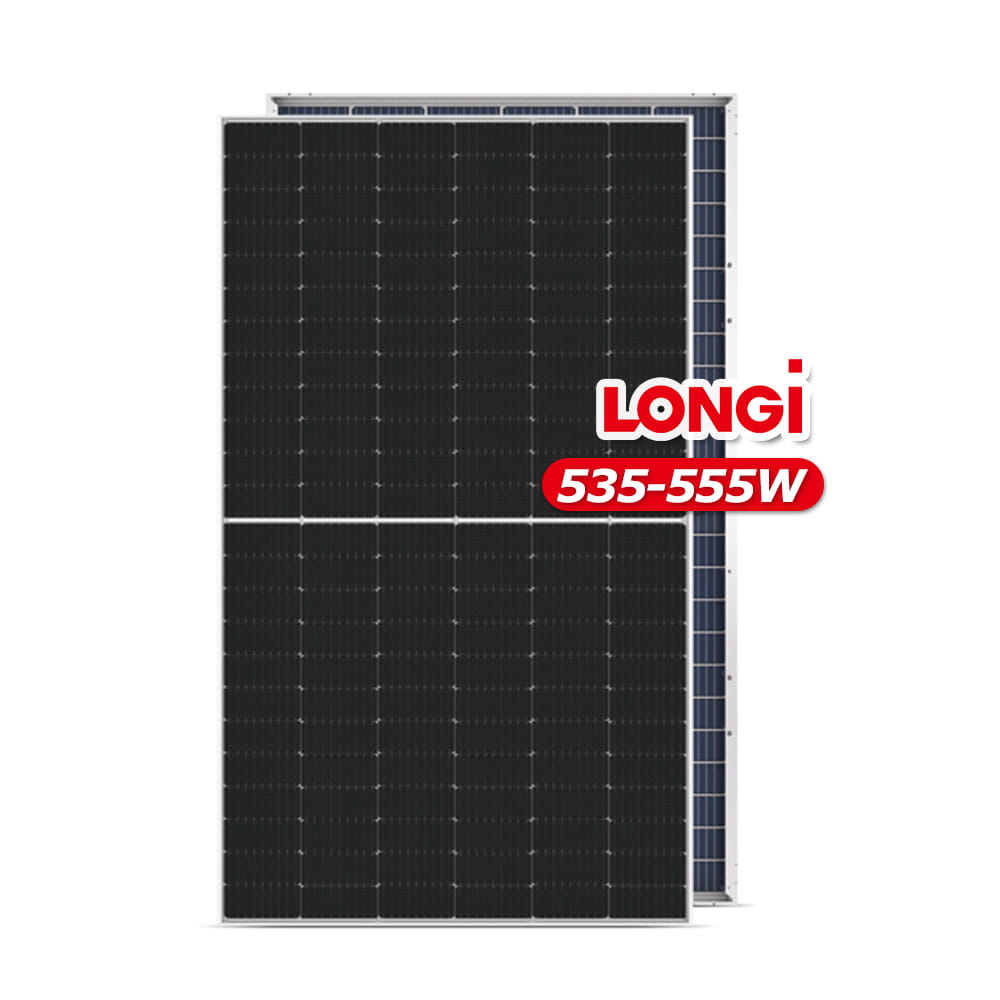

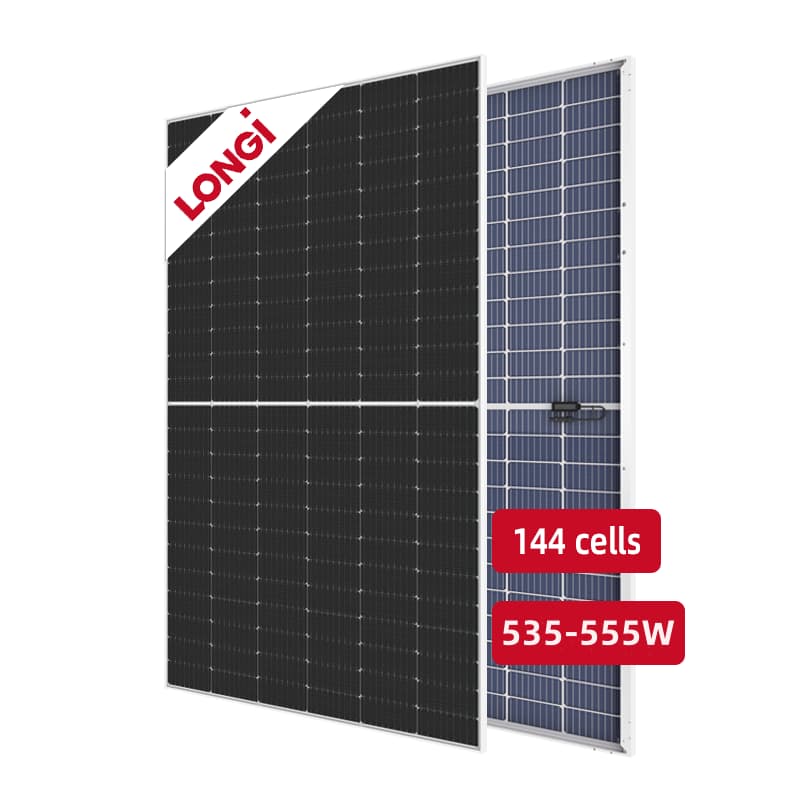

LONGi Hi-MO 5 LR5-72HBD 535W-555W Bifacial Half-Cell Solar Panel
- Category: Longi Solar Panels
- Features
Product Description
LONGi Hi-MO 5 LR5-72HBD 535W-555W Bifacial Half-Cut Solar Panel | M10, 1500V, 21.5% Max Efficiency, Dual Glass
The LONGi Hi-MO 5 LR5-72HBD is a 535W–555W bifacial half-cut solar module engineered on the M10 gallium-doped wafer — the ideal choice for ultra-large power plants. It combines advanced half-cell technology, 9-busbar design and integrated segmented ribbons to deliver up to 21.5% module efficiency with only 0~3% positive power tolerance. Built with 2.0+2.0mm dual-glass and a 1500V system rating, it offers globally validated bifacial energy yield, lower operating temperature and long-term reliability backed by a 30-year linear power warranty.
Product Features
- M10 Gallium-Doped Wafer— Lower LID, higher reliability and stable power output over the full service life.
- 9-Busbar Half-Cut Cel— Reduced cell current, lower hot-spot risk and better shading tolerance.
- Integrated Segmented Ribbons — Lower series resistance for superior module efficiency.
- Bifacial Power Gain — Up to 70±5% bifaciality; rear-side gain reaches 681W at 25% gain (545W reference).
- Dual-Glass 2.0+2.0mm Build— Heat-strengthened, high PID resistance and excellent durability for harsh environments.
- 0~3% Power Tolerance & <2% First-Year Degradation— Year 2–30 degradation of only 0.45%/year.
- DC1500V System Voltage — Lower BOS cost and higher system efficiency.
- Proven Mechanical Strength— 5400Pa front / 2400Pa rear static load; passes 25mm hailstone test at 23m/s.
- Extended Warranty— 12-year materials & workmanship + 30-year extra linear power output warranty.
- Full Certifications— IEC 61215/61730, UL 61730, ISO 9001/14001/45001, IEC 62941, TÜV SÜD, SGS, CE.
Specifications
Mechanical Parameters
| Item | Value |
|---|---|
| Cell Orientation | 144 (6×24) |
| Junction Box | IP68, three diodes |
| Output Cable | 4mm², +400 / -200mm, ±1400mm (customizable) |
| Glass | Dual glass, 2.0+2.0mm heat strengthened |
| Frame | Anodized aluminum alloy |
| Weight | 32.6 kg |
| Dimension | 2278 × 1134 × 35 mm |
| Packaging | 31pcs/pallet · 155pcs/20'GP · 620pcs/40'HC |
Electrical Characteristics (STC)
| Model | Pmax (W) | Voc (V) | Isc (A) | Vmp (V) | Imp (A) | Efficiency |
|---|---|---|---|---|---|---|
| LR5-72HBD-535M | 535 | 49.35 | 13.78 | 41.50 | 12.90 | 20.7% |
| LR5-72HBD-540M | 540 | 49.50 | 13.85 | 41.65 | 12.97 | 20.9% |
| LR5-72HBD-545M | 545 | 49.65 | 13.92 | 41.80 | 13.04 | 21.1% |
| LR5-72HBD-550M | 550 | 49.80 | 13.99 | 41.95 | 13.12 | 21.3% |
| LR5-72HBD-555M | 555 | 49.95 | 14.05 | 42.10 | 13.19 | 21.5% |
Bifacial Power Gain (545W reference)
| Rear Gain | Pmax (W) | Voc (V) | Isc (A) | Vmp (V) | Imp (A) |
|---|---|---|---|---|---|
| 5% | 572 | 49.65 | 14.61 | 41.80 | 13.69 |
| 10% | 600 | 49.65 | 15.31 | 41.80 | 14.34 |
| 15% | 627 | 49.75 | 16.00 | 41.90 | 14.99 |
| 20% | 654 | 49.75 | 16.70 | 41.90 | 15.65 |
| 25% | 681 | 49.75 | 17.39 | 41.90 | 16.30 |
Operating Parameters & Ratings
| Item | Value |
|---|---|
| Operating Temperature | -40℃ ~ +85℃ |
| Power Output Tolerance | 0 ~ 3% |
| Voc / Isc Tolerance | ±3% |
| Max System Voltage | DC1500V (IEC/UL) |
| Max Series Fuse Rating | 30A |
| NOCT | 45±2℃ |
| Protection Class | Class II |
| Bifaciality | 70±5% |
| Fire Rating | UL Type 29 / IEC Class C |
| Front Max Static Load | 5400Pa |
| Rear Max Static Load | 2400Pa |
| Hailstone Test | 25mm @ 23m/s |
| Temp. Coeff. of Isc / Voc / Pmax | +0.050% / -0.265% / -0.340% per ℃ |
