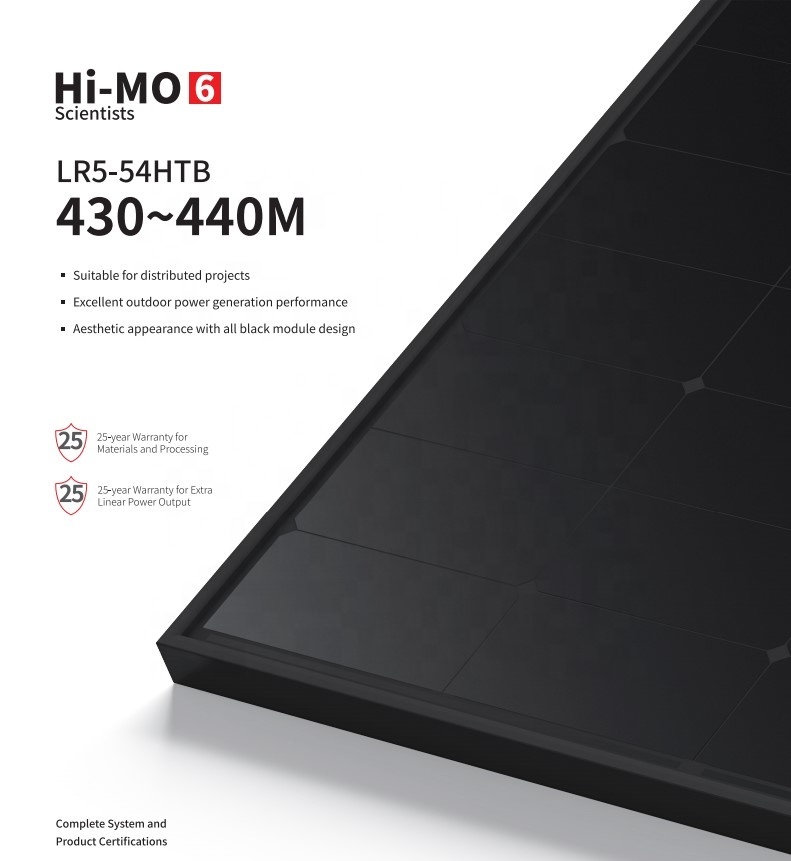

LONGi Hi-MO 6 LR5-54HTB 430-440W Solar Panel
- Category: Longi Solar Panels
- Features
Product Description
LONGi Hi-MO 6 LR5-54HTB 430-440W solar panel is a high-efficiency N-type photovoltaic module designed for residential and commercial distributed energy applications. Featuring advanced HPBC cell technology, this module delivers up to 440W power output and 22.5% module efficiency, providing higher energy generation and long-term reliability.
With a compact 1722×1134×30mm design, lightweight structure, and excellent low-light performance, the LR5-54HTB series is ideal for rooftop solar systems where space efficiency and aesthetics are important. The module offers stable power output with 25-year linear power warranty, ensuring reliable energy production throughout its lifecycle.
Product Features
High Efficiency HPBC Technology
Equipped with LONGi advanced HPBC solar cell technology for improved light absorption and higher conversion efficiency.
Maximum module efficiency up to 22.5%, increasing energy yield in limited installation spaces.
Higher Power Output
Available in 430W, 435W, and 440W power classes.
Optimized electrical performance for residential and commercial rooftop solar applications.
Excellent Low-Light Performance
Enhanced energy generation capability under cloudy conditions, mornings, and evenings.
Suitable for different climate environments and distributed solar projects.
Long-Term Reliability
First-year power degradation less than 1.5%.
Annual degradation from year 2 to year 25 only 0.40%.
Supported by a 25-year linear power warranty.
Durable Design for Harsh Environments
High-quality tempered glass and anodized aluminum alloy frame improve mechanical strength.
Certified for high wind and snow load resistance:
Front load: 5400Pa
Rear load: 2400Pa
Flexible Installation
Compact module size:
1722 × 1134 × 30mm
Lightweight design:
20.8kg
Compatible with various residential and commercial rooftop mounting systems.
Specifications
Electrical Characteristics (STC)
| Model | LR5-54HTB-430M | LR5-54HTB-435M | LR5-54HTB-440M |
|---|---|---|---|
| Maximum Power (Pmax) | 430W | 435W | 440W |
| Module Efficiency | 22.0% | 22.3% | 22.5% |
| Open Circuit Voltage (Voc) | 39.43V | 39.63V | 39.83V |
| Short Circuit Current (Isc) | 14.00A | 14.08A | 14.15A |
| Voltage at Maximum Power (Vmp) | 33.16V | 33.36V | 33.56V |
| Current at Maximum Power (Imp) | 12.97A | 13.05A | 13.12A |
Mechanical Specifications
| Item | Specification |
|---|---|
| Solar Cell Type | HPBC N-type Mono Cell |

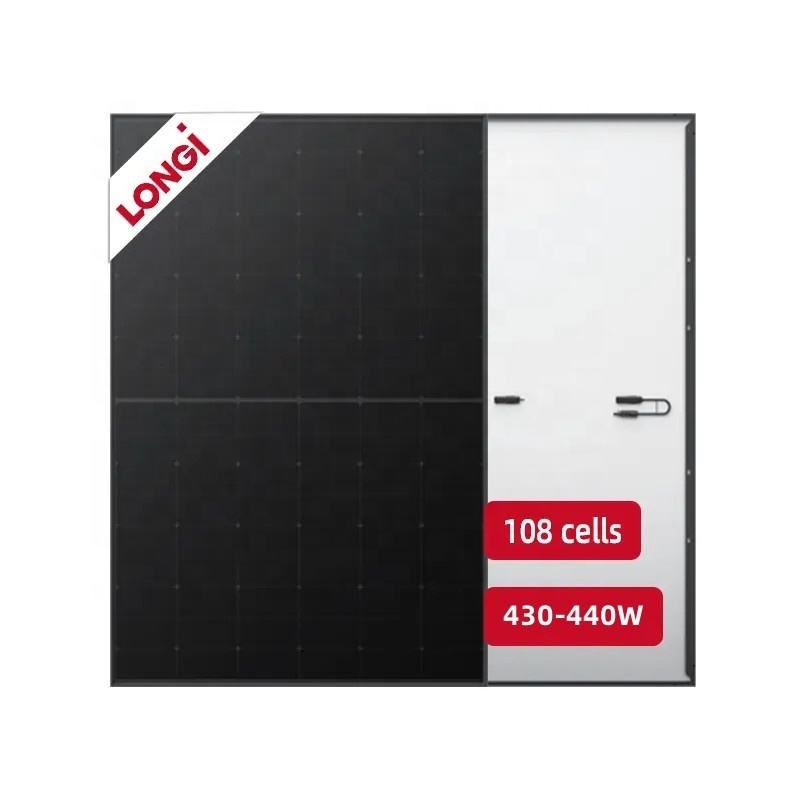

| Cell Arrangement | 108 cells (6×18) |
| Module Dimension | 1722 × 1134 × 30mm |
| Weight | 20.8kg |
| Glass | 3.2mm Coated Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Output Cable | 4mm² Cable, ±1200mm |
| Application | Residential / Commercial / Industrial Rooftop Solar |
Operating Parameters
| Item | Specification |
|---|---|
| Operating Temperature | -40℃ ~ +85℃ |
| Maximum System Voltage | DC1500V |
| Maximum Series Fuse Rating | 25A |
| Power Tolerance | 0~3% |
| Protection Class | Class II |
| Fire Rating | UL Type 1 or 2 / IEC Class C |
Temperature Characteristics
| Parameter | Value |
|---|---|
| Temperature Coefficient of Pmax | -0.290%/℃ |
| Temperature Coefficient of Voc | -0.230%/℃ |
| Temperature Coefficient of Isc | +0.050%/℃ |
Warranty
25-Year Linear Power Warranty
First-year degradation: ≤1.5%
Annual degradation: ≤0.40% (Years 2-25)
