Longi Hi-Mo X10 LR7-72HVH 625-645M Monocrystalline Double Glass Solar Panel
- Category: Longi Solar Panels
- Features
Product Description

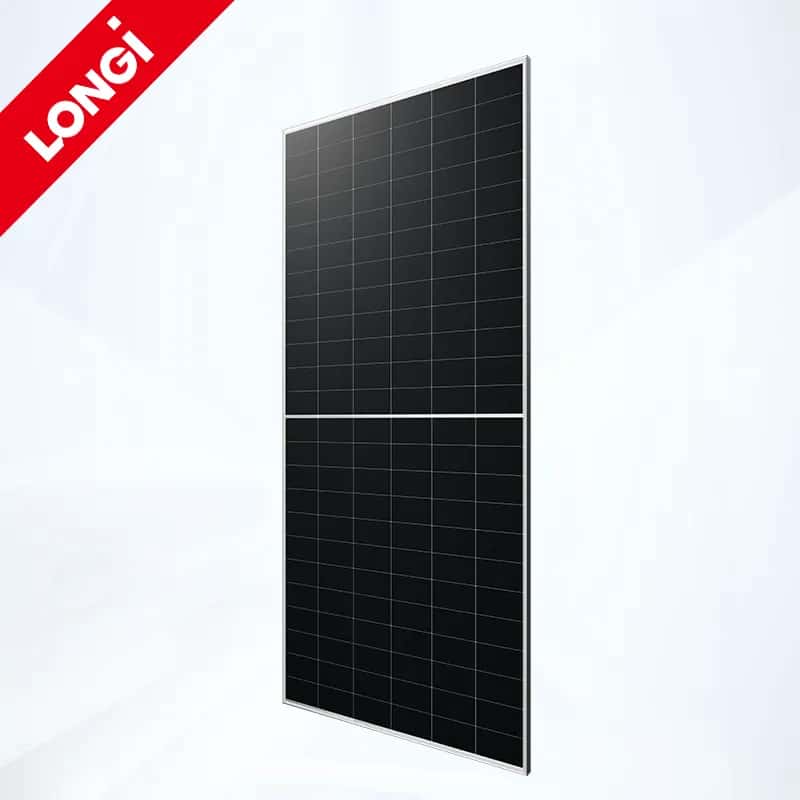

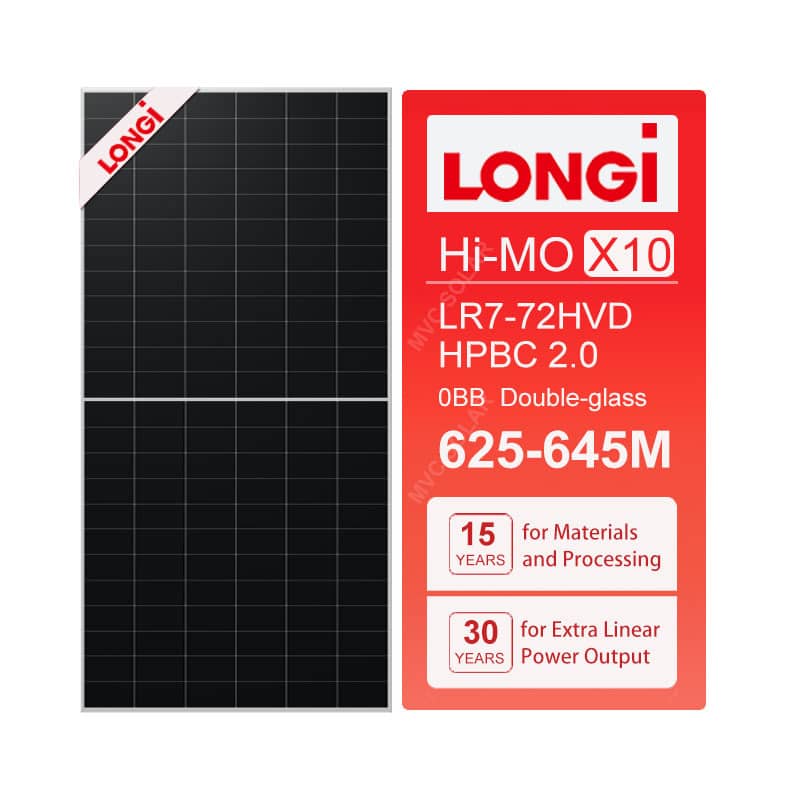

Longi Hi-Mo X10 LR7-72HVH 625-645M Monocrystalline Double Glass Solar Panel
LONGi Hi-MO X10 LR7-72HVH 625-645M Solar Panel features advanced BC cell technology and high-efficiency monocrystalline design, delivering excellent power output and reliable energy generation.
With a power range of 625W to 645W and module efficiency up to 23.9%, this double glass solar panel provides higher energy yield, improved durability, and long-term performance for commercial, industrial, and utility-scale solar applications.
Product Features
High Power Output
- Power output range from 625W to 645W
- High module efficiency up to 23.9%
- Maximizes energy generation with limited installation space
Advanced BC Cell Technology
- Improved light utilization and lower operating temperature
- Enhances module performance and long-term energy yield
Excellent Reliability
- Double glass structure improves durability and resistance to harsh environments
- High resistance against moisture, corrosion, and mechanical stress
Stable Performance Under Different Conditions
- Excellent temperature coefficient of -0.260%/°C
- Reliable operation from -40°C to +85°C
- Suitable for various climate conditions
Long-Term Energy Guarantee
- 30-year linear power warranty
- Low annual degradation for sustained power generation
Specifications
Electrical Characteristics (STC)
| Model | LR7-72HVH-625M | LR7-72HVH-630M | LR7-72HVH-635M | LR7-72HVH-640M | LR7-72HVH-645M |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 625W | 630W | 635W | 640W | 645W |
| Module Efficiency | 23.1% | 23.3% | 23.5% | 23.7% | 23.9% |
| Open Circuit Voltage (Voc) | 53.3V | 53.4V | 53.5V | 53.6V | 53.7V |
| Voltage at Maximum Power (Vmpp) | 44.16V | 44.26V | 44.36V | 44.46V | 44.56V |
| Short Circuit Current (Isc) | 14.85A | 14.93A | 15.01A | 15.09A | 15.17A |
| Current at Maximum Power (Impp) | 14.16A | 14.24A | 14.32A | 14.40A | 14.48A |
Mechanical Specifications
| Item | Details |
|---|---|
| Solar Cell Type | Monocrystalline BC Cell |
| Cell Arrangement | 144 Cells (6×24) |
| Module Structure | Double Glass |
| Glass Type | 2.0mm + 2.0mm Semi-tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 33.5 kg |
| Junction Box | IP68, 3 Diodes |
| Cable | 4mm² |
| Maximum System Voltage | DC 1500V |
| Operating Temperature | -40°C ~ +85°C |
