Longi Mono LR5-72HTH 560-575W Mono Photovoltaic PV Solar Panels

Category: Longi Solar Panels
Features

Upgrade your solar array with LONGi Hi‑MO 6 Explorer LR5‑72HTH 560‑575 W HPBC solar panels. Delivering up to 22.3 % module efficiency, outstanding low‑light & high‑temperature performance with industry‑leading reliability. Perfect for residential rooftops and commercial distributed PV projects, backed by LONGi’s trusted 15‑year product and 25‑year linear‑power warranty.

Product Description

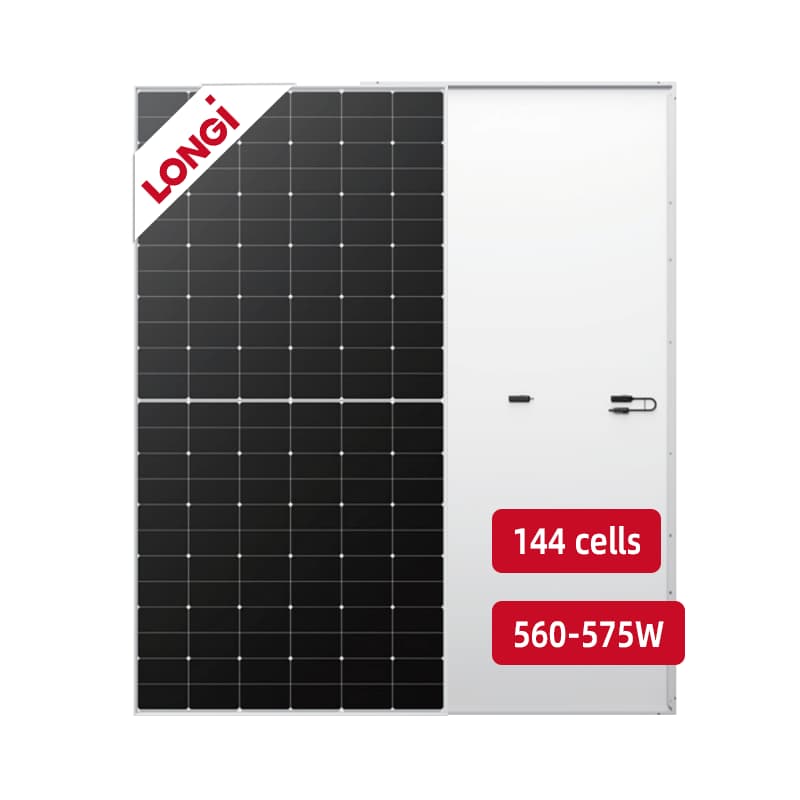

LONGi Hi‑MO 6 Explorer LR5‑72HTH (560‑575W) Solar Panel

The LONGi Hi‑MO 6 Explorer LR5‑72HTH is a high‑performance monocrystalline PV module spanning power ratings 560W, 565W, 570W, 575W, built on LONGi’s cutting‑edge HPBC (Hybrid Passivated Back Contact) cell technology. Featuring 144 half‑cut 182 mm mono‑cells, this single‑glass solar panel delivers module efficiency up to 22.3%, enabling higher energy output within limited roof space.

Manufactured by Tier‑1 PV giant LONGi Solar, the LR5‑72HTH series is engineered for distributed residential rooftops, commercial rooftops and small‑to‑medium industrial solar projects. Thanks to superior low‑light response, low‑temperature‑coefficient performance and enhanced anti‑PID & anti‑micro‑crack reliability, it maintains stable power yield under cloudy, partial‑shading or high‑temperature hot‑climate conditions.

Physical dimension: 2278 × 1134 × 35 mm, weight 27.5 kg, IP68‑rated junction box, MC4 connectors, 15‑year product warranty plus 25‑year linear power output warranty, fully certified to international IEC / UL standards. Sleek busbar‑free front‑surface design fits aesthetic‑focused residential and commercial installations.

Product Features

Core Technology

HPBC Hybrid Passivated Back‑Contact Technology: Rear‑side cell contacts eliminate front‑side busbars, maximise light absorption; cell efficiency exceeds 25%, module efficiency reaches up to 22.3% at 575W ratingLONGi

144 half‑cut monocrystalline cells (6×24 layout) reduces internal resistance, mitigates hot‑spot risk and boosts real‑world power generationMade-in-Ch...

Power tolerance: 0 ~ +3%, ensures modules meet or exceed nameplate power output

Superior Real‑World Performance

Excellent low‑light performance: maintains strong yield on cloudy days and partial‑shading scenarios

Low temperature coefficient: ‑0.29 %/℃ Pmax, minimises power drop under high ambient temperatures for hot‑climate regions

Reliable anti‑PID performance, full back‑welding process improves resistance to cell micro‑cracks during transport & installation.

Mechanical & Build Reliability

3.2 mm high‑transmittance anti‑reflection tempered single glass

Robust anodized aluminium alloy frame, certified for high wind & snow mechanical load

IP68 waterproof junction‑box with bypass diodes; 4.0 mm² output cables with MC4 compatible connectors

Operating temperature range: ‑40 °C ~ +85 °C, max system voltage: 1500 V

Warranty & Certifications

15‑year materials‑and‑processing product warranty

25‑year linear power performance warranty

Compliant with IEC 61215, IEC 61730, UL 61730 plus ISO quality & environmental management certifications

Use‑case Fit

Ideal for residential rooftop solar, commercial & industrial distributed PV plants

Modern streamlined visual appearance for aesthetic‑sensitive building projects

Electrical Characteristics

STC: AM1.5 1000W/m² 25℃ NOCT: AM1.5 800W/m² 20℃ 1m/s Test uncertainty for Pmax: ±3%

Module Type	LR5‑72HTH‑560M		LR5‑72HTH‑565M		LR5‑72HTH‑570M		LR5‑72HTH‑575M
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	560	418	565	422	570	426	575	430
Open Circuit Voltage (Voc/V)	51.61	48.46	51.76	48.60	51.91	48.74	52.06	48.88
Short Circuit Current (Isc/A)	13.94	11.26	14.01	11.31	14.07	11.36	14.14	11.42
Voltage at Maximum Power (Vmp/V)	43.46	39.66	43.61	39.79	43.76	39.93	43.91	40.07
Current at Maximum Power (Imp/A)	12.89	10.55	12.96	10.61	13.03	10.67	13.10	10.72
Module Efficiency(%)	21.7		21.9		22.1		22.3

Operating Parameters

Item	Value
Operational Temperature	-40℃ ~ +85℃
Power Output Tolerance	0 ~ 3%
Voc and Isc Tolerance	±3%
Maximum System Voltage	DC1500V (IEC/UL)
Maximum Series Fuse Rating	25A
Nominal Operating Cell Temperature	45±2℃
Protection Class	Class II
Fire Rating	UL type 1 or 2IEC Class C

Mechanical Loading

Item	Value
Front Side Maximum Static Loading	5400Pa
Rear Side Maximum Static Loading	2400Pa
Hailstone Test	25mm Hailstone at the speed of 23m/s

Temperature Ratings (STC)

Item	Value
Temperature Coefficient of Isc	+0.050%/℃
Temperature Coefficient of Voc	-0.230%/℃
Temperature Coefficient of Pmax	-0.290%/℃
