Risen RSM110-8 535-560W Monocrystalline Bifacial Double Glass Solar Panel
- Category: Risen Solar Panels
- Features
Product Description

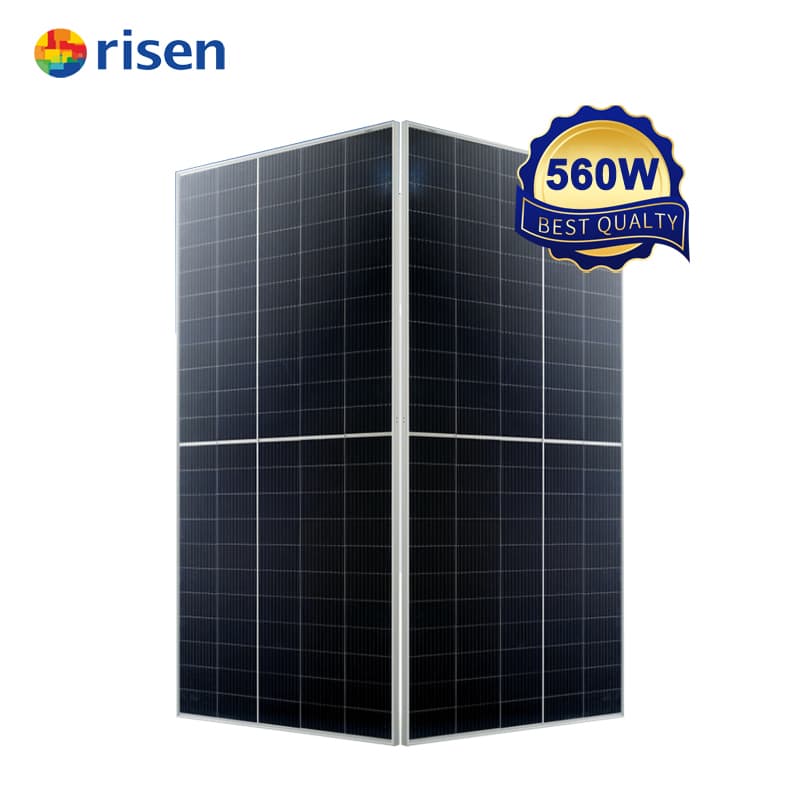

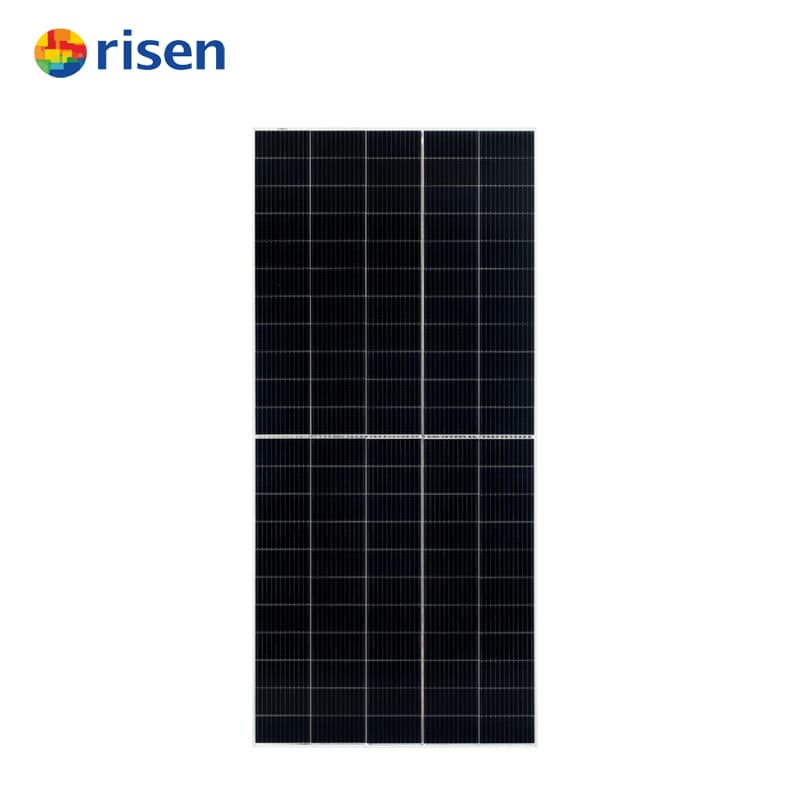

Risen RSM110-8 535-560W Monocrystalline Bifacial Double Glass Solar Panel
Risen RSM110-8-535-560BMDG Solar Panels are high-performance monocrystalline bifacial PERC modules designed for commercial, industrial, and utility-scale solar applications. Featuring 110-cell Mono PERC technology and double glass structure, the module delivers a power output range of 535W to 560W with maximum efficiency up to 21.4%.
The bifacial design allows the module to capture additional sunlight from the rear side, increasing overall energy yield. With excellent low-light performance, strong PID resistance, and high durability, Risen PV modules provide reliable power generation throughout their service life.
Designed for 1500V DC systems, this solar module is suitable for large-scale photovoltaic projects, ground-mounted solar plants, and commercial rooftop installations requiring high efficiency and long-term reliability.
Product Features
High Power Output
- Power range from 535W to 560W
- Maximum module efficiency up to 21.4%
- Advanced Mono PERC cell technology improves energy conversion efficiency
Bifacial Double Glass Technology
- Bifacial design captures sunlight from both front and rear sides
- Rear-side power generation increases total energy yield
- Suitable for high-reflective environments and ground-mounted systems
Excellent Reliability
- Strong PID resistance ensures stable long-term performance
- Excellent low irradiance performance for improved energy production
- Dual-stage 100% EL inspection ensures module quality and reliability
Durable Solar Module Design
- Double glass structure enhances mechanical strength and environmental resistance
- High resistance against harsh weather conditions
- Wind load up to 2400Pa and snow load up to 5400Pa under specific installation conditions
Flexible PV Applications
- Compatible with utility-scale, commercial, and industrial solar projects
- Supports 1500V DC system voltage
- Optimized design reduces BOS cost and improves installation efficiency
Technical Specifications
Electrical Characteristics (STC)
| Model | RSM110-8-535BMDG | RSM110-8-540BMDG | RSM110-8-545BMDG | RSM110-8-550BMDG | RSM110-8-555BMDG | RSM110-8-560BMDG |
|---|---|---|---|---|---|---|
| Maximum Power (Pmax) | 535W | 540W | 545W | 550W | 555W | 560W |
| Module Efficiency | 20.5% | 20.7% | 20.9% | 21.0% | 21.2% | 21.4% |
| Open Circuit Voltage (Voc) | 37.66V | 37.88V | 38.10V | 38.32V | 38.54V | 38.76V |
| Short Circuit Current (Isc) | 18.07A | 18.13A | 18.18A | 18.23A | 18.28A | 18.33A |
| Voltage at Maximum Power (Vmpp) | 31.36V | 31.56V | 31.76V | 31.96V | 32.16V | 32.35V |
| Current at Maximum Power (Impp) | 17.07A | 17.12A | 17.17A | 17.22A | 17.27A | 17.32A |

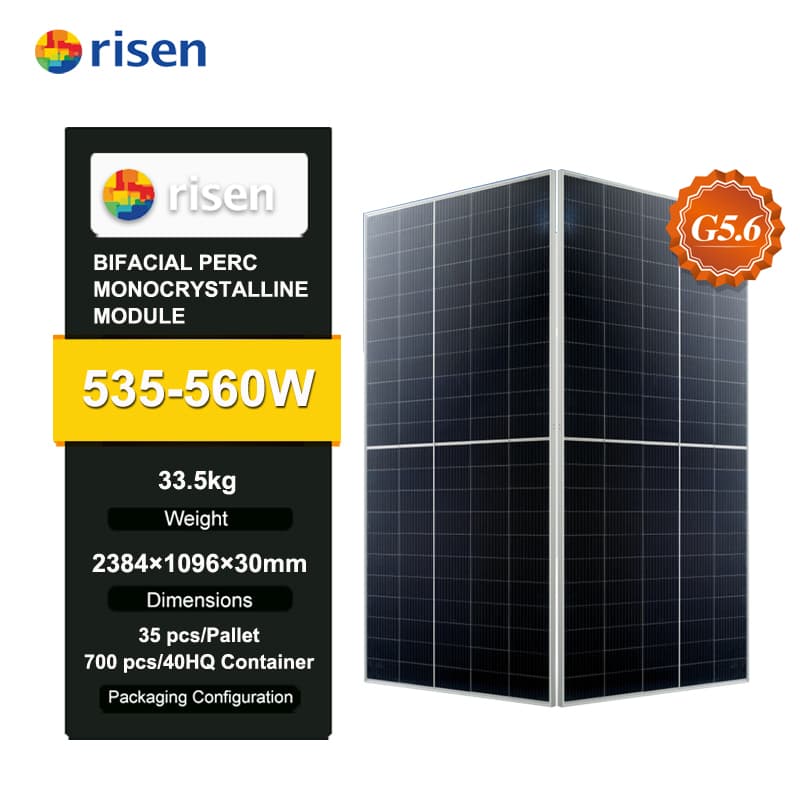

Mechanical Characteristics
| Item | Specification |
|---|---|
| Solar Cell Type | Monocrystalline PERC |
| Cell Configuration | 110 Cells (5×11 + 5×11) |
| Module Type | Bifacial Double Glass Module |
| Module Dimension | 2384 × 1096 × 30 mm |
| Weight | Approx. 33.5 kg |
| Front Glass | High Transmission Low Iron AR Coated Heat Strengthened Glass |
| Back Glass | Heat Strengthened Glass |
| Frame | Anodized Aluminum Alloy Frame |
| Junction Box | IP68, 1500VDC, 3 Schottky Bypass Diodes |
| Connector | Risen Twinsel PV-SY02 IP68 |
| Operating Temperature | -40℃ to +85℃ |
| Maximum System Voltage | 1500V DC |
Temperature & Performance Ratings
| Parameter | Value |
|---|---|
| Nominal Module Operating Temperature (NMOT) | 44 ± 2℃ |
| Temperature Coefficient of Pmax | -0.34%/℃ |
| Temperature Coefficient of Voc | -0.25%/℃ |
| Temperature Coefficient of Isc | 0.04%/℃ |
| Maximum Series Fuse Rating | 35A |
| Limiting Reverse Current | 35A |
