Trina 415-435W BACKSHEET Vertex S TSM-DE09R.08 Solar Panels
- Category: Trina Solar Panels
- Features
Product Description

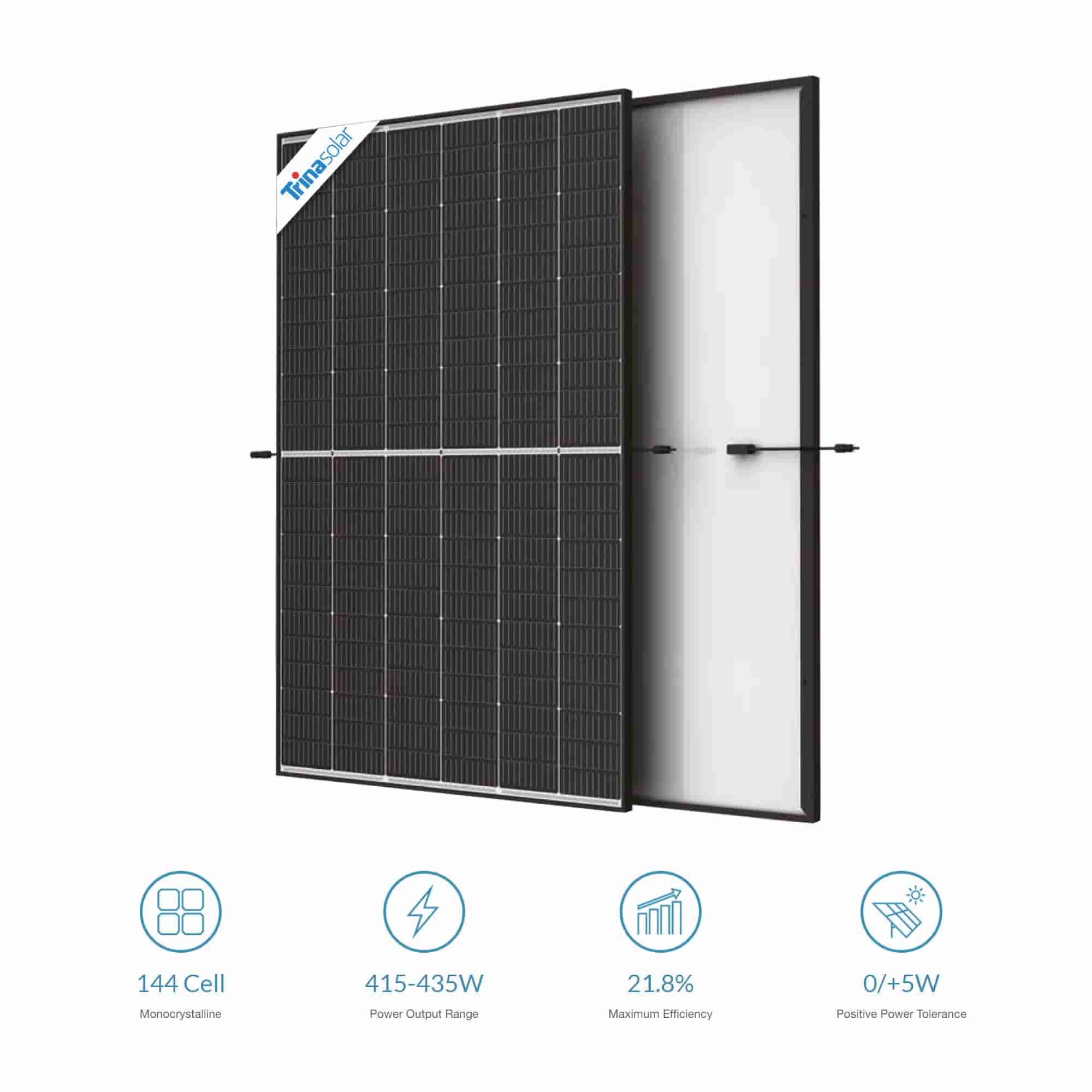

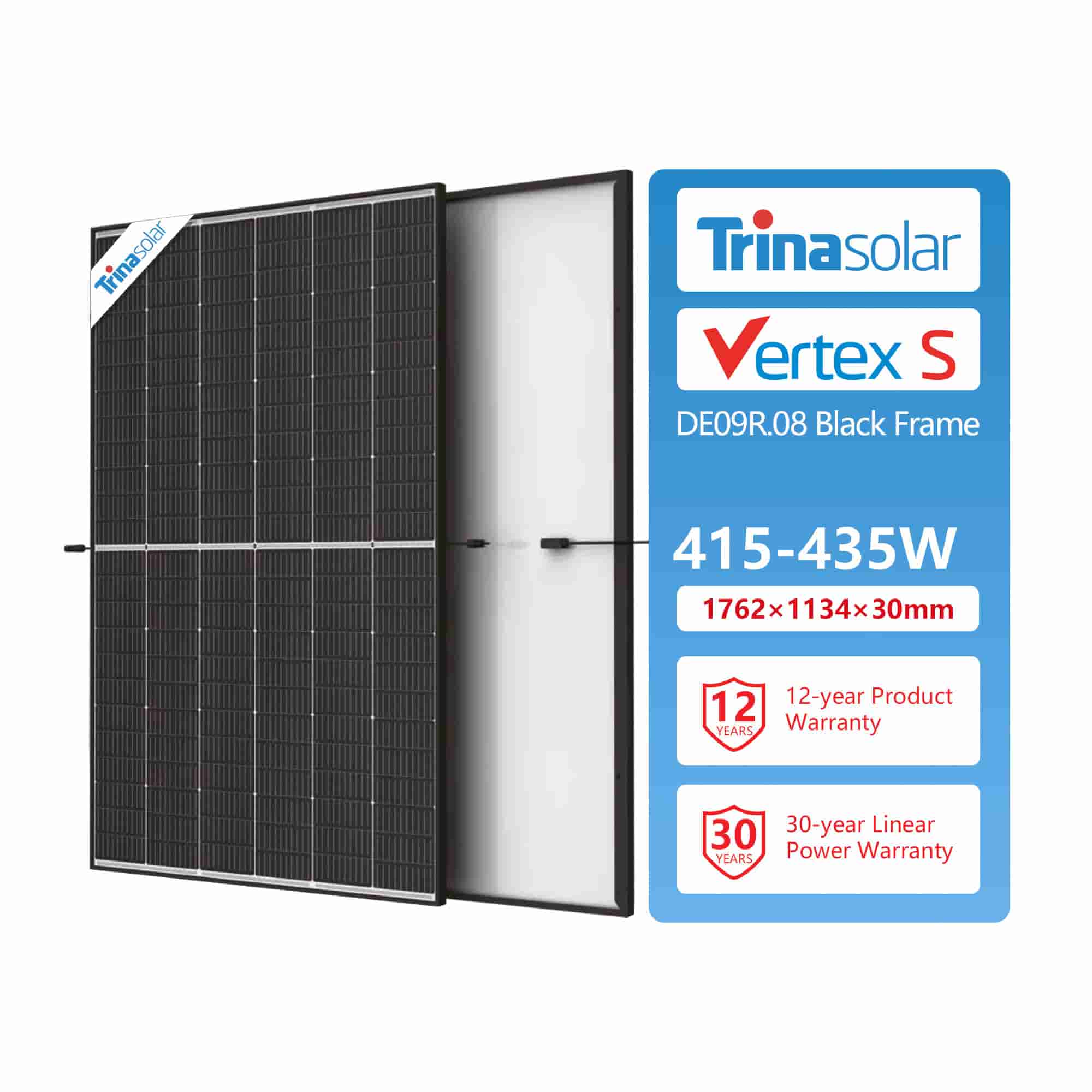

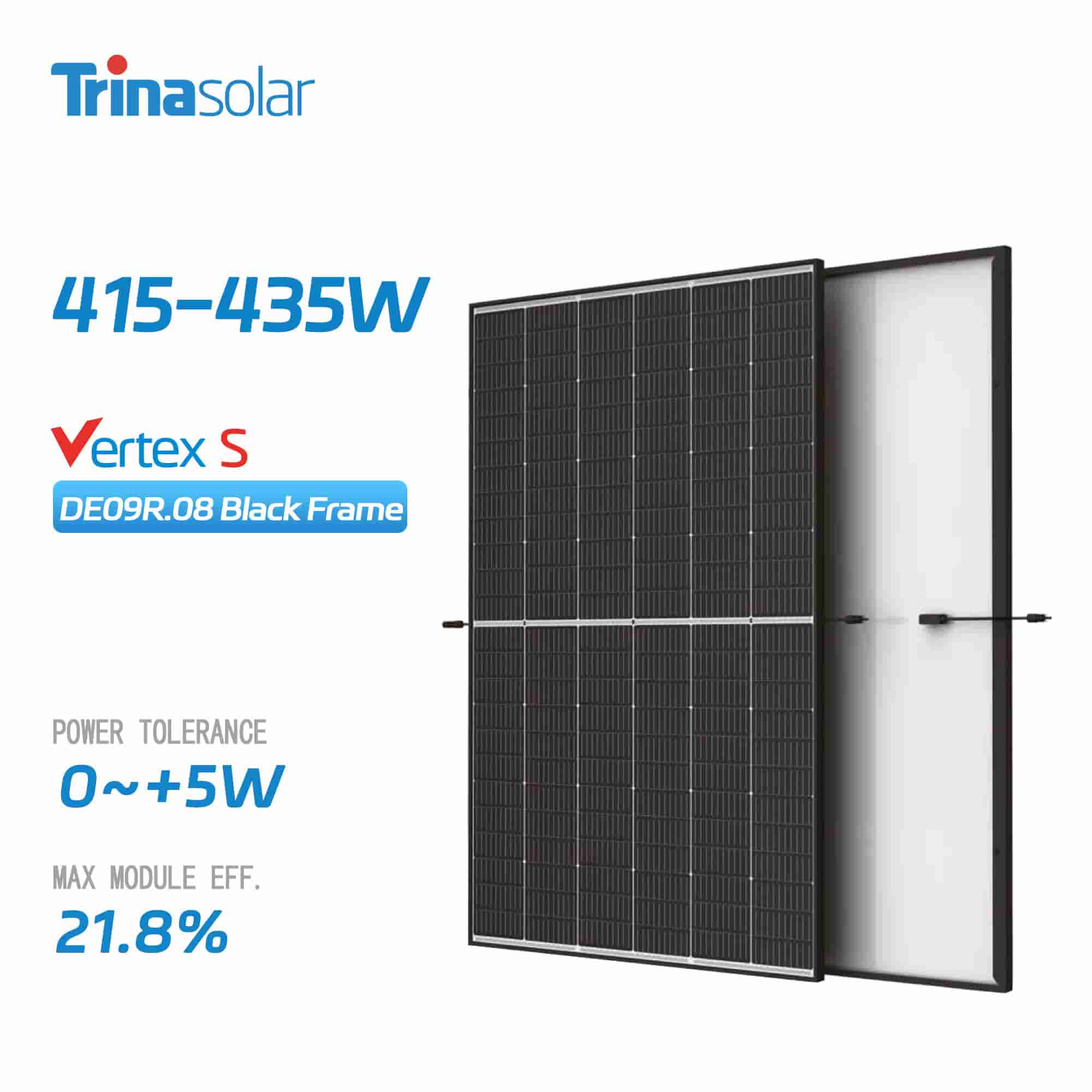

Trina 415-435W BACKSHEET Vertex S TSM-DE09R.08 Solar Panels
Trina Solar Vertex S TSM-DE09R.08 series is a high-performance monocrystalline PV module designed for residential, commercial rooftop, and distributed solar applications. Featuring advanced multi-busbar technology, half-cut cell design, and high-density interconnection technology, it delivers excellent power output and long-term reliability.
With a power range of 415W to 435W and module efficiency up to 21.8%, the Vertex S series provides an ideal balance of performance, durability, and system compatibility for modern solar installations.
Product Features
High Power Output
Powered by advanced mono PERC half-cut cells, the module achieves up to 435W output with improved energy generation capability.
Advanced Multi-Busbar Technology
Multi-busbar cell design reduces electrical losses, improves current collection, and enhances module reliability.
Compact & Lightweight Design
Optimized dimensions and weight make the module easy to transport, install, and suitable for various rooftop applications.
Excellent Durability
Designed to withstand harsh environmental conditions with strong resistance against wind, snow, and temperature variations.
High Compatibility
Supports multiple installation methods and is compatible with mainstream residential and commercial PV systems.
Long-Term Reliability
Provides stable power generation with a 15-year product warranty and 25-year linear power warranty.
Specifications
Electrical Characteristics (STC)
| Model | TSM-DE09R.08-415 | TSM-DE09R.08-420 | TSM-DE09R.08-425 | TSM-DE09R.08-430 | TSM-DE09R.08-435 |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 415W | 420W | 425W | 430W | 435W |
| Module Efficiency | 20.8% | 21.1% | 21.3% | 21.6% | 21.8% |
| Maximum Power Voltage (Vmp) | 31.7V | 31.9V | 32.1V | 32.3V | 32.5V |
| Maximum Power Current (Imp) | 13.1A | 13.2A | 13.2A | 13.3A | 13.4A |
| Open Circuit Voltage (Voc) | 38.3V | 38.5V | 38.7V | 38.9V | 39.1V |
| Short Circuit Current (Isc) | 13.8A | 13.9A | 14.0A | 14.1A | 14.2A |
Mechanical Specifications
| Item | Specification |
|---|---|
| Cell Technology | Monocrystalline Silicon |
| Cell Type | Half-Cut Mono PERC |
| Number of Cells | 144 Cells (6×24) |
| Module Dimensions | 1762 × 1134 × 30 mm |
| Weight | Approx. 21 kg |
| Front Glass | 3.2 mm Tempered Glass |
| Back Material | White Backsheet |
| Frame Material | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Connector | MC4 Compatible |
| Cable Length | 1100 mm |
Operating Conditions
| Parameter | Specification |
|---|---|
| Maximum System Voltage | 1500V DC |
| Operating Temperature | -40℃ ~ +85℃ |
| Maximum Series Fuse Rating | 25A |
| Front Load | 5400 Pa |
| Rear Load | 4000 Pa |
| Power Temperature Coefficient | -0.34%/℃ |
| Voltage Temperature Coefficient | -0.25%/℃ |
| Current Temperature Coefficient | +0.04%/℃ |
