Trina 415-435W DUAL GLASS TSM-DEG9R.28 Solar Panels
- Category: Trina Solar Panels
- Features
Product Description

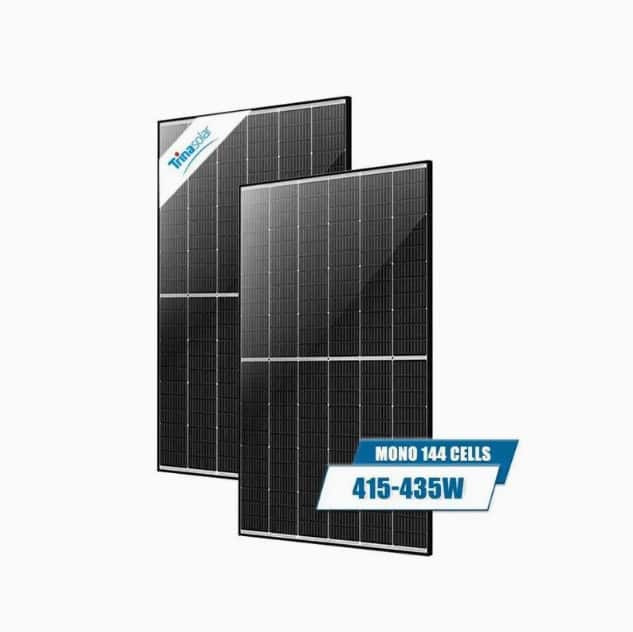

Trina 415-435W DUAL GLASS TSM-DEG9R.28 Solar Panels
Trina TSM-DEG9R.28 415–435W Dual Glass Solar Panel is a compact and high-efficiency monocrystalline module designed for residential and commercial rooftop applications. With up to 435W output and 21.8% module efficiency, it delivers high power generation even where installation space is limited.
Featuring multi-busbar technology, high-density interconnect technology, and dual-glass construction, the module offers excellent energy performance and long-term reliability. Its compact 1762 × 1134 mm size and 21.8 kg weight also make it easy to handle, transport, and install.
Product Features
- 415–435W Power Output – Up to 435W maximum power and 21.8% module efficiency.
- Dual Glass Design – Durable glass-glass construction provides enhanced protection and long-term reliability.
- Multi-Busbar Technology – Improves light trapping, current collection, and electrical performance.
- High-Density Interconnect – Delivers higher power output within a compact module footprint.
- Compact & Lightweight – 1762 × 1134 × 30 mm dimensions and 21.8 kg weight simplify rooftop installation.
- High Reliability – Designed to resist PID and harsh conditions including salt, ammonia, sand, heat, and humidity.
- Strong Mechanical Load – Supports up to 5400 Pa front load and 4000 Pa rear load.
- Wide Compatibility – Compatible with mainstream optimizers, inverters, and mounting systems.
- Long-Term Warranty – 15-year product workmanship warranty and 30-year power warranty.
Specifications
Electrical Specifications – STC
| Specification | 415W | 420W | 425W | 430W | 435W |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 415 W | 420 W | 425 W | 430 W | 435 W |
| Module Efficiency | 20.8% | 21.0% | 21.3% | 21.5% | 21.8% |
| Voltage at Pmax (Vmp) | 41.0 V | 41.3 V | 41.5 V | 41.8 V | 42.0 V |
| Current at Pmax (Imp) | 10.11 A | 10.17 A | 10.24 A | 10.30 A | 10.36 A |
| Open-Circuit Voltage (Voc) | 49.4 V | 49.7 V | 49.9 V | 50.3 V | 50.6 V |
| Short-Circuit Current (Isc) | 10.64 A | 10.69 A | 10.74 A | 10.81 A | 10.86 A |
| Power Tolerance | 0 to +5 W | 0 to +5 W | 0 to +5 W | 0 to +5 W | 0 to +5 W |
Electrical Specifications – NOCT
| Specification | 415W | 420W | 425W | 430W | 435W |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 313 W | 317 W | 320 W | 325 W | 328 W |
| Vmp | 38.5 V | 38.7 V | 39.0 V | 39.3 V | 39.5 V |
| Imp | 8.13 A | 8.17 A | 8.21 A | 8.27 A | 8.30 A |
| Voc | 46.5 V | 46.8 V | 46.9 V | 47.3 V | 47.6 V |
| Isc | 8.58 A | 8.61 A | 8.65 A | 8.71 A | 8.75 A |
Mechanical Specifications
| Item | Specification |
|---|---|
| Module Type | Dual Glass Monocrystalline |
| Solar Cell | Monocrystalline |
| Number of Cells | 144 |
| Module Dimensions | 1762 × 1134 × 30 mm |
| Weight | 21.8 kg |
| Front Glass | 1.6 mm, high-transmission, AR-coated heat-strengthened glass |
| Back Glass | 1.6 mm, heat-strengthened glass |
| Encapsulant | EVA / POE |
| Frame | 30 mm anodized aluminum alloy, black |
| Junction Box | IP68 rated |
| Cable | Photovoltaic technology cable, 4.0 mm² |
| Connector | MC4 EVO2 / TS4* |
Operating & Safety Specifications
| Item | Specification |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 20A |
| NOCT | 43 ± 2°C |
| Temperature Coefficient of Pmax | -0.34%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Isc | +0.04%/°C |
| Front Mechanical Load | Up to 5400 Pa |
| Rear Mechanical Load | Up to 4000 Pa |
| First-Year Degradation | 2% |
| Annual Power Attenuation | 0.45% |
| Product Warranty | 15 years |
| Power Warranty | 30 years |
