Product Description

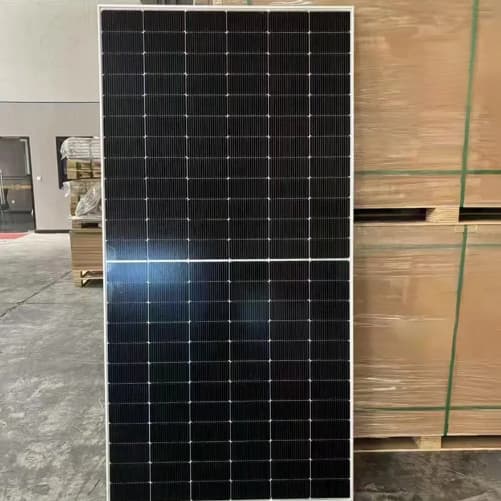

TSM-DE19 Vertex Series Monocrystalline Solar Module

The Trina Solar Vertex TSM-DE19 530-550W Tallmax Solar Panel is a high-power monocrystalline photovoltaic module designed for utility-scale solar projects, commercial rooftops, and large-scale renewable energy applications. Based on Trina Solar’s advanced 210mm silicon wafer technology, multi-busbar (MBB) design, and high-density interconnection technology, the module delivers outstanding power output, improved energy yield, and reduced balance-of-system costs.

With a power range of 530W to 550W and module efficiency up to 21.0%, the Vertex TSM-DE19 provides higher energy generation per square meter while maintaining excellent reliability under different environmental conditions. The optimized 110-cell layout (equivalent to 144 half-cut cell configuration) reduces internal resistance and improves current collection efficiency.

The framed module features a durable anodized aluminum alloy frame, high-transmission tempered glass, IP68-rated junction box, and enhanced mechanical strength, making it suitable for demanding outdoor installations. With excellent low-light performance, improved temperature characteristics, and long-term power stability, the Trina Vertex DE19 series helps maximize return on investment throughout the system lifecycle.

Product Features

1. High Power Output up to 550W

Maximum power output up to 550W
Module efficiency up to 21.0%
Advanced high-density interconnection technology increases power generation capacity
Ideal for utility-scale solar farms and commercial PV projects

2. Advanced Multi-Busbar Technology

Equipped with multi-busbar cell technology
Improves light utilization and current collection efficiency
Reduces series resistance and enhances module reliability
Better performance under real-world operating conditions

3. Optimized 210mm Silicon Wafer Design
Large-area silicon wafer technology increases module power density
Higher energy output with fewer modules required
Helps reduce installation costs and balance-of-system (BOS) expenses

4. Excellent Reliability and Durability
Innovative cell cutting technology minimizes micro-cracks
Enhanced PID resistance improves long-term module stability
Strong mechanical structure supports:
Positive load up to 5400 Pa
Negative load up to 2400 Pa
Suitable for harsh outdoor environments

5. Superior Energy Yield Performance
Excellent low irradiance performance
Optimized Incident Angle Modifier (IAM) performance
Lower temperature coefficient:
Pmax: -0.34%/°C
Maintains higher energy output in hot climates

6. Long-Term Warranty Protection
12-year product workmanship warranty
25-year linear power warranty
First-year degradation: ≤2%
Annual degradation: ≤0.55%

Technical Specifications

Electrical Characteristics (STC)

Mechanical Specifications
